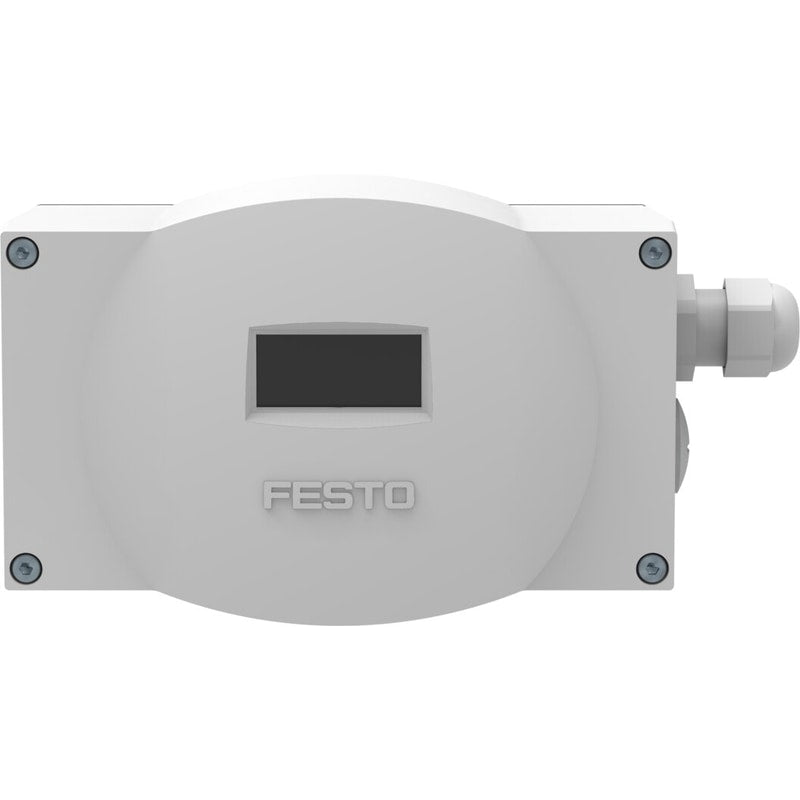

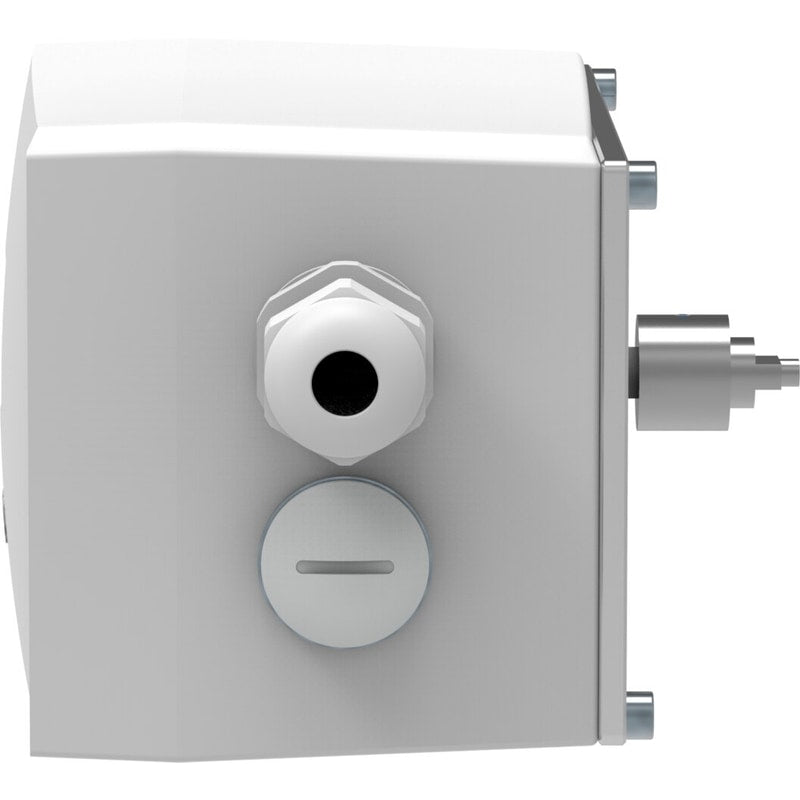

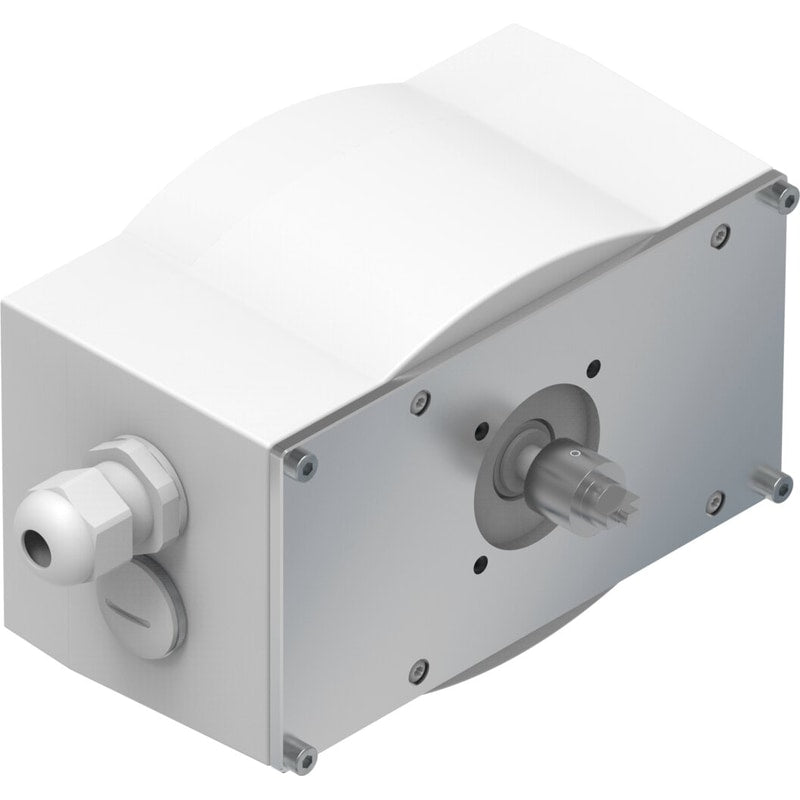

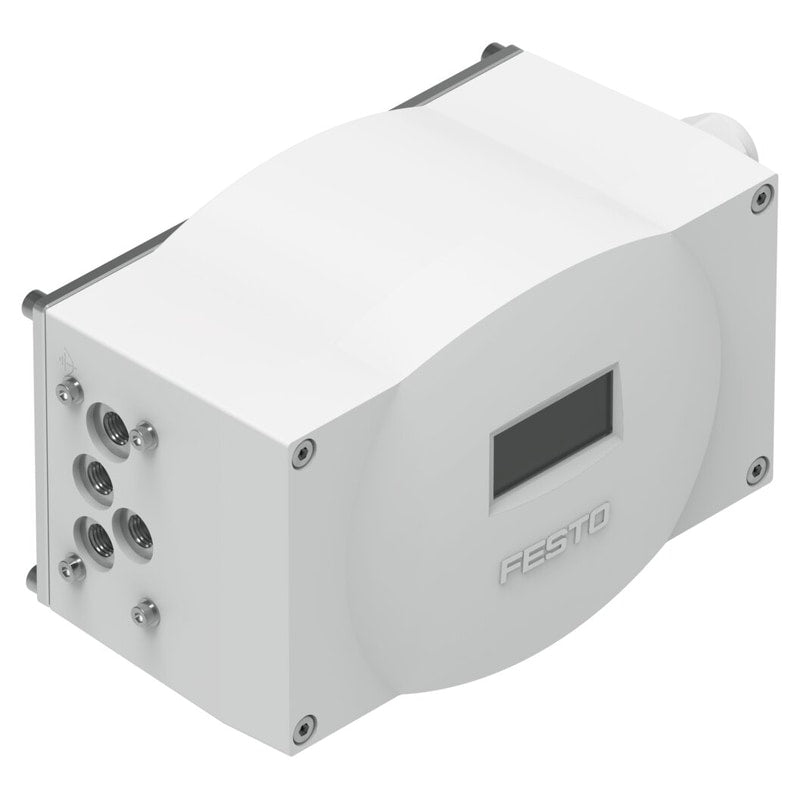

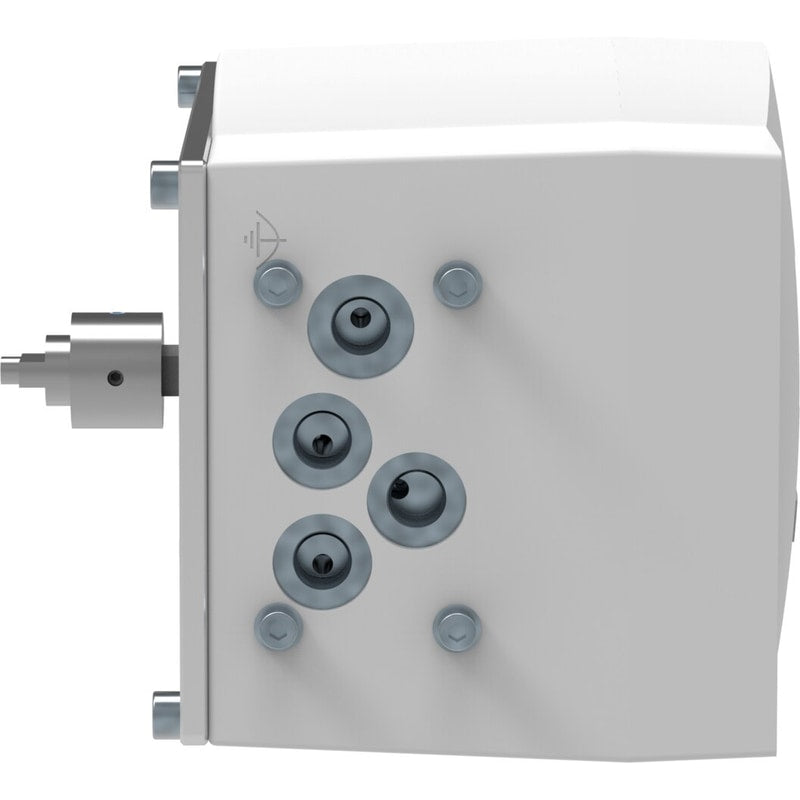

Positioner
CMSX-P-S-C-U-F1-D-130-C
3929314
GTIN 4052568273767
Vendor Festo
Regular price
$1,133.98
Unit price
CMSX-P-S-C-U-F1-D-130-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CMSX-P-S-C-U-F1-D-130-C
Regular price
$1,133.98
Unit price
CMSX-P-S-C-U-F1-D-130-C is backordered and will ship as soon as it is back in stock.
| Type code | CMSX |
|---|---|
| Reverse polarity protection | for operating voltage connections |
| Setting options | Via display and pushbuttons |
| Measuring principle of linear potentiometer | Potentiometer |
| Operating pressure | 3 bar ... 8 bar |
| DC operating voltage range | 21.6 V ... 26.4 V |
| Size of dead space | 0.5 % ... 10 % |
| Certification | RCM compliance mark |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 2 - moderate corrosion stress |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Degree of protection | IP65 |
| Ambient temperature | -5 °C ... 60 °C |
| Cable fitting | M20 x 1.5 for electrical connection 1 |
| Type of mounting | With accessories |
| Product weight | 970 g |
| Pneumatic connection | G1/8 |
| Standard nominal flow rate | 130 l/min |
| Note on materials | RoHS-compliant |
| Housing material | PC-reinforced |
| Seals material | NBR |
| Cable connection material | PA |
