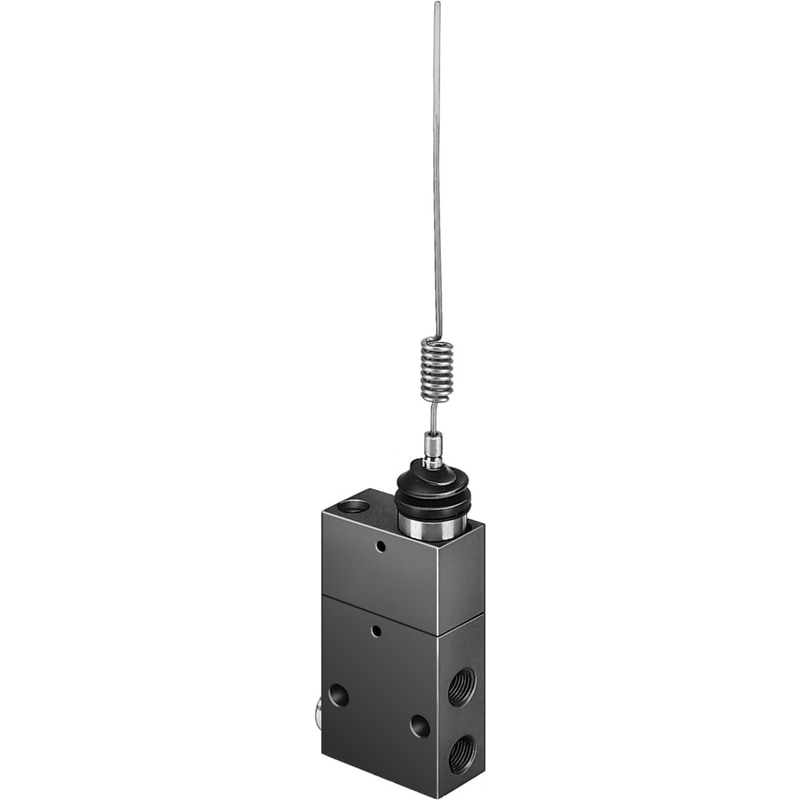

Whisker valve
FVSO-3-1/8
3877
GTIN 4052568110406
Vendor Festo
Regular price
$391.97
Unit price
FVSO-3-1/8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FVSO-3-1/8
Regular price
$391.97
Unit price
FVSO-3-1/8 is backordered and will ship as soon as it is back in stock.
whisker valve FVSO-3-1/8 Mechanically actuated valve, normally open, with particularly low actuating force, suitable for sensing of dissimilar workpieces or workpieces not precisely in position, or for different actuation levels. Actuation direction at right angle to whisker axis. Valve function=3/2 open, monostable, Type of actuation=mechanical, Standard nominal flow rate=175 l/min, Operating pressure=3,5 - 8 bar, Design structure=Poppet seat
| Valve function | 3/2 open, monostable |
|---|---|
| Type of actuation | mechanical |
| Standard nominal flow rate | 175 l/min |
| Operating pressure | 3.5 ... 8 bar |
| Design structure | Poppet seat |
| Type of reset | mechanical spring |
| Nominal size | 3.5 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Flow direction | non reversible |
