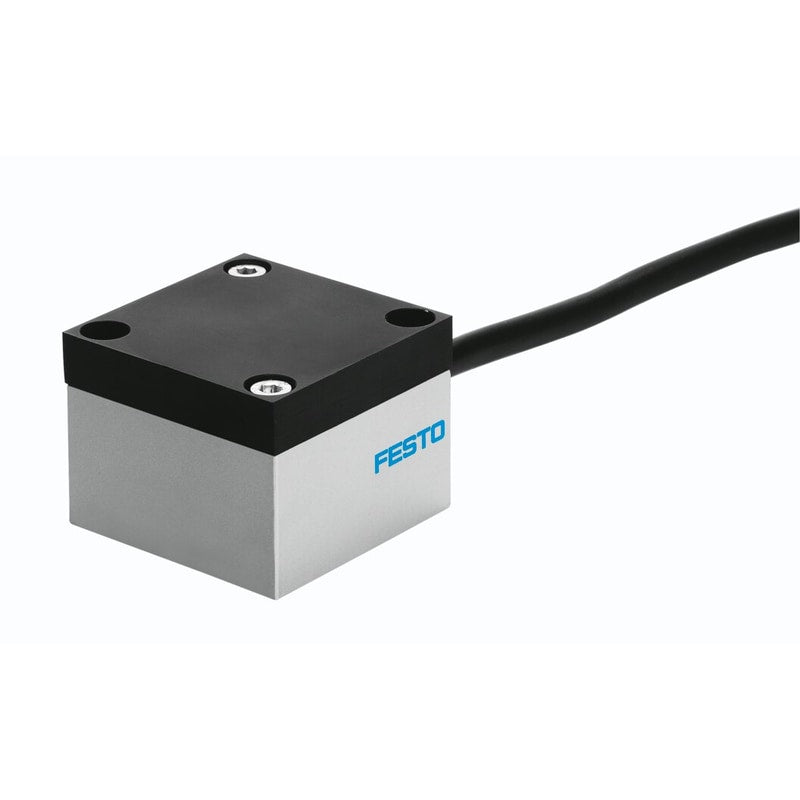

PE converter
PE-1000
3719
GTIN 4052568008444
Vendor Festo
Regular price
$380.23
Unit price
PE-1000 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PE-1000
Regular price
$380.23
Unit price
PE-1000 is backordered and will ship as soon as it is back in stock.
PE converter PE-1000 CE mark (see declaration of conformity)=to EU directive low-voltage devices, Measured variable=Relative pressure, Measurement method=Pneu./elect. pressure transducer, Operating pressure=0 - 1 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4]
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
|---|---|
| Measured variable | Relative pressure |
| Measurement method | Pneu./elect. pressure transducer |
| Operating pressure | 0 ... 1 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Ambient temperature | '-10 ... 50 °C |
| Switching element function | Changeover switch |
| Switch-on point | 0.05 bar |
| Switch-off point | 0.05 bar |
| Max. switching output voltage AC | 250 V |
| Max. switching output voltage DC | 250 V |
| Cable length | 1 m |
