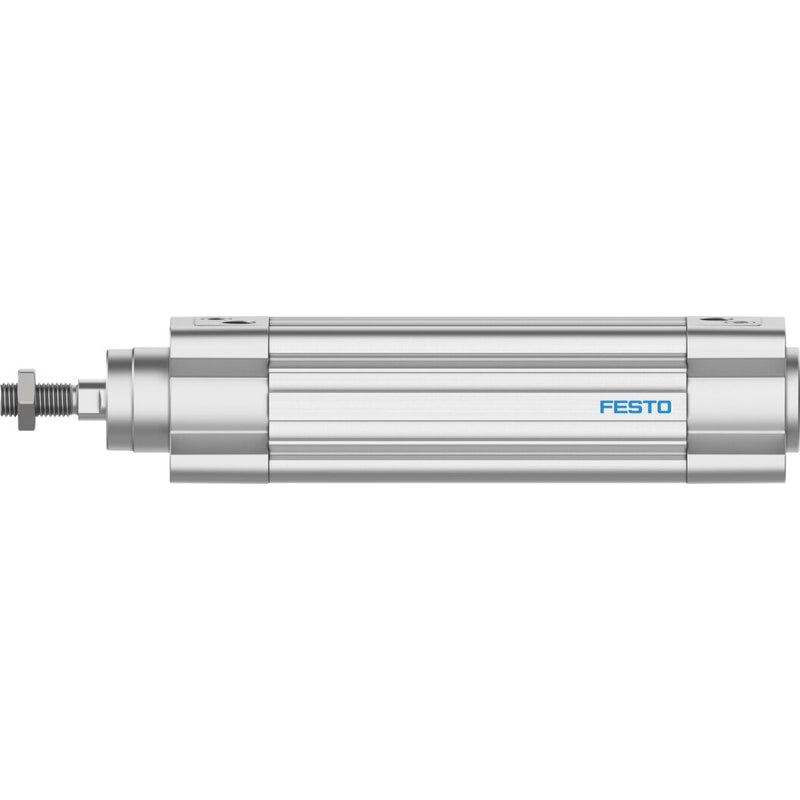

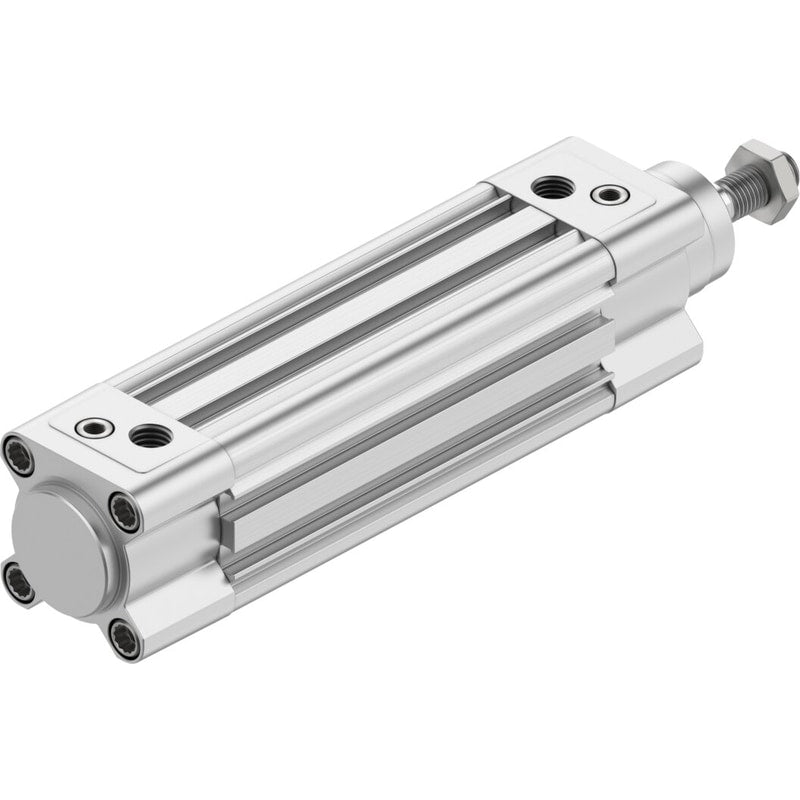

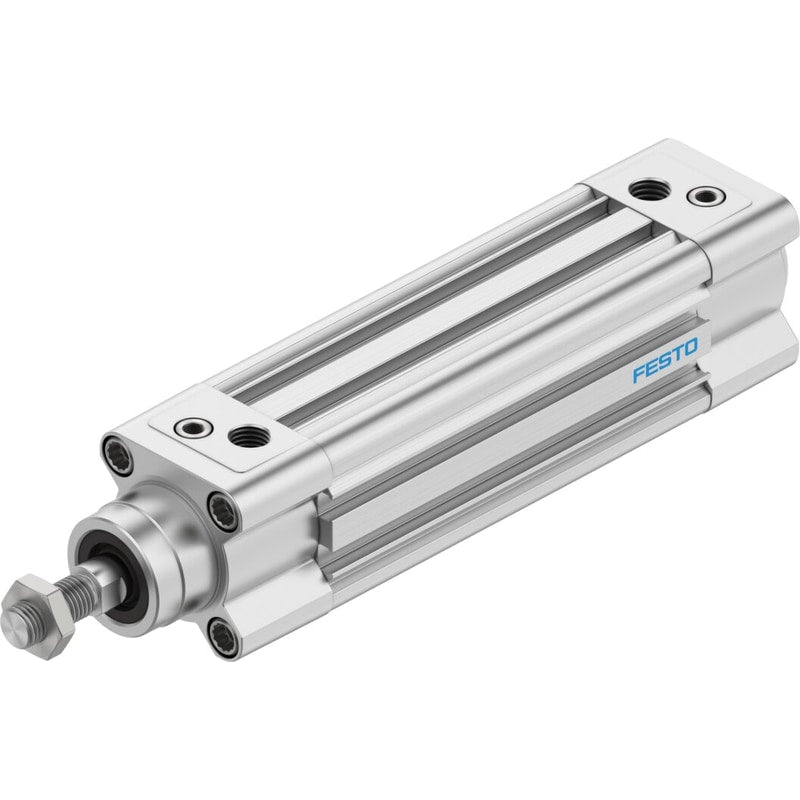

ISO cylinder
DSBC-32-80-D3-PPVA-N3
3656518
GTIN 4052568271886
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 32 mm
- Theoretical force at 6 bar, advancing
- 483 N
- Stroke
- 80 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends
Regular price
$210.69
Unit price
DSBC-32-80-D3-PPVA-N3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSBC-32-80-D3-PPVA-N3
Regular price
$210.69
Unit price
DSBC-32-80-D3-PPVA-N3 is backordered and will ship as soon as it is back in stock.
ISO cylinder DSBC-32-80-D3-PPVA-N3 With adjustable cushioning at both ends. Stroke=80 mm, Piston diameter=32 mm, Piston rod thread=M10x1,25, Cushioning=PPV: Pneumatic cushioning adjustable at both ends, Assembly position=Any
| Stroke | 80 mm |
|---|---|
| Piston diameter | 32 mm |
| Piston rod thread | M10x1,25 |
| Cushioning | PPV: Pneumatic cushioning adjustable at both ends |
| Assembly position | Any |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design structure | PistonPiston rodProfile barrel |
| Position detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Operating pressure | 0.6 ... 12 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
