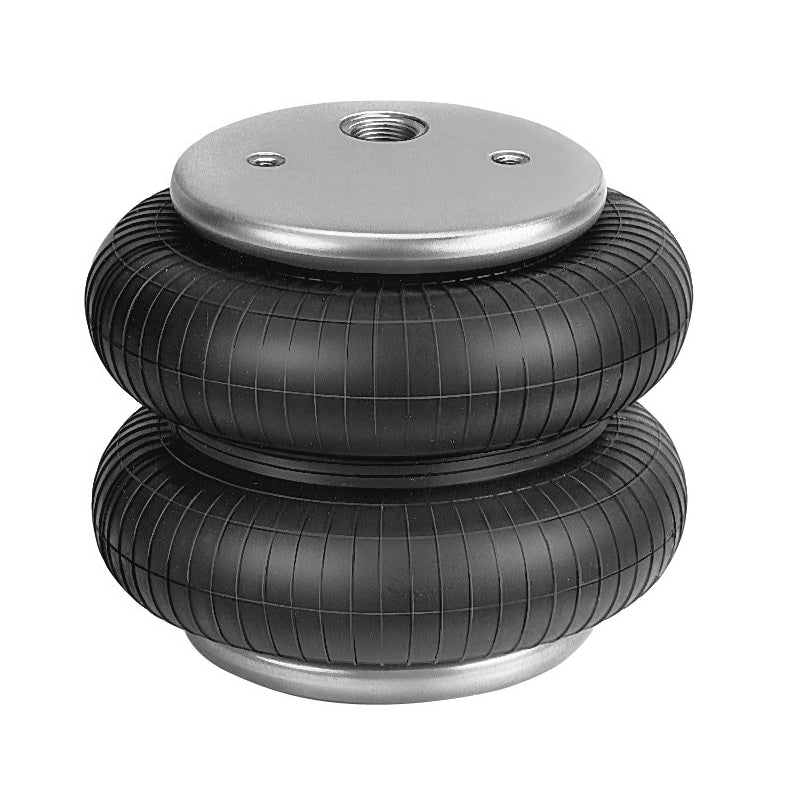

Bellow cylinder
EB-250-185
36493
GTIN 4052568010249
Vendor Festo
- Size
- 250
- Stroke
- 185 mm
- Pneumatic connection
- G3/4
Regular price
$885.20
Unit price
EB-250-185 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EB-250-185
Regular price
$885.20
Unit price
EB-250-185 is backordered and will ship as soon as it is back in stock.
bellows cylinder EB-250-185 Maintenance-free, no stick/slip effect. Size=250, Required installation diameter=265 mm, Stroke=185 mm, Max height when extended=275 mm, Max. tipping angle=25 deg
| Size | 250 |
|---|---|
| Required installation diameter | 265 mm |
| Stroke | 185 mm |
| Max height when extended | 275 mm |
| Max. tipping angle | 25 deg |
| Max. offset | 20 mm |
| Min. installation height | 75 mm |
| Mode of operation | single-acting |
| Operating pressure | 0 ... 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-40 ... 70 °C |
