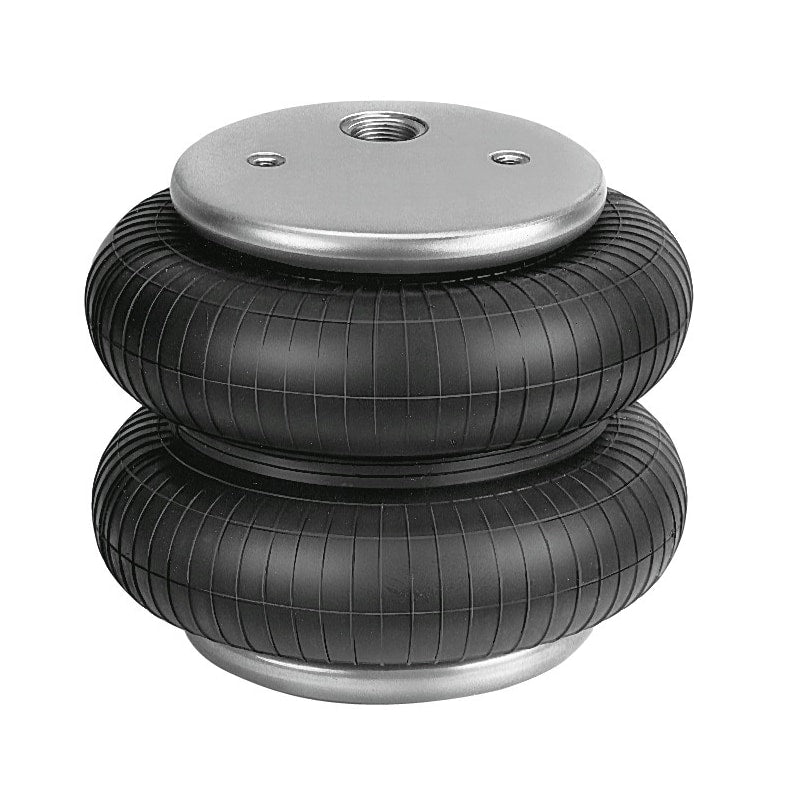

Bellow cylinder
EB-165-125
36491
GTIN 4052568115937
Vendor Festo
- Size
- 165
- Stroke
- 125 mm
- Pneumatic connection
- G1/4
Regular price
$752.33
Unit price
EB-165-125 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EB-165-125
Regular price
$752.33
Unit price
EB-165-125 is backordered and will ship as soon as it is back in stock.
bellows cylinder EB-165-125 Maintenance-free, no stick/slip effect. Size=165, Required installation diameter=180 mm, Stroke=125 mm, Max height when extended=200 mm, Max. tipping angle=30 deg
| Size | 165 |
|---|---|
| Required installation diameter | 180 mm |
| Stroke | 125 mm |
| Max height when extended | 200 mm |
| Max. tipping angle | 30 deg |
| Max. offset | 20 mm |
| Min. installation height | 72 mm |
| Mode of operation | single-acting |
| Operating pressure | 0 ... 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-40 ... 70 °C |
