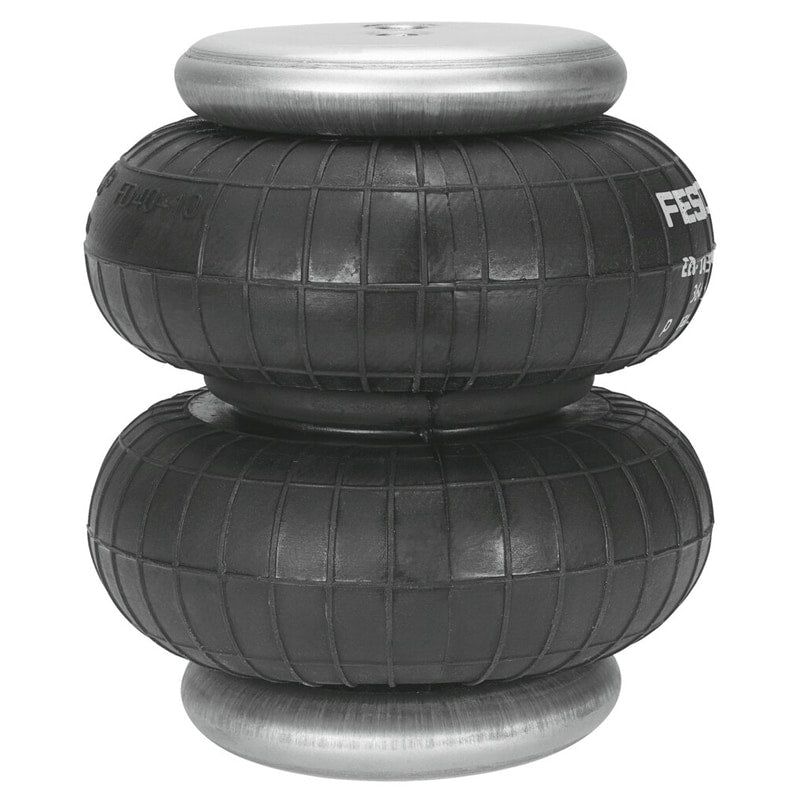

Bellow cylinder
EB-145-100
36490
GTIN 4052568115920
Vendor Festo
- Size
- 145
- Stroke
- 100 mm
- Pneumatic connection
- G1/8
Regular price
$670.73
Unit price
EB-145-100 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EB-145-100
Regular price
$670.73
Unit price
EB-145-100 is backordered and will ship as soon as it is back in stock.
bellows cylinder EB-145-100 Maintenance-free, no stick/slip effect. Size=145, Required installation diameter=160 mm, Stroke=100 mm, Max height when extended=170 mm, Max. tipping angle=30 deg
| Size | 145 |
|---|---|
| Required installation diameter | 160 mm |
| Stroke | 100 mm |
| Max height when extended | 170 mm |
| Max. tipping angle | 30 deg |
| Max. offset | 20 mm |
| Min. installation height | 70 mm |
| Mode of operation | single-acting |
| Operating pressure | 0 ... 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-40 ... 70 °C |
