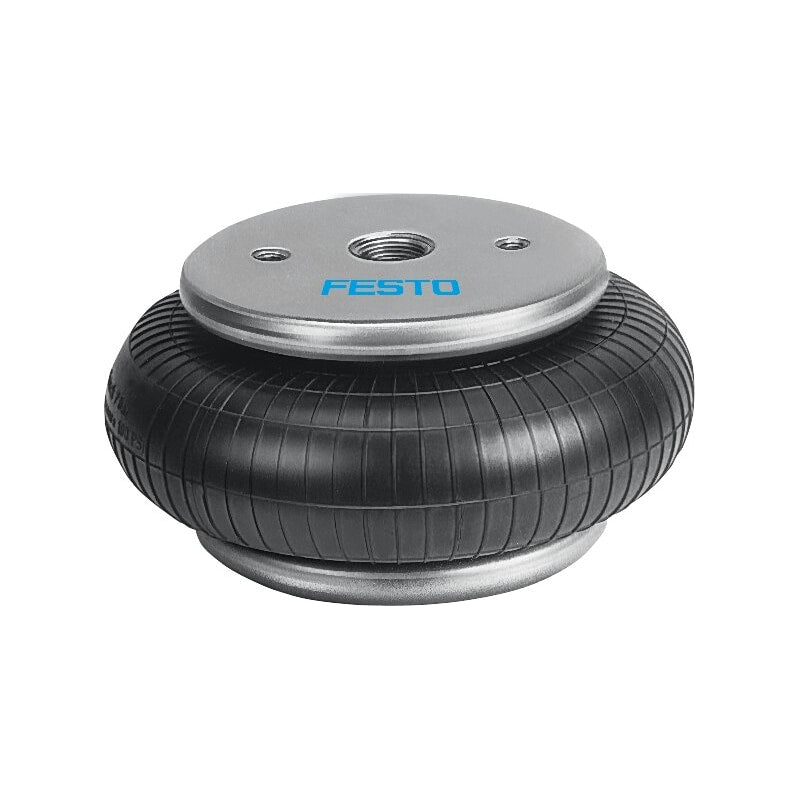

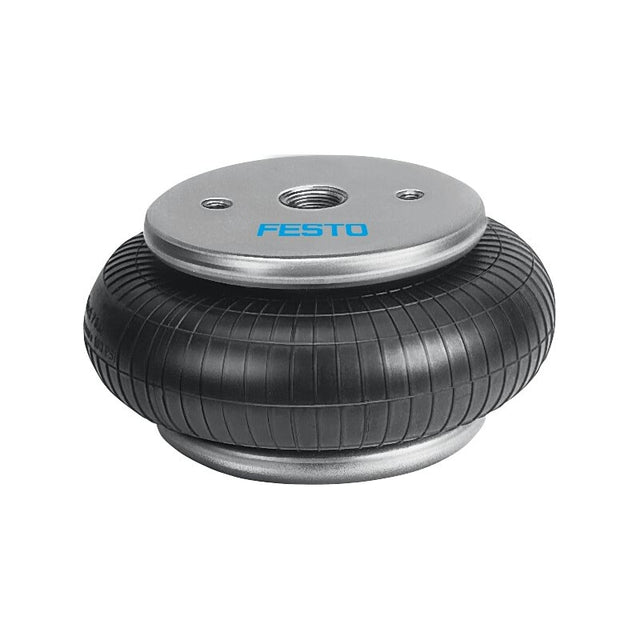

Bellow cylinder
EB-145-60
36486
GTIN 4052568115883
Vendor Festo
- Size
- 145
- Stroke
- 60 mm
- Pneumatic connection
- G1/8
Regular price
$528.36
Unit price
EB-145-60 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EB-145-60
Regular price
$528.36
Unit price
EB-145-60 is backordered and will ship as soon as it is back in stock.
bellows cylinder EB-145-60 Maintenance-free, no stick/slip effect. Size=145, Required installation diameter=160 mm, Stroke=60 mm, Max height when extended=110 mm, Max. tipping angle=20 deg
| Size | 145 |
|---|---|
| Required installation diameter | 160 mm |
| Stroke | 60 mm |
| Max height when extended | 110 mm |
| Max. tipping angle | 20 deg |
| Max. offset | 10 mm |
| Min. installation height | 50 mm |
| Mode of operation | single-acting |
| Operating pressure | 0 ... 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-40 ... 70 °C |
