Stem actuated valve
V-3-M5
3626
GTIN 4052568000455
Vendor Festo
Regular price
$81.37
Unit price
V-3-M5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
V-3-M5
Regular price
$81.37
Unit price
V-3-M5 is backordered and will ship as soon as it is back in stock.

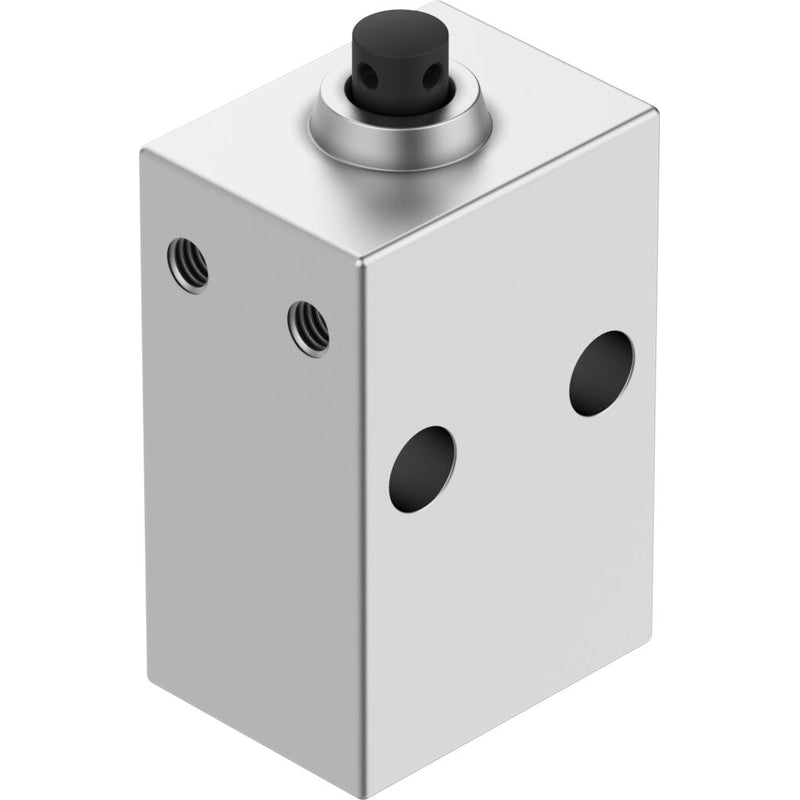

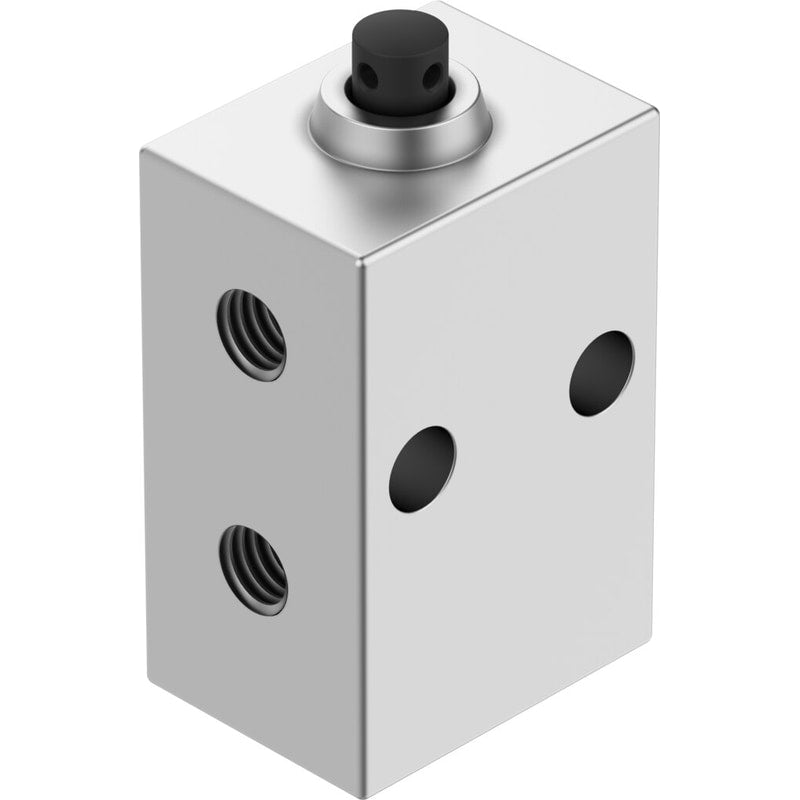

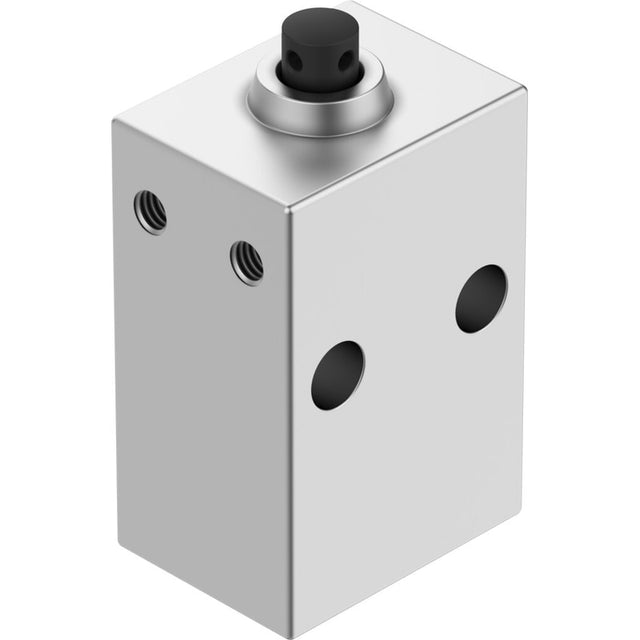

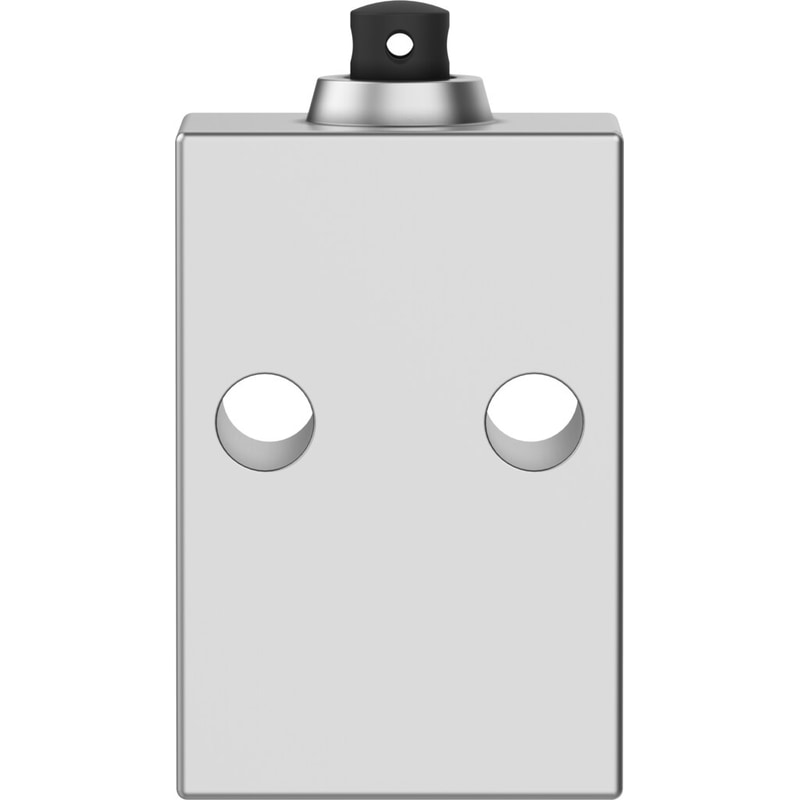

stem actuated valve V-3-M5 Normally closed. Valve function=3/2 closed, monostable, Type of actuation=mechanical, Standard nominal flow rate=80 l/min, Operating pressure=-0,95 - 8 bar, Design structure=Piston seat
| Valve function | 3/2 closed, monostable |
|---|---|
| Type of actuation | mechanical |
| Standard nominal flow rate | 80 l/min |
| Operating pressure | '-0.95 ... 8 bar |
| Design structure | Poppet seat |
| Nominal size | 2 mm |
| Type of piloting | direct |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Ambient temperature | '-10 ... 60 °C |
| Actuating force | 23 N |
| Product weight | 25 g |
| Mounting type | with through hole |
