Barb tubing fitting

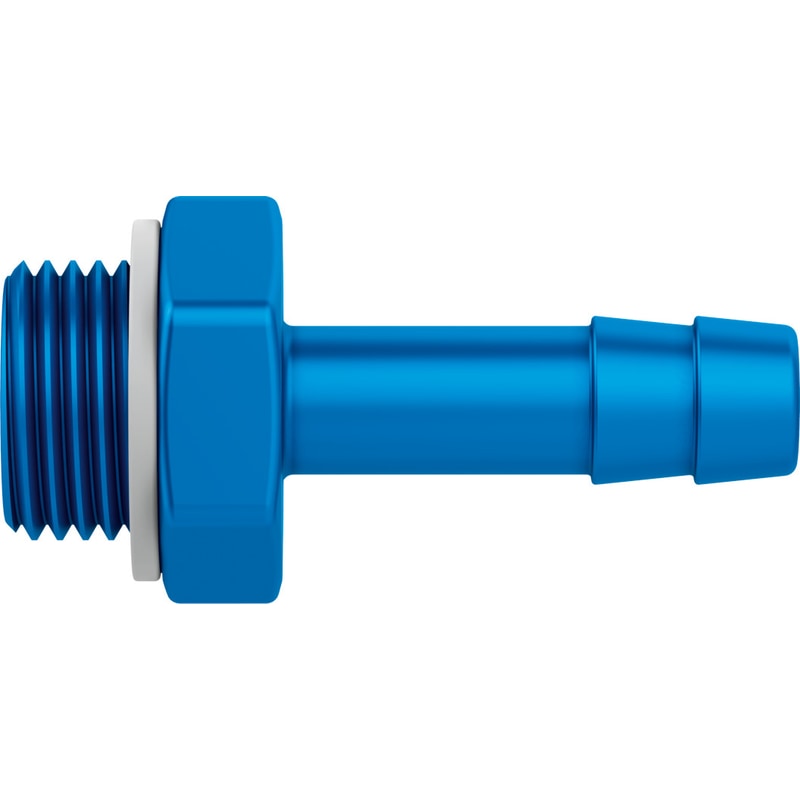

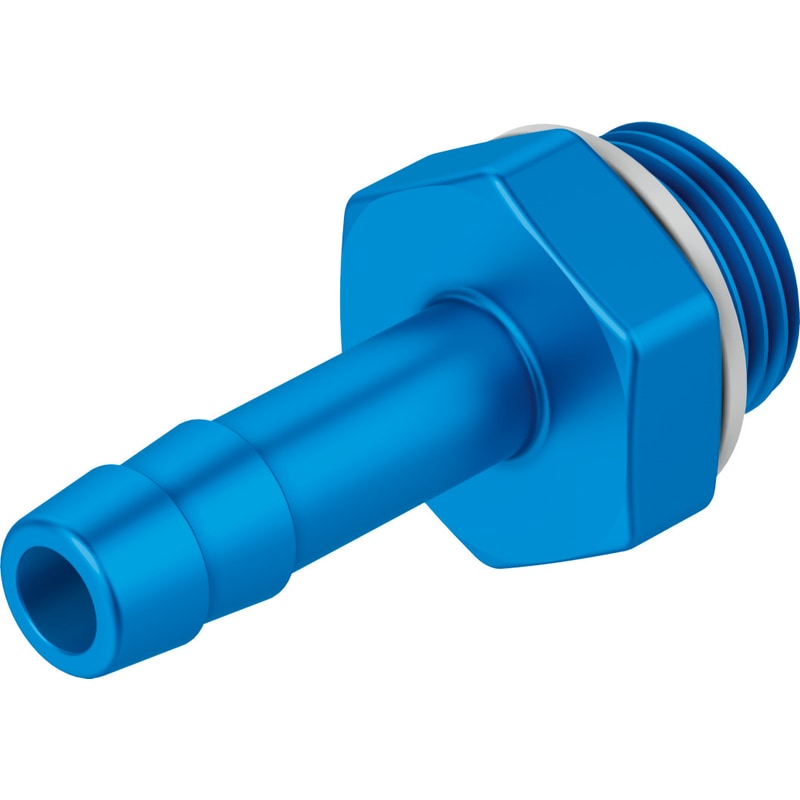

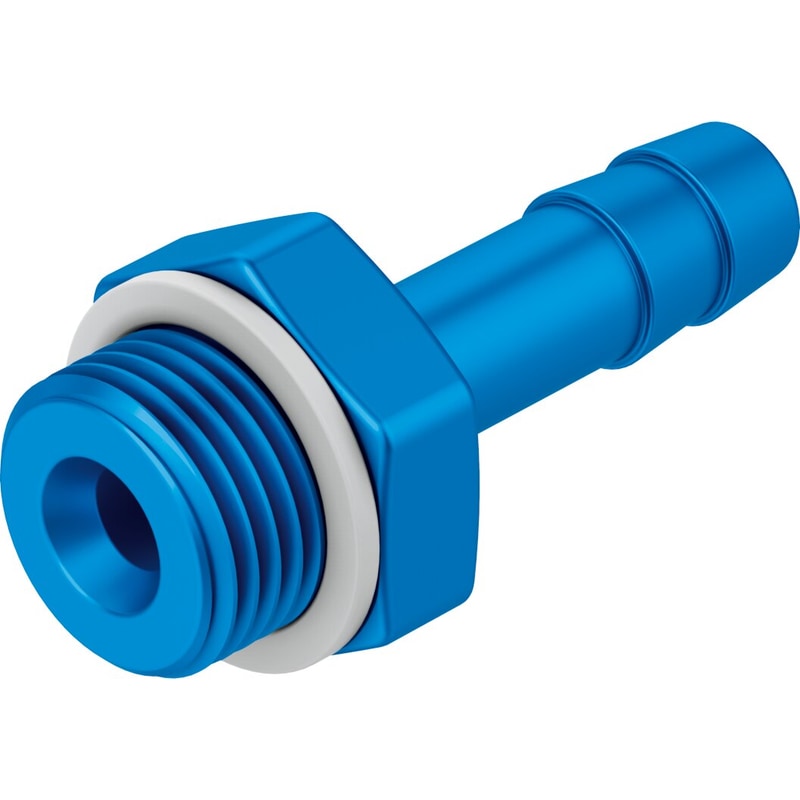

N-1/8-P-6 Barbed hose fitting
3605
GTIN 4052568018443
Vendor Festo
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- For tubing I.D. 6 mm
- Nominal width
- 4.5 mm
Regular price
$8.30
Unit price
N-1/8-P-6 Barbed hose fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
N-1/8-P-6 Barbed hose fitting
Regular price
$8.30
Unit price
N-1/8-P-6 Barbed hose fitting is backordered and will ship as soon as it is back in stock.
barbed hose fitting N-1/8-P-6 With sealing ring. Nominal size=4,5 mm, Type of seal on screw-in stud=Sealing ring, Operating pressure complete temperature range=-0,95 - 16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation)
| Fitting Type | Barbed Straight |
|---|---|
| Nominal size | 4.5 mm |
| Type of seal on screw-in stud | Sealing ring |
| Operating pressure complete temperature range | '-0.95 ... 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| connection 1 | Male thread G1/8 |
| connection 2 | For tubing outside diameter 8 mm |
| Materials note | Conforms to RoHS |
