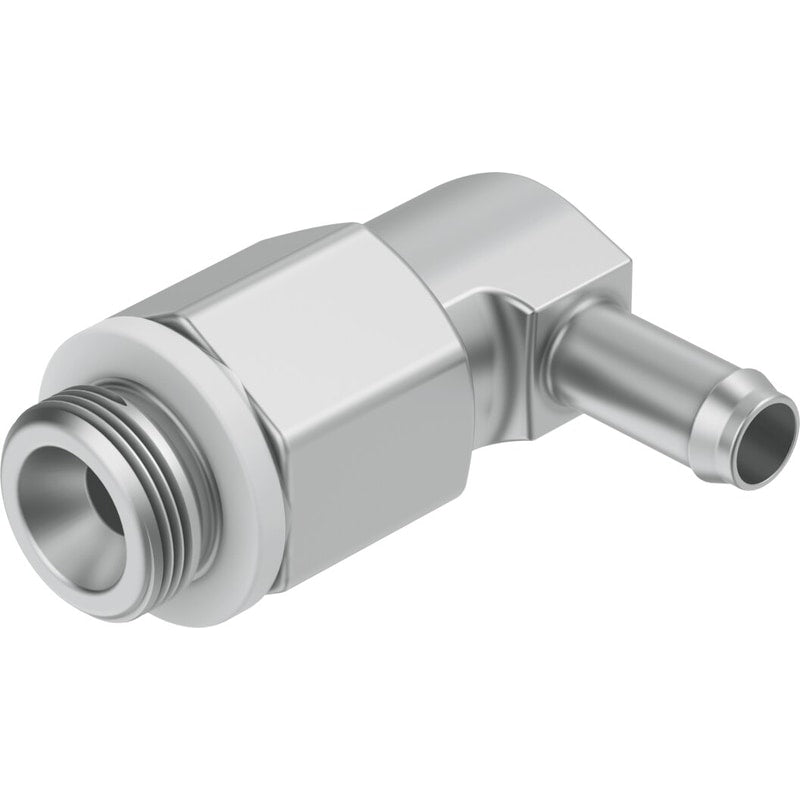

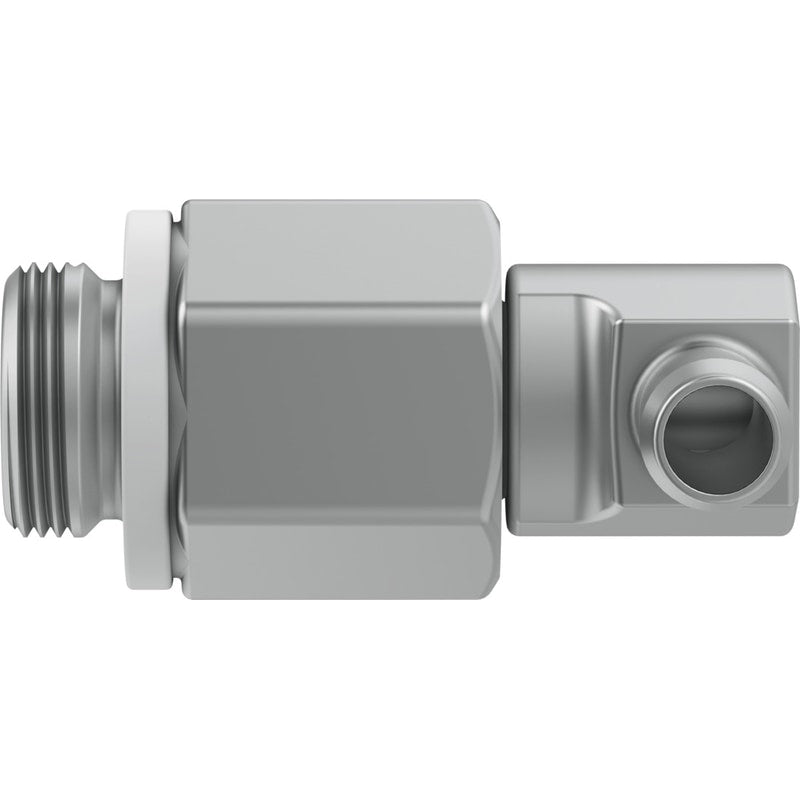

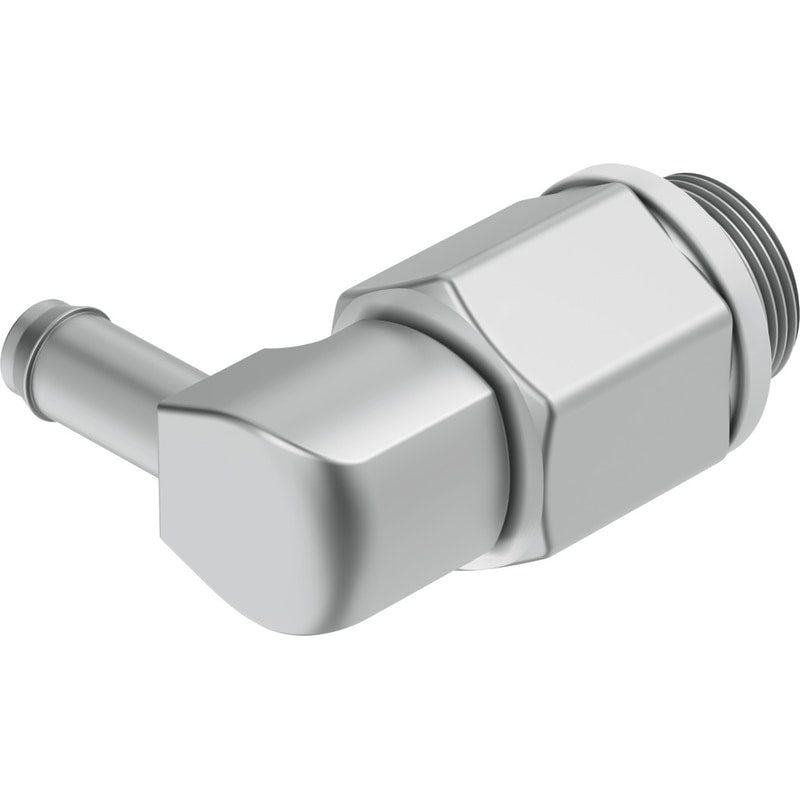

Barbed elbow fitting
LCNH-M5-PK-2
GTIN 4052568023300
Vendor Festo
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3 mm
- Nominal width
- 1.3 mm
- Ambient temperature
- 0 °C - 60 °C
LCNH-M5-PK-2 Barbed elbow fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LCNH-M5-PK-2
LCNH-M5-PK-2 Barbed elbow fitting is backordered and will ship as soon as it is back in stock.
barbed L-fitting LCNH-M5-PK-2 Rotatable, with extended housing, for plastic tubing PAN, PUN, PP, PU, PR, with sealing ring. Nominal size=1,3 mm, Type of seal on screw-in stud=Sealing ring, Operating pressure complete temperature range=-0,95 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation)
