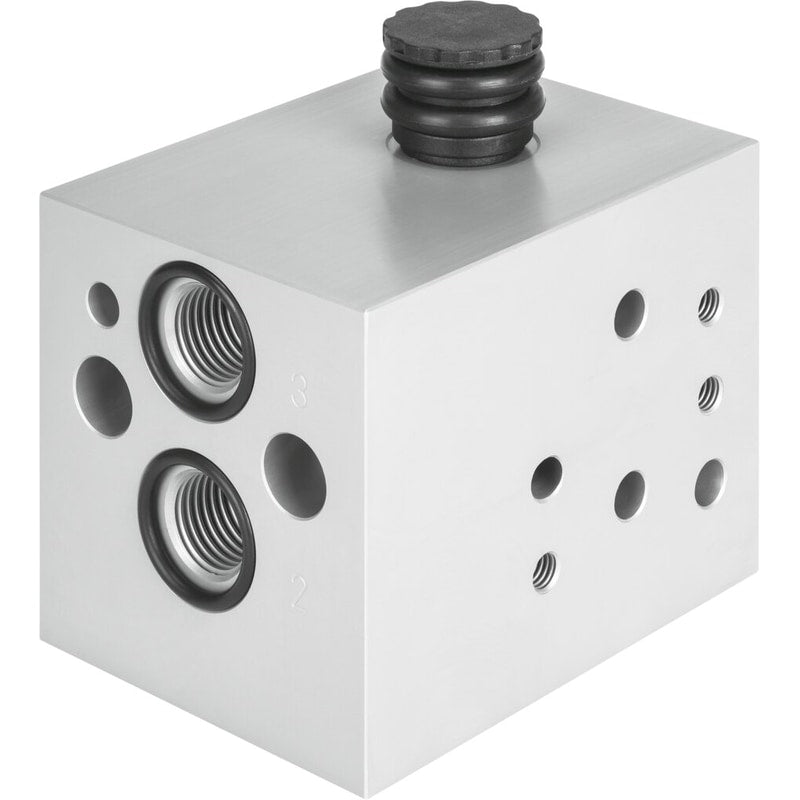

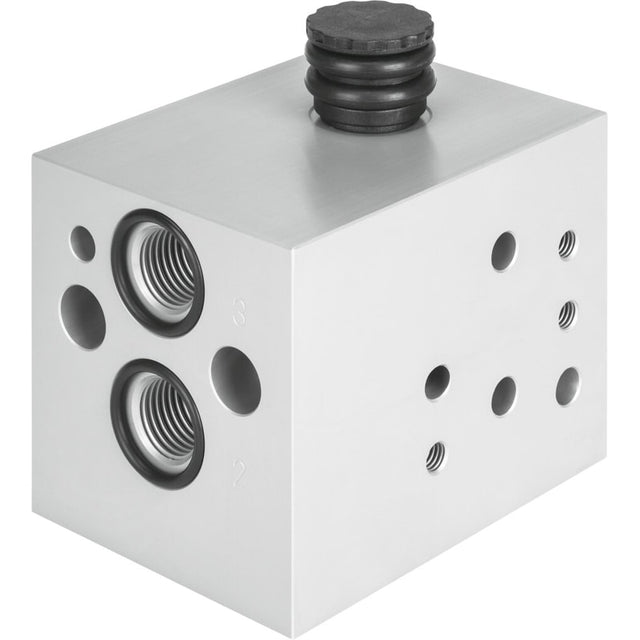

Manifold block
VABS-S7-RB-B-G14-V14-A
3580505
GTIN 4052568271497
Vendor Festo
Regular price
$311.14
Unit price
VABS-S7-RB-B-G14-V14-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABS-S7-RB-B-G14-V14-A
Regular price
$311.14
Unit price
VABS-S7-RB-B-G14-V14-A is backordered and will ship as soon as it is back in stock.
sub-base VABS-S7-RB-B-G14-V14-A Assembly position=Any, Pilot air supply=(* external, * Internal), Operating pressure=0 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC=4 - Very high corrosion stress
| Assembly position | Any |
|---|---|
| Pilot air supply | externalInternal |
| Operating pressure | 0 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Protection class | IP65 |
| Mounting type | with through hole |
| Pilot air port 12 | G1/4 |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | Flange 1/4NAMUR port pattern |
| Pneumatic connection, port 3 | G1/4 |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material of connecting plate | Aluminium (Ematal coated) |
