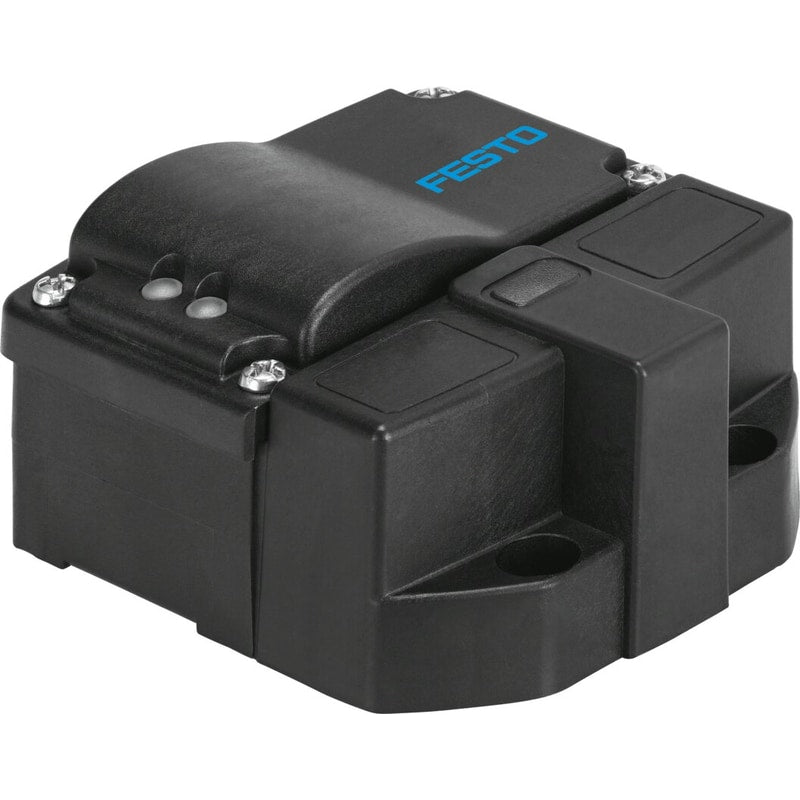

Limit switch box
SRBG-C1-N-20N-ZC-C2-C2-EX5
3568167
GTIN 4052568271428
Vendor Festo
- DC operating voltage range
- 8.2 V
- Switching element function
- N/C contact
- Cable fitting
- M20x1.5
Regular price
$239.83
Unit price
SRBG-C1-N-20N-ZC-C2-C2-EX5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SRBG-C1-N-20N-ZC-C2-C2-EX5
Regular price
$239.83
Unit price
SRBG-C1-N-20N-ZC-C2-C2-EX5 is backordered and will ship as soon as it is back in stock.
sensor box SRBG-C1-N-20N-ZC-C2-C2-EX5 Design=Angular, Based on the standard=(* EN 60947-5-6, * VDI/VDE 3845), Authorisation=(* RCM Mark, * c UL us (OL)), CE mark (see declaration of conformity)=(* to EU directive for EMC, * to EU directive explosion protection (ATEX)), ATEX category Gas=II 1G
| Design | Angular |
|---|---|
| Based on the standard | EN 60947-5-6VDI/VDE 3845 |
| Authorisation | RCM Markc UL us (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMCto EU directive explosion protection (ATEX)in accordance with EU RoHS directive |
| ATEX category Gas | II 1G |
| Explosion ignition protection type Gas | Ex ia IIC T1...T6 Ga |
| ATEX category Dust | II 1D |
| Explosion ignition protection type Dust | Ex ia IIIC T135°C Da |
| Explosion protection certification outside the EU | EPL Da (IEC-EX)EPL Ga (IEC-EX) |
| Explosion-proof ambient temperature | See ATEX certificateSee IECEx certificate |
| effective inductivity | 100 µH |
| effective capacity | 100 nF |
| Max. input parameters for intrinsically safe circuit | See IECEx certificateSee ATEX certificate |
