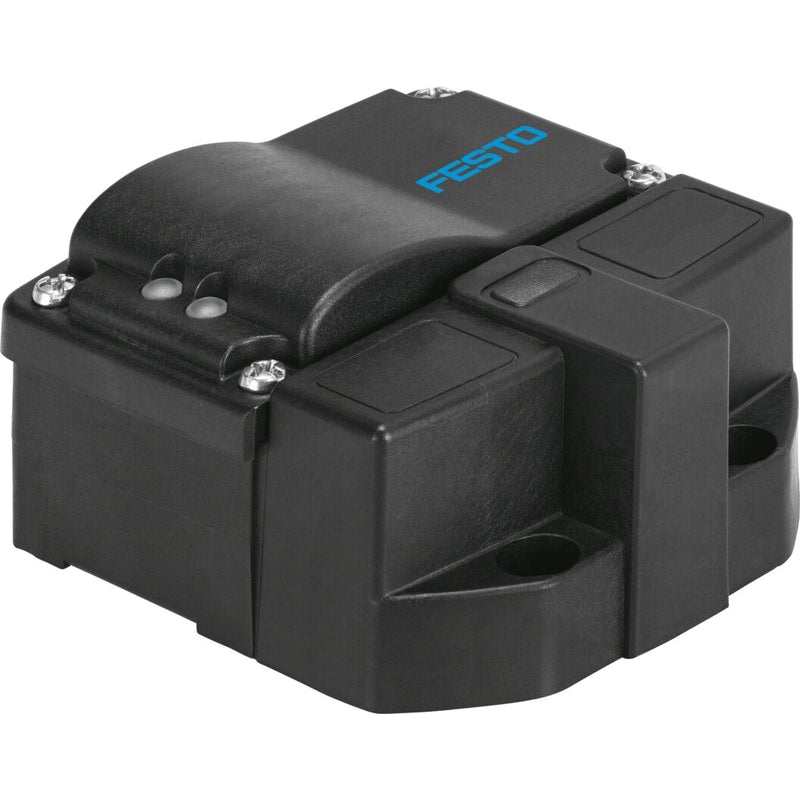

Limit switch box
SRBG-C1-N-1-P-C2-C2
3568165
GTIN 4052568271404
Vendor Festo
- DC operating voltage range
- 10 V - 30 V
- Switching element function
- N/O contact
- Cable fitting
- M20x1.5
Regular price
$241.92
Unit price
SRBG-C1-N-1-P-C2-C2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SRBG-C1-N-1-P-C2-C2
Regular price
$241.92
Unit price
SRBG-C1-N-1-P-C2-C2 is backordered and will ship as soon as it is back in stock.
sensor box SRBG-C1-N-1-P-C2-C2 Design=Angular, Based on the standard=(* EN 60947-5-2, * VDI/VDE 3845), Authorisation=(* RCM Mark, * c UL us (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Contains PWIS substances, * Conforms to RoHS)
| Design | Angular |
|---|---|
| Based on the standard | EN 60947-5-2VDI/VDE 3845 |
| Authorisation | RCM Markc UL us (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMCto EU directive explosion protection (ATEX)in accordance with EU RoHS directive |
| Explosion protection certification outside the EU | EPL Ga (IEC-EX) |
| Explosion-proof ambient temperature | See ATEX certificateSee IECEx certificate |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Measuring principle | Inductive |
| Ambient temperature | '-25 ... 70 °C |
| Switch output | PNP |
| Switching element function | Normally open contact |
| Max. switching frequency | 500 Hz |
| Max. output current DC | 100 mA |
