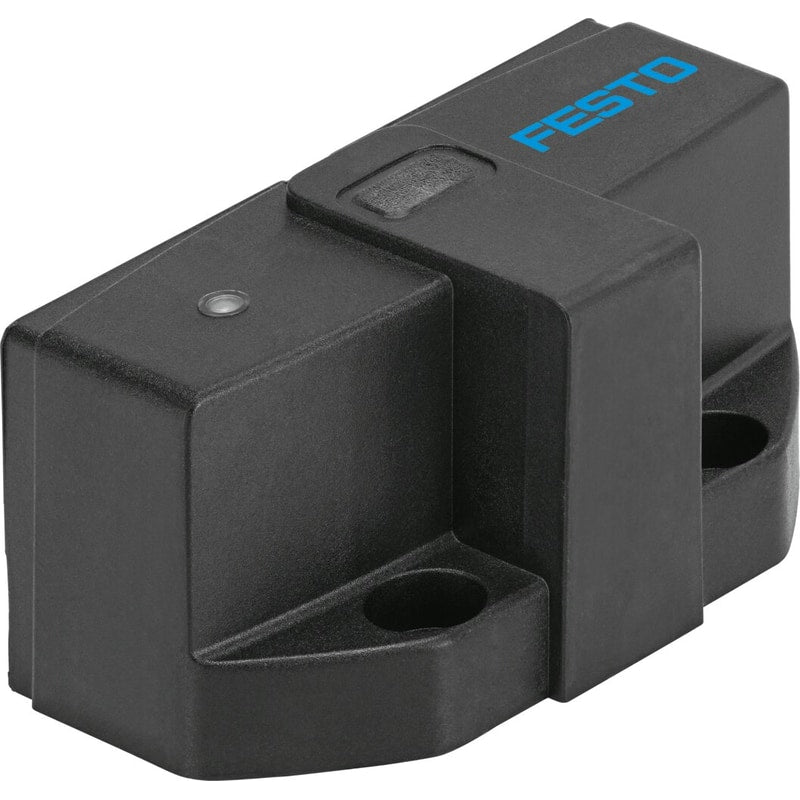

Limit switch box
SRBG-C1-N-1-ZU-M12
3568056
GTIN 4052568271381
Vendor Festo
- DC operating voltage range
- 6 V - 60 V
- Switching element function
- N/O contact
Regular price
$227.29
Unit price
SRBG-C1-N-1-ZU-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SRBG-C1-N-1-ZU-M12
Regular price
$227.29
Unit price
SRBG-C1-N-1-ZU-M12 is backordered and will ship as soon as it is back in stock.
sensor box SRBG-C1-N-1-ZU-M12 Design=Angular, Based on the standard=(* EN 60947-5-2, * VDI/VDE 3845), Authorisation=(* RCM Mark, * c UL us (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Contains PWIS substances, * Conforms to RoHS)
| Design | Angular |
|---|---|
| Based on the standard | EN 60947-5-2VDI/VDE 3845 |
| Authorisation | RCM Markc UL us (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMCto EU directive explosion protection (ATEX) |
| ATEX category Dust | II 1D |
| Explosion ignition protection type Dust | Ex ia IIIC T135°C Da |
| Explosion protection certification outside the EU | EPL Da (IEC-EX)EPL Ga (IEC-EX) |
| Explosion-proof ambient temperature | See ATEX certificateSee IECEx certificate |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Measuring principle | Inductive |
| Ambient temperature | '-25 ... 70 °C |
| Switch output | Non-contacting 2-wire |
| Switching element function | Normally open contact |
