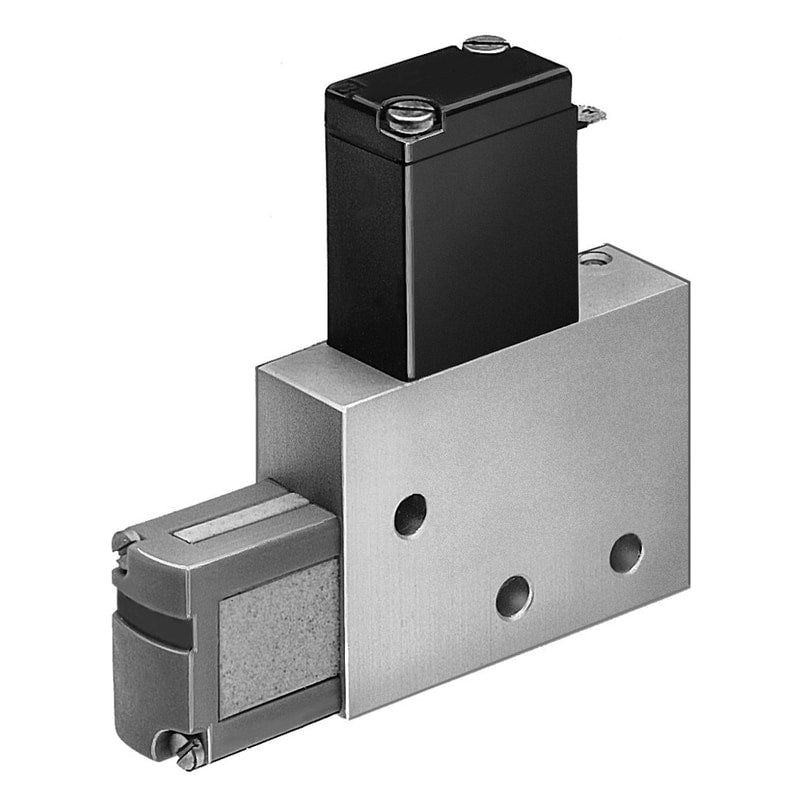

Vacuum generator
VAD-MYB-1/8
35553
GTIN 4052568115821
Vendor Festo
- Nominal width of Laval nozzle
- 0.7 mm
- Max. vacuum
- 85 %
- Operating pressure
- 1.5 bar - 8 bar
Regular price
$384.82
Unit price
VAD-MYB-1/8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAD-MYB-1/8
Regular price
$384.82
Unit price
VAD-MYB-1/8 is backordered and will ship as soon as it is back in stock.

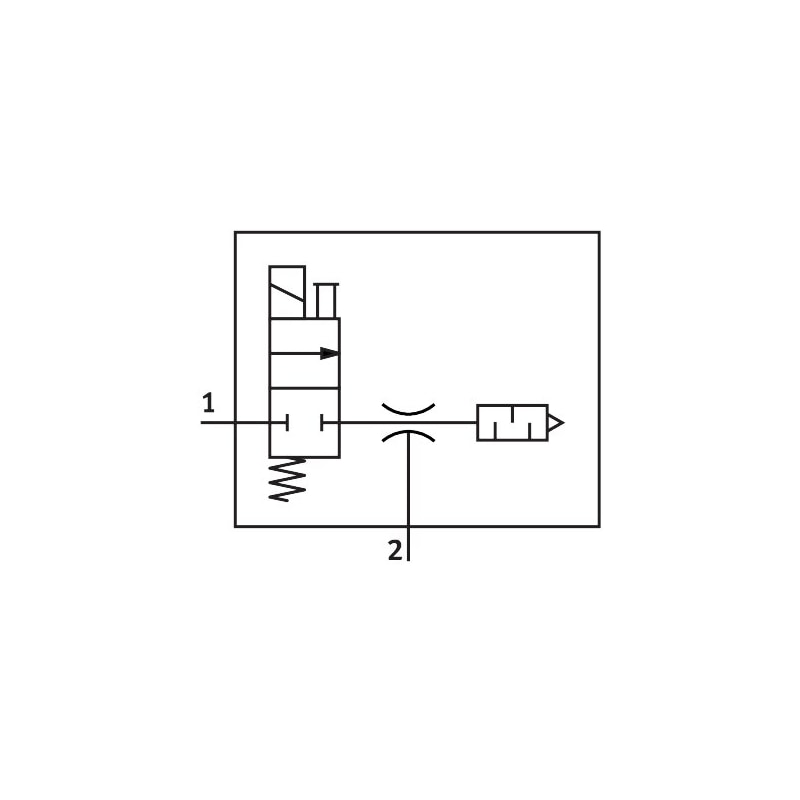

vacuum generator VAD-MYB-1/8 With integrated solenoid valve Nominal size, Laval nozzle=0,7 mm, Assembly position=Any, Ejector characteristic=High vacuum, Integrated function=Electrical on-off valve, Design structure=T-shaped
| Nominal size, Laval nozzle | 0.7 mm |
|---|---|
| Assembly position | Any |
| Ejector characteristic | High vacuum |
| Integrated function | Electrical on-off valve |
| Design structure | T-shaped |
| Operating pressure | 1.5 ... 8 bar |
| Max. vacuum | 0.85 |
| Duty cycle | 1 |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Medium temperature | 0 ... 40 °C |
| Protection class | IP65 |
