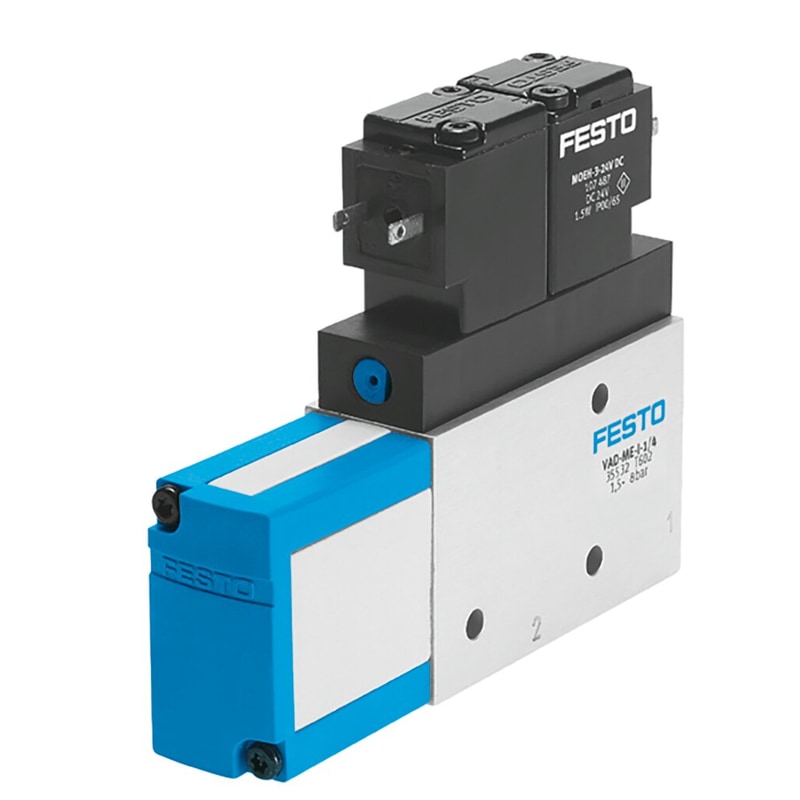

Vacuum generator
VAD-ME-I-3/8
35533
GTIN 4052568115791
Vendor Festo
- Nominal width of Laval nozzle
- 2 mm
- Max. vacuum
- 90 %
- Operating pressure
- 1.5 bar - 8 bar
Regular price
$669.46
Unit price
VAD-ME-I-3/8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAD-ME-I-3/8
Regular price
$669.46
Unit price
VAD-ME-I-3/8 is backordered and will ship as soon as it is back in stock.

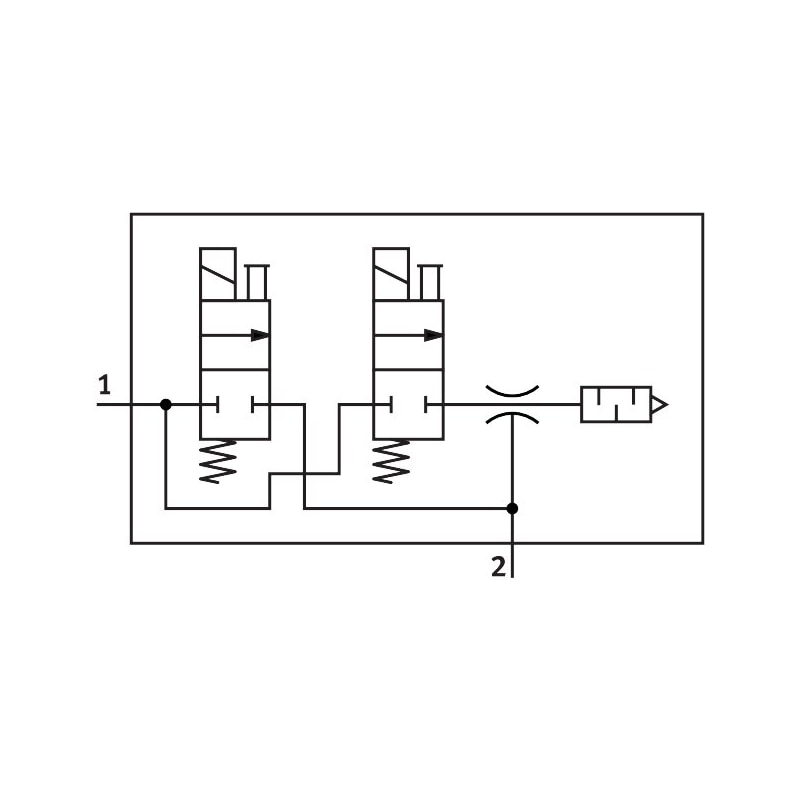

vacuum generator VAD-ME-I-3/8 With integrated solenoid valve for vacuum On/Off and ejector pulse Nominal size, Laval nozzle=2 mm, Assembly position=Any, Ejector characteristic=High vacuum, Integrated function=(* Ejector pulse valve, electrical, * Electrical on-off valve), Design structure=T-shaped
| Nominal size, Laval nozzle | 2 mm |
|---|---|
| Assembly position | Any |
| Ejector characteristic | High vacuum |
| Integrated function | Ejector pulse valve, electricalElectrical on-off valve |
| Design structure | T-shaped |
| Operating pressure | 1.5 ... 8 bar |
| Max. vacuum | 0.9 |
| Duty cycle | 1 |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Medium temperature | 0 ... 50 °C |
| Protection class | IP65 |
| Ambient temperature | 0 ... 50 °C |
