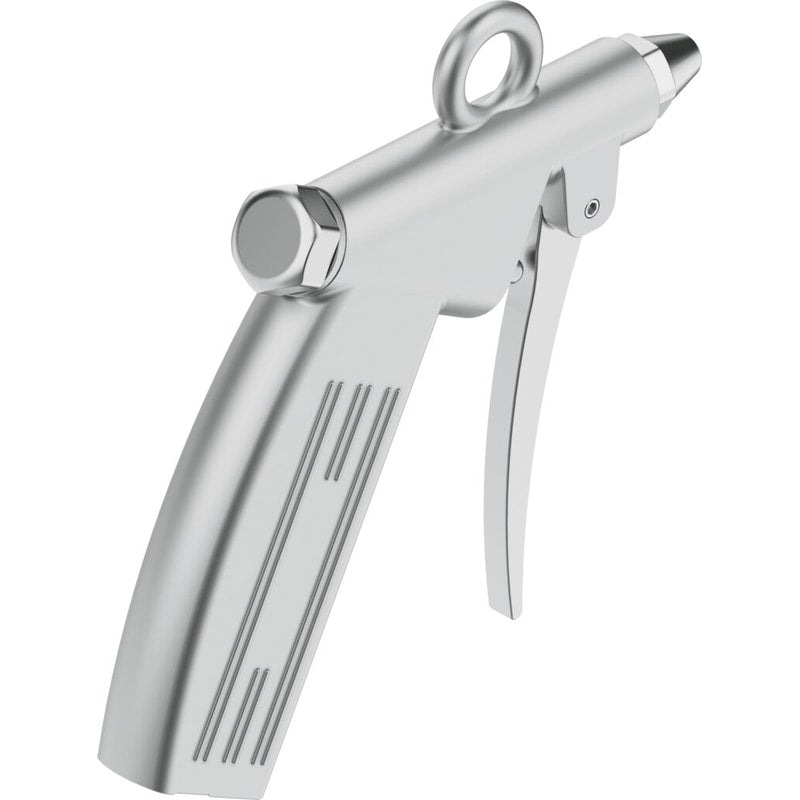

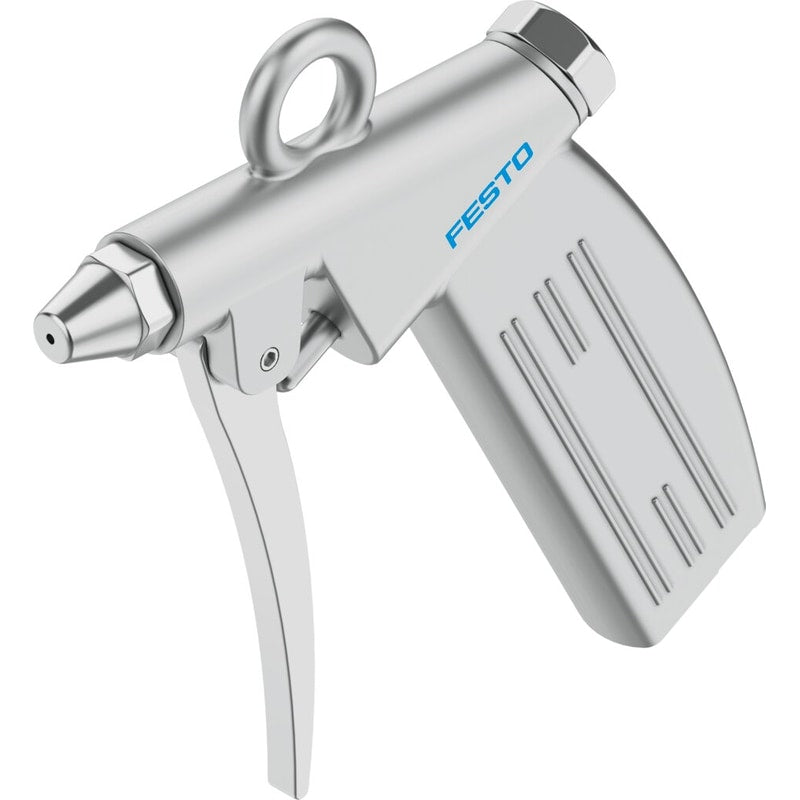

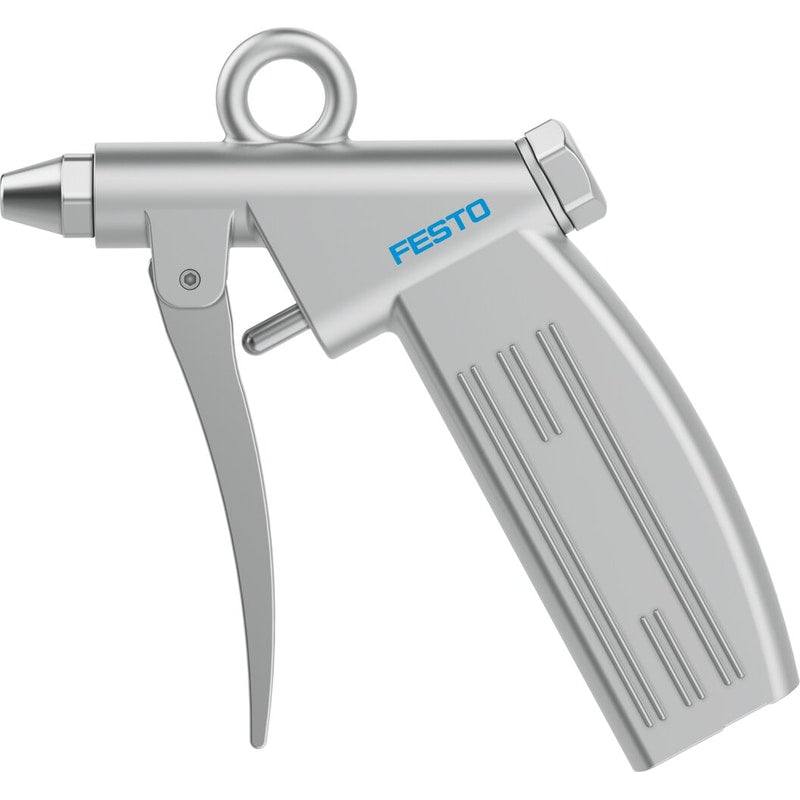

Low consumption air gun
LSP-1/4-D
35528
GTIN 4052568023287
Vendor Festo
- Exhaust air function
- Metered blowing
- Pneumatic connection
- Internal thread G1/4
- Housing material
- Die-cast aluminum, coated
Regular price
$40.30
Unit price
LSP-1/4-D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LSP-1/4-D
Regular price
$40.30
Unit price
LSP-1/4-D is backordered and will ship as soon as it is back in stock.
low consumption air gun LSP-1/4-D Die-cast metal design. Exhaust-air function=Air jet can be dosed, Operating pressure=0 - 10 bar, Flow rate to atmosphere=120 l/min, Standard nominal flow rate=120 l/min, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-]
| Exhaust-air function | Air jet can be dosed |
|---|---|
| Operating pressure | 0 ... 10 bar |
| Flow rate to atmosphere | 120 l/min |
| Standard nominal flow rate | 120 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Sound pressure level | 90 dB(A) |
| Ambient temperature | '-10 ... 50 °C |
| Product weight | 240 g |
| Pneumatic connection | Female thread 1/4 |
| Materials note | Conforms to RoHS |
| Material housing | Wrought Aluminium alloy |
