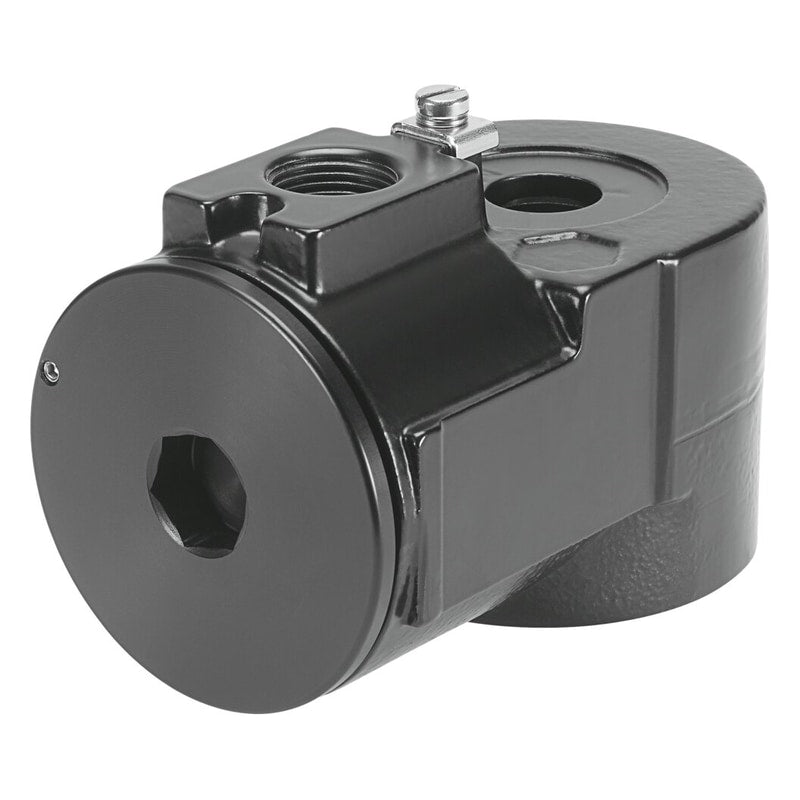

Solenoid coil
VACC-S18-70-K5-3-U2D
3546949
GTIN 4052568271343
Vendor Festo
- Electrical connection
- Terminal box, cable entry thread NPT1/2
- Coil characteristics
- 220 V DC: 7.0 W
- Degree of protection
- IP65
Regular price
$622.28
Unit price
VACC-S18-70-K5-3-U2D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VACC-S18-70-K5-3-U2D
Regular price
$622.28
Unit price
VACC-S18-70-K5-3-U2D is backordered and will ship as soon as it is back in stock.
solenoid coil VACC-S18-70-K5-3-U2D Type of actuation=electrical, Assembly position=Any, Switching position indicator=No, Duty cycle=100%, Insulation class=H
| Type of actuation | electrical |
|---|---|
| Assembly position | Any |
| Switching position indicator | No |
| Duty cycle | 1 |
| Insulation class | H |
| Characteristic coil data | 220 V DC: 7 W |
| Permissible voltage fluctuation | '-15 % / +10 % |
| Explosion protection certification outside the EU | Class I, Div. 2 (CA)Class I, Div. 2 (US) |
| Explosion-proof ambient temperature | T4A,120°C:-25°C<=Ta<=+80°C |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Protection class | IP65 |
| Product weight | 1,700 g |
