VASB-8-M5-NBR
35410
Vendor Festo
Regular price
$15.14
Unit price
VASB-8-M5-NBR is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VASB-8-M5-NBR
Regular price
$15.14
Unit price
VASB-8-M5-NBR is backordered and will ship as soon as it is back in stock.

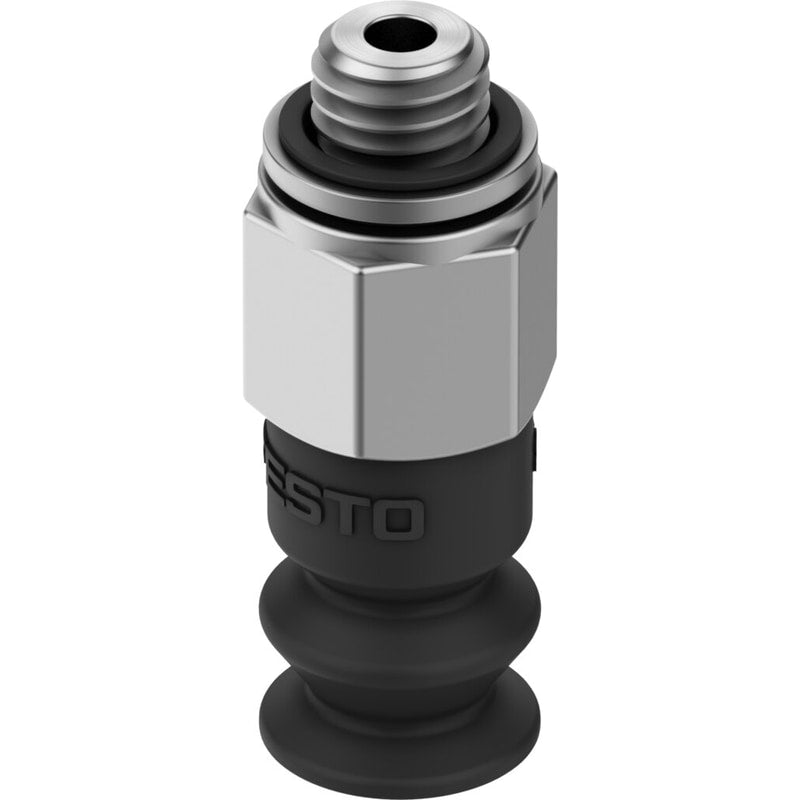

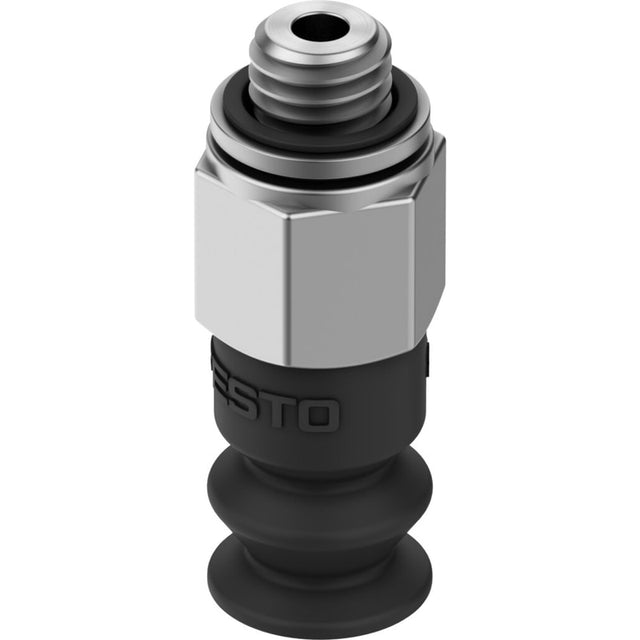

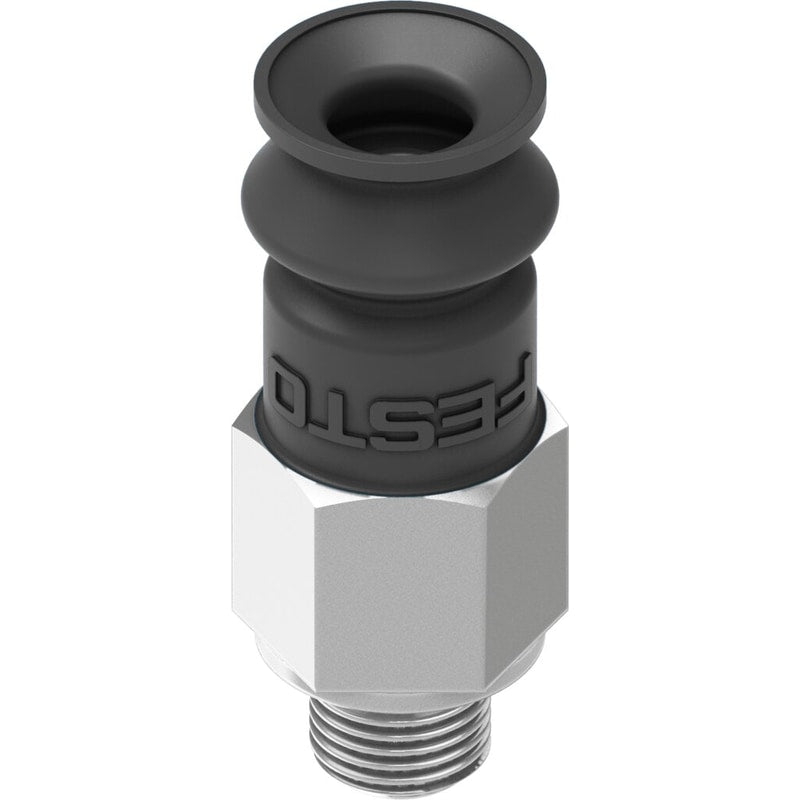

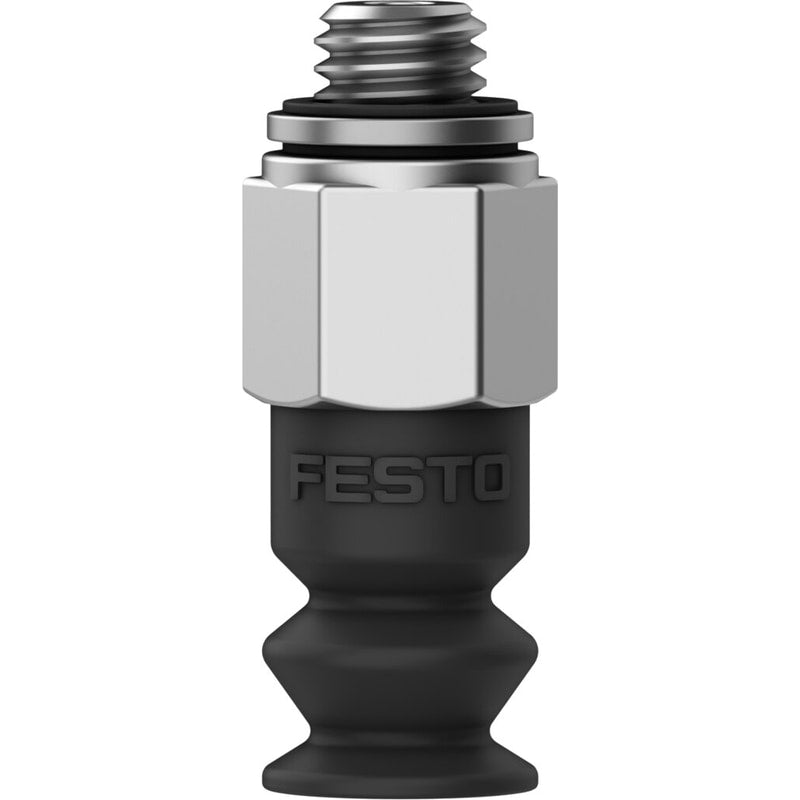

suction cup VASB-8-M5-NBR With sealing ring OL. Nominal size=2 mm, suction cup diameter=8 mm, Effective suction diameter=5,5 mm, Position of connection=on top, Suction cup shape=Round, bellows 1.5 conv
| Nominal size | 2 mm |
|---|---|
| suction cup diameter | 8 mm |
| Effective suction diameter | 5.5 mm |
| Position of connection | on top |
| Suction cup shape | Round, bellows 1.5 conv |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Ambient temperature | '-20 ... 80 °C |
| Breakaway force at 70% vacuum | 1.6 N |
| Retention force at nominal operating pressure | 1.6 N |
| Mounting thread | M5 |
| suction cup mounting | M5 |
| Vacuum connection | M5 |
| Colour | Black |
