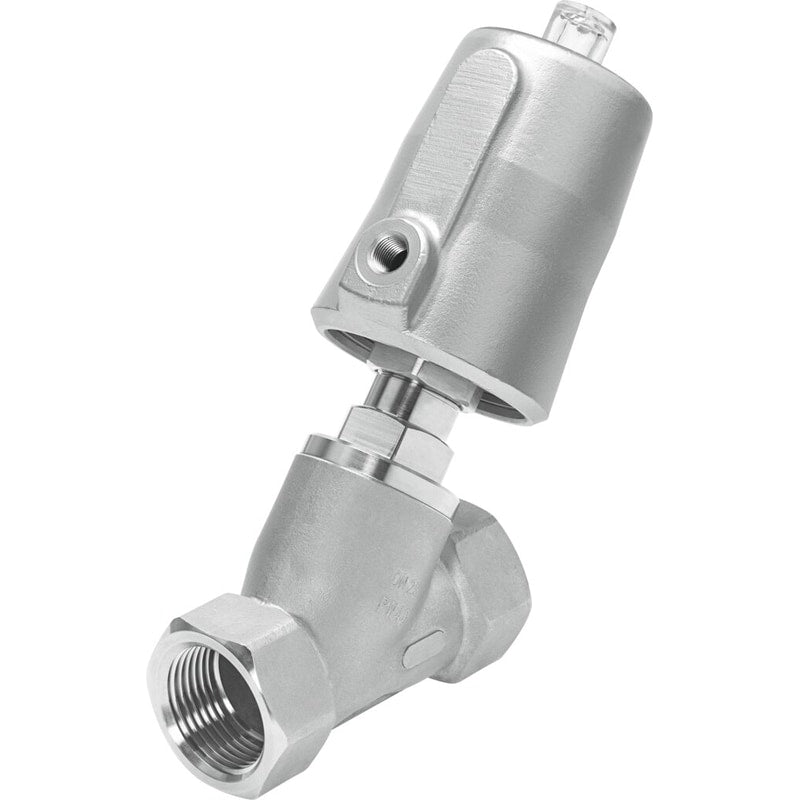

Angle seat valve
VZXF-L-M22C-M-B-N2-450-M1-V4B2T-50-3
3540144
GTIN 4052568271107
Vendor Festo
- Cable connection
- Threaded sleeve 2 NPT as per ANSI/ASME B 1.20.1
- Flow rate Kv
- 19.5 m³/h
- Medium pressure
- 0 bar - 3 bar
- Nominal width
- 45 mm
Regular price
$729.28
Unit price
VZXF-L-M22C-M-B-N2-450-M1-V4B2T-50-3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZXF-L-M22C-M-B-N2-450-M1-V4B2T-50-3
Regular price
$729.28
Unit price
VZXF-L-M22C-M-B-N2-450-M1-V4B2T-50-3 is backordered and will ship as soon as it is back in stock.
The rugged, all-purpose VZXF angle seat valve is ideal for any application requiring open-loop control of media flows—whether gaseous, liquid, or highly viscous.
| Type code | VZXF |
|---|---|
| Design | Poppet valve with piston actuator |
| Actuation type | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Cable connection | Threaded sleeve NPT1 as per ANSI/ASME B 1.20.1 |
| Nominal width | 24 mm |
| Valve function | 2/2, closed, monostable |
| Flow direction | Non-reversible |
| Medium pressure | 0 bar ... 16 bar |
| Nominal pressure of fitting PN | 40 |
| Exhaust air function | Without flow control option |
| Reset method | Mechanical spring |
| Type of control | Externally controlled |
| Pneumatic connection | Internal thread G1/8 |
| Operating pressure | 6 bar ... 10 bar |
| Symbol | 00991367 |
| Medium | Inert gasVaporFiltered compressed air, 200 µm filter mesh |
| Flow direction | Above valve seat, for gaseous media |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Max. viscosity | 600 mm²/s |
| Temperature of medium | -40 °C ... 200 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Flow rate Kv | 12 m³/h |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Valve housing material | Cast stainless steel |
| Material number, fitting housing | 1.4408 |
| Spindle seal material | PTFE |
| Seat seal material | PTFE |
| Product weight | 1600 g |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Drive housing material | Brass, nickel-plated |
