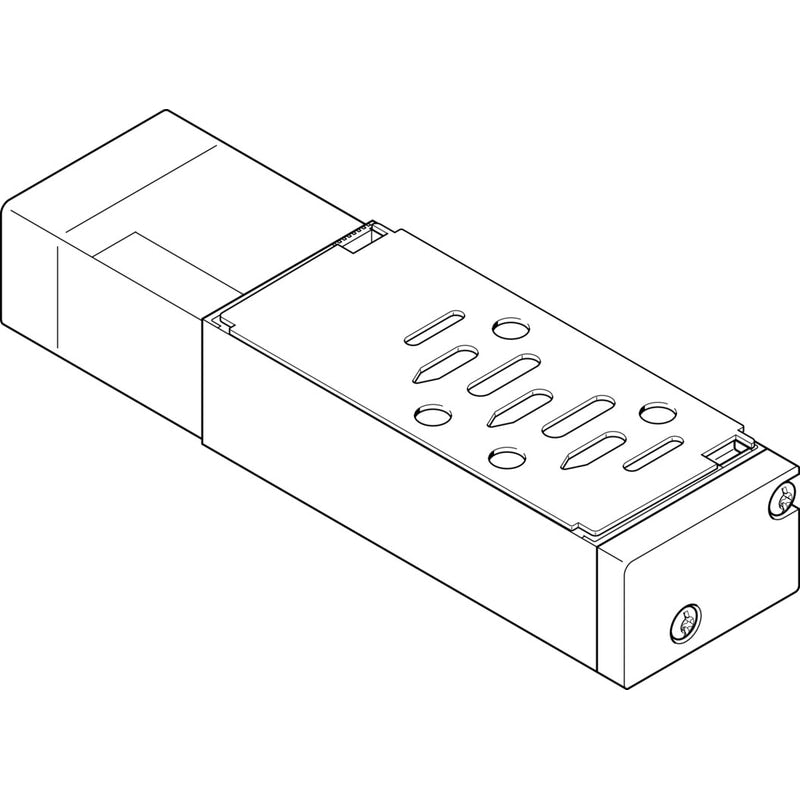

Intermediate plate
MUH-ZP-D-3-24G
34934
GTIN 4052568115555
Vendor Festo
Regular price
$337.73
Unit price
MUH-ZP-D-3-24G is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MUH-ZP-D-3-24G
Regular price
$337.73
Unit price
MUH-ZP-D-3-24G is backordered and will ship as soon as it is back in stock.
intermediate plate MUH-ZP-D-3-24G Nominal size=14,5 mm, Grid dimension=72 mm, Type of actuation=electrical, Assembly position=Any, Manual override=Pushing
| Nominal size | 14.5 mm |
|---|---|
| Grid dimension | 72 mm |
| Type of actuation | electrical |
| Assembly position | Any |
| Manual override | Pushing |
| Type of reset | mechanical spring |
| Type of piloting | direct |
| Flow direction | non reversible |
| Operating pressure | '-0.9 ... 10 bar |
| Pilot pressure | 2 ... 10 bar |
| Nominal operating voltage DC | 24 V |
| Permissible voltage fluctuation | '+/- 10 % |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
