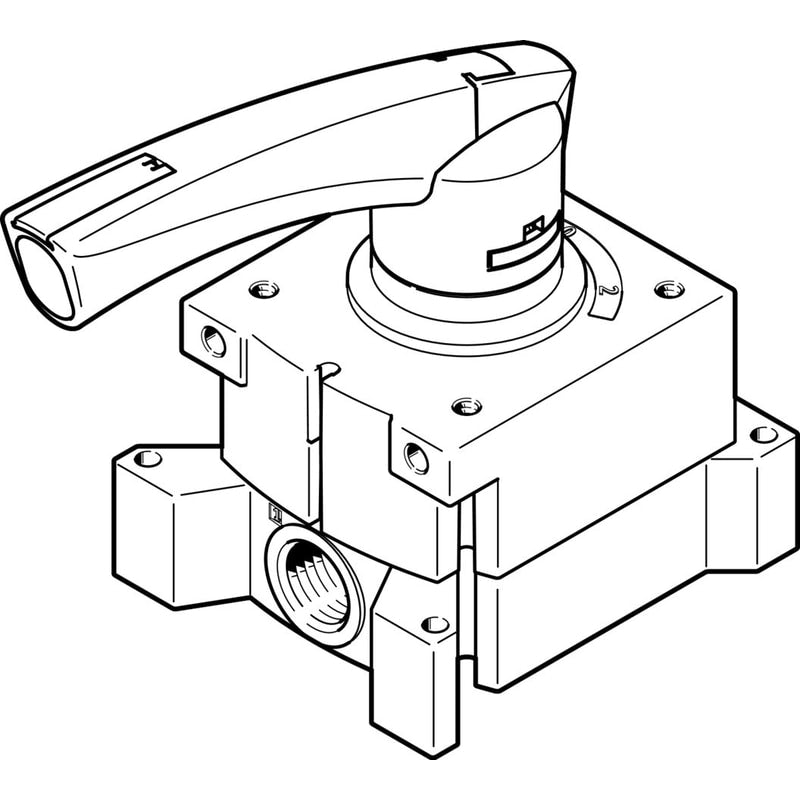

Hand lever valve
VHER-P-H-B43C-G18
3488208
GTIN 4052568269890
Vendor Festo
- Valve function
- 4/3, closed
- Normal nominal flow rate (normalized to DIN 1343)
- 600 l/min
- Pneumatic connection 1
- G1/8
- Pneumatic working port
- G1/8
- Operating pressure
- 0 bar - 10 bar
Regular price
$131.16
Unit price
VHER-P-H-B43C-G18 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VHER-P-H-B43C-G18
Regular price
$131.16
Unit price
VHER-P-H-B43C-G18 is backordered and will ship as soon as it is back in stock.
| Valve function | 4/3, closed |
|---|---|
| Actuation type | Manual |
| Width | 51 mm |
| Standard nominal flow rate | 600 l/min |
| Pneumatic working port | G1/8 |
| Operating pressure | 0 bar ... 10 bar |
| Information on operating pressure | Vacuum operation between -0.95 and 0 bar may only be connected to connection 3.In dual pressure mode, the pressure at connection 1 must be higher than at connection 3. |
| Design | Rotary gate valve |
| Nominal width | 6 mm |
| Type code | VHER |
| Exhaust air function | With flow control option |
| Application note | Operate by hand only |
| Actuator lock | can be closed with accessories |
| Sealing principle | Hard |
| Type of control | Direct |
| Flow direction | Non-reversible |
| Symbol | 00995944 |
| Underlap | yes |
| Switching position indication | with accessories |
| Explosion prevention and protection | Zone 22 (ATEX)Zone 2 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | -20 °C ... 80 °C |
| Ambient temperature | -20 °C ... 80 °C |
| Actuating torque | 0.9 Nm |
| Product weight | 165 g |
| Type of mounting | Optionally:With through-holeFront panel mounting |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 |
| Pneumatic connection 4 | G1/8 |
| Note on materials | Free of copper and PTFERoHS-compliant |
