Limit switch box
SRBC-CA3-YR90-R-2A-1W-C2P20
3482811
GTIN 4052568269845
Vendor Festo
- DC operating voltage range
- 0 V - 175 V
- Electrical connection
- Screw terminal
- Position indicator
- Yellow/red
- Switching element function
- Toggle switch, single-pin
- Cable fitting
- M20x1.5
Regular price
$213.20
Unit price
SRBC-CA3-YR90-R-2A-1W-C2P20 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SRBC-CA3-YR90-R-2A-1W-C2P20
Regular price
$213.20
Unit price
SRBC-CA3-YR90-R-2A-1W-C2P20 is backordered and will ship as soon as it is back in stock.

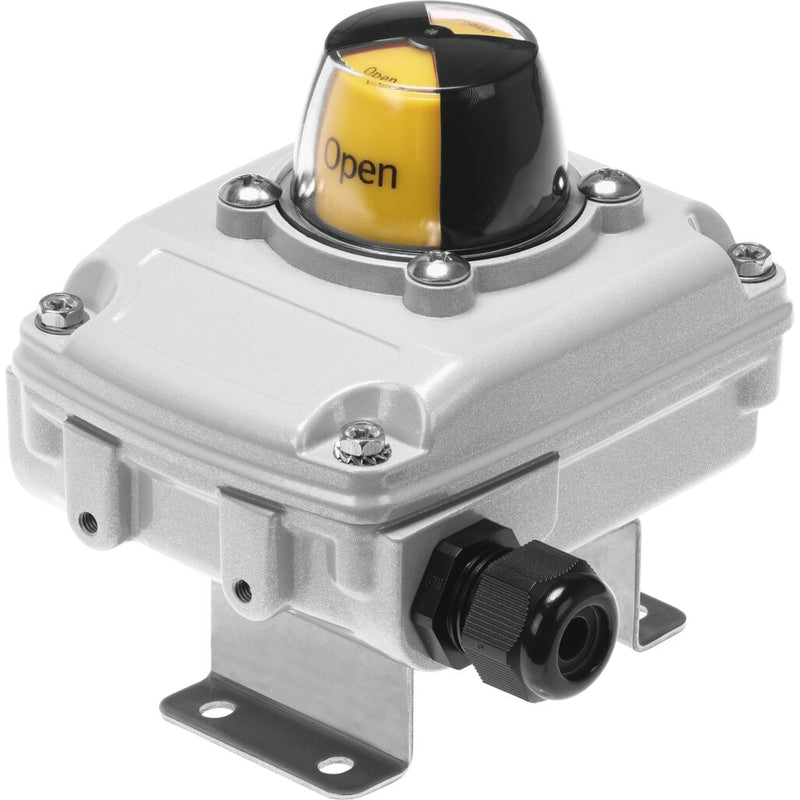

sensor box SRBC-CA3-YR90-R-2A-1W-C2P20 for electrical feedback and position monitoring of process valves which are actuated with pneumatic quarter turn actuators. Design=Angular, Based on the standard=(* EN 60947-5-2, * ISO 5211, * VDI/VDE 3845), Authorisation=c CSA us (OL), CE mark (see declaration of conformity)=to EU directive low-voltage devices, Materials note=(* Contains PWIS substances, * Conforms to RoHS)
| Authorisation | c CSA us (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive low-voltage devicesin accordance with EU RoHS directive |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Safety Integrity Level (SIL) | SIL 2 |
| Ambient temperature | '-20 ... 80 °C |
| Switch output | Contact-type |
| Switching element function | Toggle switch, single pole |
| Max. output current AC | 0.25 A |
| Max. output current DC | 0.25 A |
| Operating voltage range AC | 0 ... 120 V |
| Operating voltage range DC | 0 ... 175 V |
| Electrical connection | Screwed terminal10-pin |
| Connectable nominal conductor cross section | 0.25 ... 2.5 mm2 |
