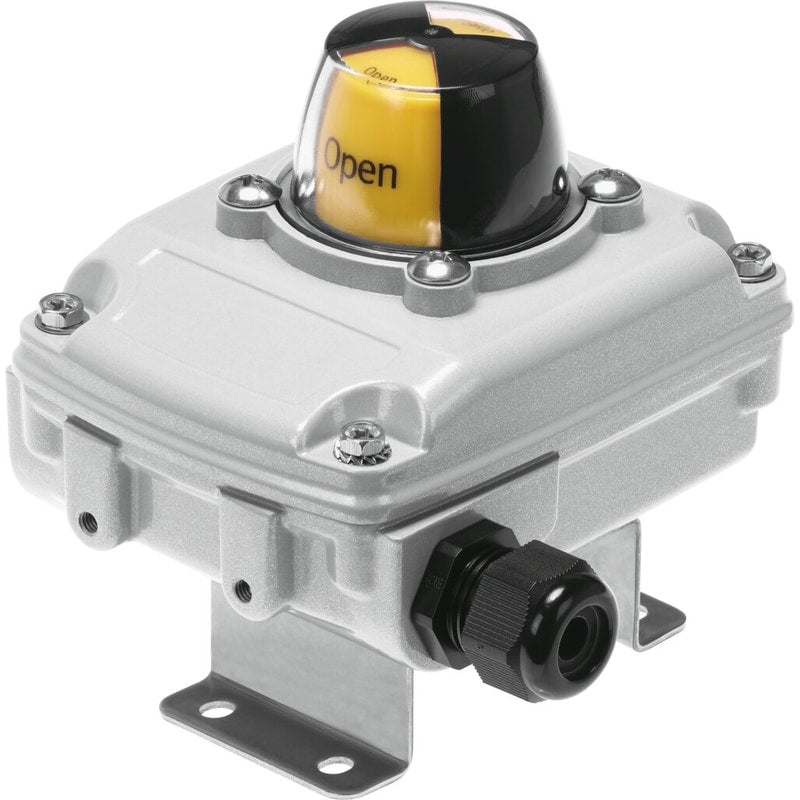

Limit switch box
SRBC-CA3-YR90-N-1-N-C2P20
3482809
GTIN 4052568269821
Vendor Festo
- DC operating voltage range
- 10 V - 30 V
- Electrical connection
- Screw terminal
- Position indicator
- Yellow/red
- Switching element function
- N/O contact
- Cable fitting
- M20x1.5
Regular price
$282.25
Unit price
SRBC-CA3-YR90-N-1-N-C2P20 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SRBC-CA3-YR90-N-1-N-C2P20
Regular price
$282.25
Unit price
SRBC-CA3-YR90-N-1-N-C2P20 is backordered and will ship as soon as it is back in stock.
sensor box SRBC-CA3-YR90-N-1-N-C2P20 for electrical feedback and position monitoring of process valves which are actuated with pneumatic quarter turn actuators. Design=Angular, Based on the standard=(* EN 60947-5-2, * ISO 5211, * VDI/VDE 3845), Authorisation=(* RCM Mark, * c CSA us (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Contains PWIS substances, * Conforms to RoHS)
| Authorisation | RCM Markc CSA us (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMCin accordance with EU RoHS directive |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Safety Integrity Level (SIL) | SIL 2 |
| Ambient temperature | '-20 ... 70 °C |
| Switch output | NPN |
| Switching element function | Normally open contact |
| Max. output current DC | 100 mA |
| Voltage drop | <= 3 V |
| Residual current | 0 ... 0.5 mA |
| Short circuit strength | Pulsing |
| Operating voltage range DC | 10 ... 30 V |
| Idle current | <= 15 mA |
