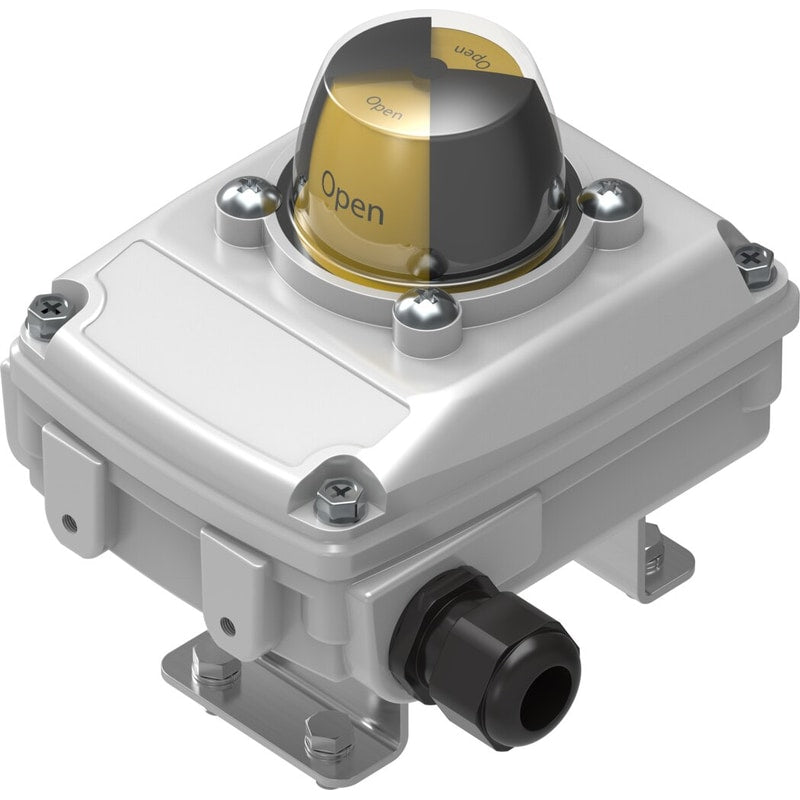

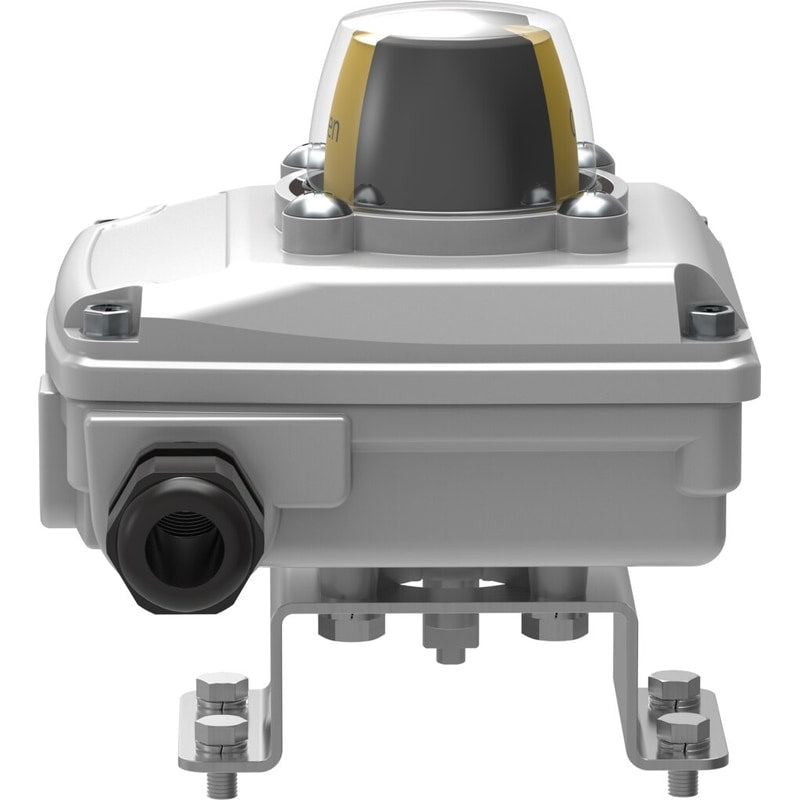

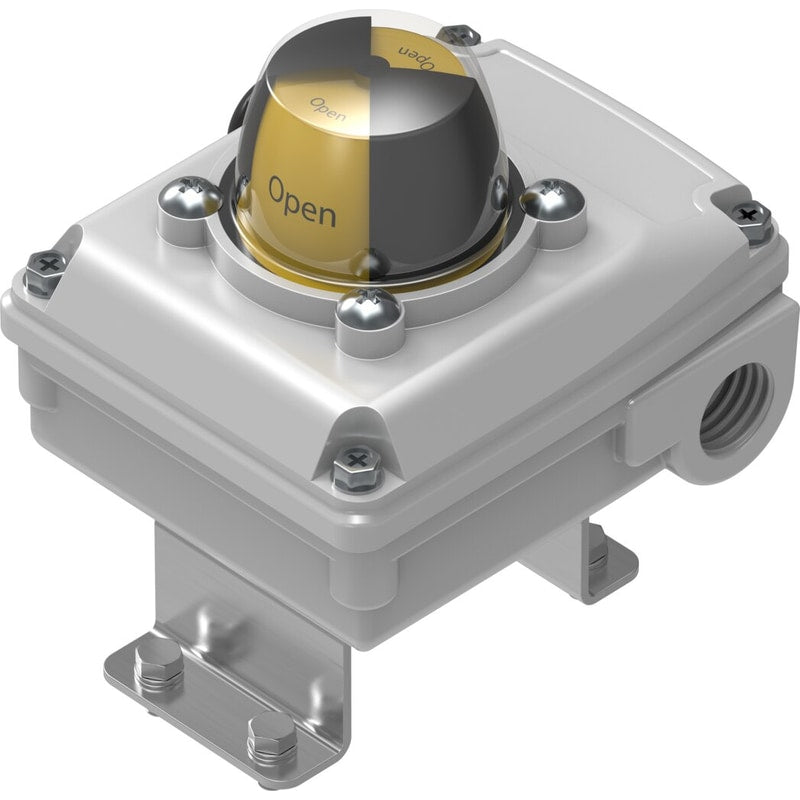

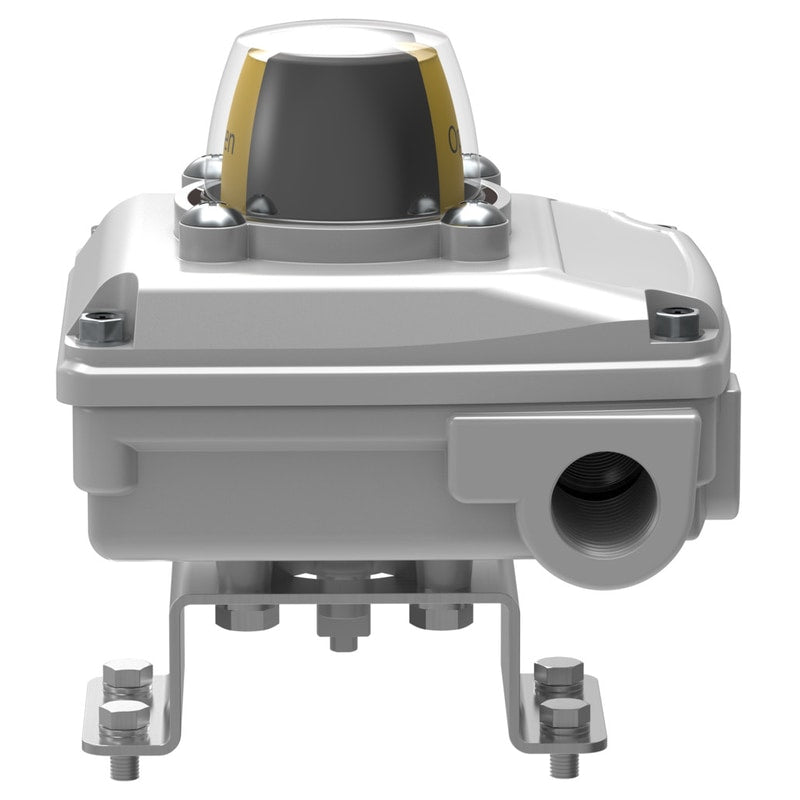

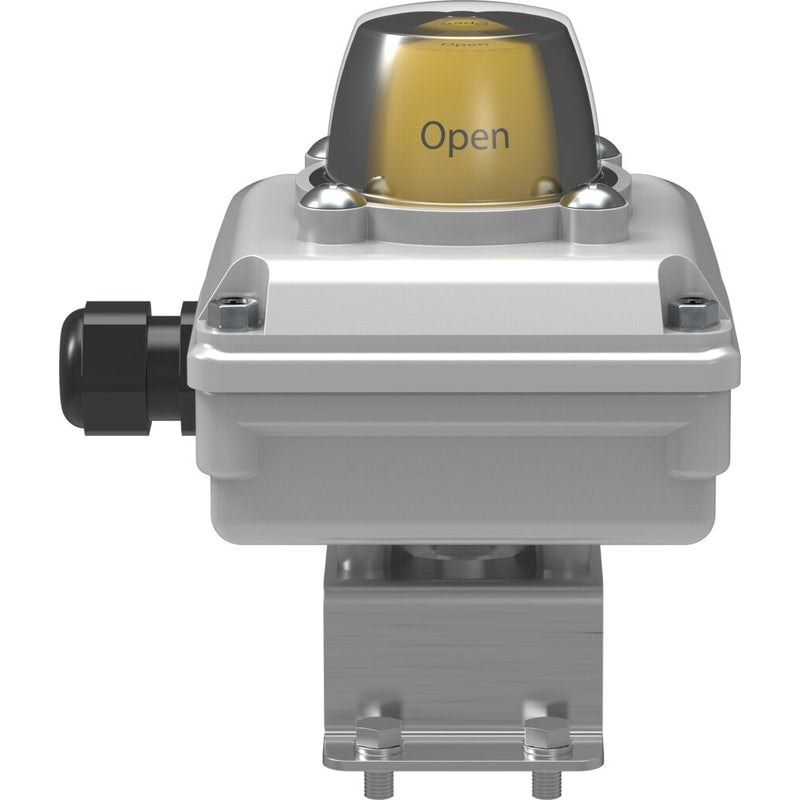

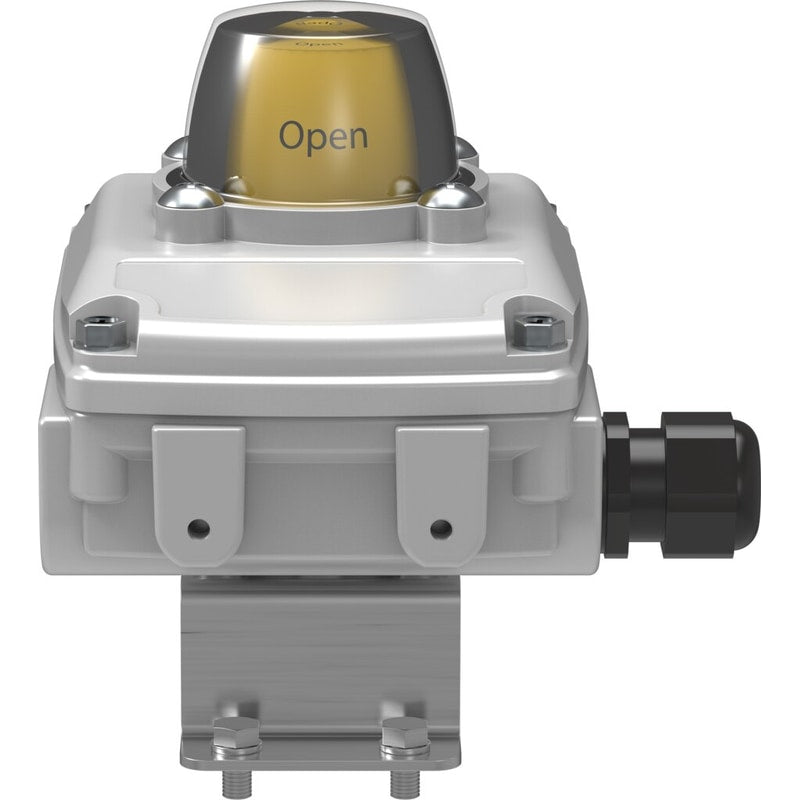

Limit switch box
SRBC-CA3-YR90-N-20N-ZC-C2P20-EX6
3482807
GTIN 4052568269807
Vendor Festo
- DC operating voltage range
- 8.2 V
- Electrical connection
- Screw terminal
- Position indicator
- Yellow/red
- Switching element function
- N/C contact
- Cable fitting
- M20x1.5
Regular price
$278.85
Unit price
SRBC-CA3-YR90-N-20N-ZC-C2P20-EX6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SRBC-CA3-YR90-N-20N-ZC-C2P20-EX6
Regular price
$278.85
Unit price
SRBC-CA3-YR90-N-20N-ZC-C2P20-EX6 is backordered and will ship as soon as it is back in stock.
sensor box SRBC-CA3-YR90-N-20N-ZC-C2P20-EX4 for electrical feedback and position monitoring of process valves which are actuated with pneumatic quarter turn actuators. Design=Angular, Based on the standard=(* EN 60947-5-6, * ISO 5211, * VDI/VDE 3845), Authorisation=RCM Mark, CE mark (see declaration of conformity)=(* to EU directive for EMC, * to EU directive explosion protection (ATEX)), ATEX category Gas=II 2G
| Authorisation | RCM Mark |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMCto EU directive explosion protection (ATEX)in accordance with EU RoHS directive |
| ATEX category Gas | II 1G |
| Explosion ignition protection type Gas | Ex ia IIC T6/T5 Ga |
| ATEX category Dust | II 1D |
| Explosion ignition protection type Dust | Ex ia IIIC Txx°C Da |
| Explosion protection certification outside the EU | EPL Da (IEC-EX)EPL Ga (IEC-EX) |
| Explosion-proof ambient temperature | See ATEX certificateSee IECEx certificate |
| Max. input voltage | 16 V |
| effective inductivity | 100 µH |
| effective capacity | 100 nF |
| Max. input parameters for intrinsically safe circuit | See IECEx certificateSee ATEX certificate |
| Certificate issuing department | FTZU 17 ATEX 0105XIECEx FTZU 17.0017X |
