Control block

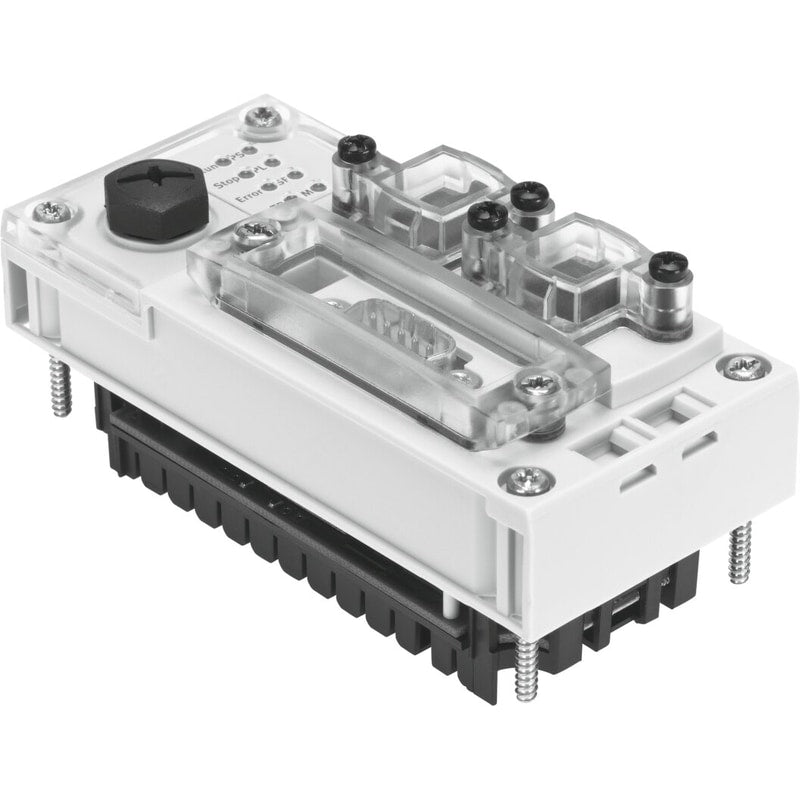

CPX-CEC-M1-V3
3472765
GTIN 4052568269760
Vendor Festo
Regular price
$1,956.15
Unit price
CPX-CEC-M1-V3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-CEC-M1-V3
Regular price
$1,956.15
Unit price
CPX-CEC-M1-V3 is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 50 mm x 107 mm x 55 mm |
|---|---|
| Type code | CPX |
| Device-specific diagnostics | Diagnostic memoryChannel-oriented and module-oriented diagnosticsUndervoltage/short circuit of modules |
| CPU data | 256 MB RAM800 MHz processor32 MB flash |
| Configuration support | CODESYS V3 |
| Parameterization | CODESYS V3 |
| Total number of axes | 31 |
| Additional functions | SoftMotion functions for electric actuatorsDiagnostic functions |
| Control elements | Rotary switch for RUN/StopDIL switch for CAN termination |
| Programming, operating language | DE, EN |
| Programming, file handling support | yes |
| Processing time | Approx. 200 µs/1 k instruction |
| Intrinsic current consumption at nominal operating voltage | Typ. 85 mA |
| IP address setting | Via MMIVia CODESYSDHCP |
| Function blocks | Read CPX module diagnosticsCopy CPX diagnostic traceCPX diagnostic statusand others |
| Flag | CODESYS variable concept28 kB remanent data |
| Nominal operating voltage DC load voltage | With pneumatic type CPA: 20.4 ... 26.4 VWith midi/maxi pneumatic valves types: 21.6 ... 26.4 V24 VWith pneumatics type MPA: 18 ... 30 VWithout pneumatics: 18 ... 30V |
| Nominal operating voltage DC | 24 V |
| Power failure buffering | 10 ms |
| Programming software | CODESYS provided by Festo |
| Programming language | as per IEC 61131-3Additionally CFCSTASFUPKOPAWL |
| Program memory | 16 MB user program |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Relative air humidity | Non-condensing95 % |
| Degree of protection | IP67IP65 |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 135 g |
| Ethernet, number | 1 |
| Ethernet, data transmission speed | 10/100 Mbit/s |
| Ethernet, supported protocols | TCP/IP, EasyIP, Modbus® TCP |
| Ethernet, connector plug | Socket8-pinRJ45 |
| Fieldbus interface, galvanic isolation | yes |
| Fieldbus interface, transmission rate | Adjustable via software125, 250, 500, 800, 1000 kbit/s |
| Fieldbus interface, connection technology | Plug9-pinSub-D |
| Fieldbus interface, type | CAN bus |
| Protocol | TCP/IPCODESYS level 2Modbus® TCPEasyIP |
| Control interface | CAN bus |
| Ethernet interface | RJ 45 (socket, 8-pin) |
| LED display (bus-specific) | TP: link/traffic |
| LED display (product-specific) | PS: electronics supply, sensor supplyPL: load supplyERR: PLC runtime errorRUN: PLC statusSTOP: PLC statusM: modify/forcing activeSF: system fault |
| Note on materials | RoHS-compliant |
| Housing material | PA-reinforcedPC |
