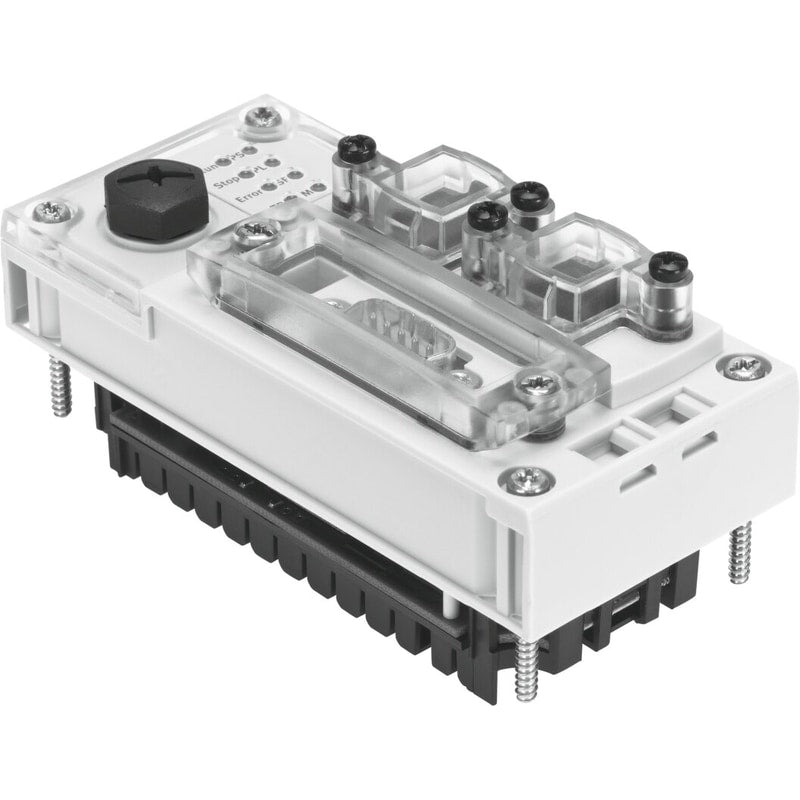

Control block
CPX-CEC-S1-V3
3472425
GTIN 4052568269753
Vendor Festo
Regular price
$1,058.65
Unit price
CPX-CEC-S1-V3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-CEC-S1-V3
Regular price
$1,058.65
Unit price
CPX-CEC-S1-V3 is backordered and will ship as soon as it is back in stock.
control block CPX-CEC-S1-V3 Modular controller Codesys V3, Ethernet, serial interfaces. Dimensions W x L x H=50 mm x 107 mm x 55 mm, Device-specific diagnostics=(* Channel and module-orientated diagnostics, * - Undervoltage/short circuit of modules, * - Diagnostic memory), CPU data=(* 256 MB RAM, * 32 MB Flash, * 800 MHz processor), Configuration support=CODESYS V3, Parameters configuring=CODESYS V3
| Dimensions W x L x H | 50 mm x 107 mm x 55 mm |
|---|---|
| Device-specific diagnostics | Channel and module-orientated diagnostics- Undervoltage/short circuit of modules- Diagnostic memory |
| CPU data | 256 MB RAM32 MB Flash800 MHz processor |
| Configuration support | CODESYS V3 |
| Parameters configuring | CODESYS V3 |
| Additional functions | Diagnostics functionsCommunication function RS232 |
| Control elements | Rotary switch for run/stop |
| Programming, operating language | DE, EN |
| Programming, file handling support | Yes |
| Processing time | Approx. 200 µs/1 k instruction |
| Data Interface | RS 232 interfaceSub-D 9-pin, socket9,6 ... 230,4 kBit/sElectrically isolated |
| Intrinsic current consumption at operating voltage | Typically 85 mA |
| IP address selection | DHCPVia CoDeSysVia MMI |
