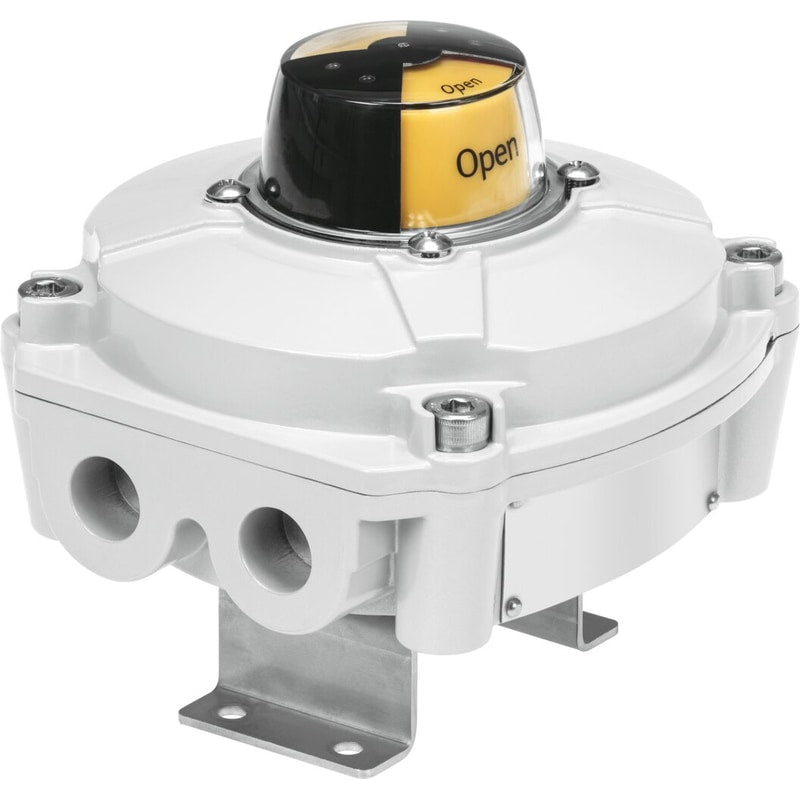

Limit switch box
SRBE-CA3-YR90-N-1-P-C2N12-EX
3471014
GTIN 4052568269678
Vendor Festo
- DC operating voltage range
- 10 V - 30 V
- Electrical connection
- Screw terminal
- Position indicator
- Yellow/red
- Switching element function
- N/O contact
- Cable fitting
- 1/2 NPT
Regular price
$500.47
Unit price
SRBE-CA3-YR90-N-1-P-C2N12-EX is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SRBE-CA3-YR90-N-1-P-C2N12-EX
Regular price
$500.47
Unit price
SRBE-CA3-YR90-N-1-P-C2N12-EX is backordered and will ship as soon as it is back in stock.
sensor box SRBE-CA3-YR90-N-1-P-C2N12-EX For electrical feedback and position monitoring of process valves which are actuated with pneumatic quarter turn actuators, inductive measuring principle. Design=Angular, Based on the standard=(* EN 60947-5-2, * ISO 5211, * VDI/VDE 3845), Authorisation=RCM Mark, CE mark (see declaration of conformity)=(* to EU directive for EMC, * to EU directive explosion protection (ATEX)), ATEX category Gas=II 2G
| Design | Angular |
|---|---|
| Based on the standard | EN 60947-5-2ISO 5211VDI/VDE 3845 |
| Authorisation | RCM Mark |
| CE mark (see declaration of conformity) | to EU directive for EMCto EU directive explosion protection (ATEX) |
| ATEX category Gas | II 2G |
| Explosion ignition protection type Gas | Ex db IIC T6 Gb |
| ATEX category Dust | II 2D |
| Explosion ignition protection type Dust | Ex tb IIIC T61°C Db |
| Explosion protection certification outside the EU | EPL Db (BR)EPL Db (CN)EPL Db (IEC-EX)EPL Gb (BR)EPL Gb (CN)EPL Gb (IEC-EX) |
| Explosion-proof ambient temperature | '-20°C <= Ta <= +60°C |
| Certificate issuing department | DNV 16.0067XFTZU 15 ATEX 0095XGYJ 16.1497XIECEx FTZU 15.0014X |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Safety Integrity Level (SIL) | SIL 2 |
