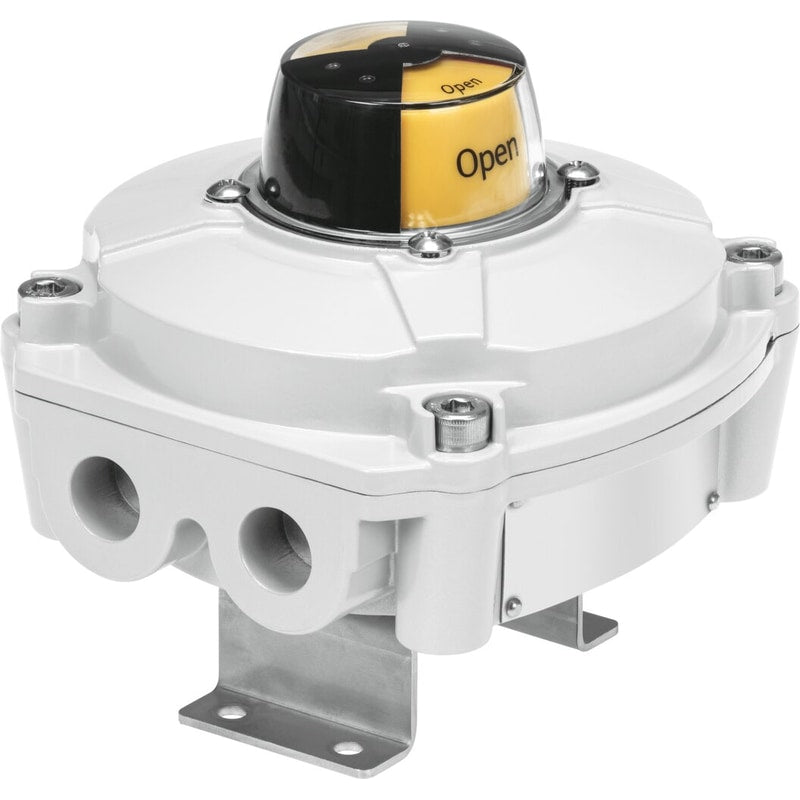

Limit switch box
SRBE-CA3-YR90-MW-22A-1W-C2M20-EX
3471009
GTIN 4052568269623
Vendor Festo
- DC operating voltage range
- 0 V - 30 V
- Electrical connection
- Screw terminal
- Position indicator
- Yellow/red
- Switching element function
- Toggle switch, single-pin
- Cable fitting
- M20x1.5
Regular price
$331.72
Unit price
SRBE-CA3-YR90-MW-22A-1W-C2M20-EX is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SRBE-CA3-YR90-MW-22A-1W-C2M20-EX
Regular price
$331.72
Unit price
SRBE-CA3-YR90-MW-22A-1W-C2M20-EX is backordered and will ship as soon as it is back in stock.
sensor box SRBE-CA3-YR90-MW-22A-1W-C2M20-EX For electrical feedback and position monitoring of process valves which are actuated with pneumatic quarter turn actuators, electromechanical measuring principle. Design=Angular, Based on the standard=(* ISO 5211, * VDI/VDE 3845), CE mark (see declaration of conformity)=(* to EU directive explosion protection (ATEX), * to EU directive low-voltage devices), ATEX category Gas=II 2G, Explosion ignition protection type Gas=Ex d IIC T6 Gb
| Design | Angular |
|---|---|
| Based on the standard | ISO 5211VDI/VDE 3845 |
| CE mark (see declaration of conformity) | to EU directive explosion protection (ATEX)to EU directive low-voltage devices |
| ATEX category Gas | II 2G |
| Explosion ignition protection type Gas | Ex db IIC T6 Gb |
| ATEX category Dust | II 2D |
| Explosion ignition protection type Dust | Ex tb IIIC T75°C Db |
| Explosion protection certification outside the EU | EPL Db (BR)EPL Db (CN)EPL Db (IEC-EX)EPL Gb (BR)EPL Gb (CN)EPL Gb (IEC-EX) |
| Explosion-proof ambient temperature | '-20°C <= Ta <= +60°C |
| Certificate issuing department | DNV 16.0067XFTZU 15 ATEX 0095XGYJ 16.1497XIECEx FTZU 15.0014X |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Safety Integrity Level (SIL) | SIL 2 |
| Measuring principle | Mechanical/electricalFor proximity sensor |
