Guide unit
FENG-32-100-KF
34494
GTIN 4052568115234
Vendor Festo
Regular price
$932.44
Unit price
FENG-32-100-KF is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FENG-32-100-KF
Regular price
$932.44
Unit price
FENG-32-100-KF is backordered and will ship as soon as it is back in stock.

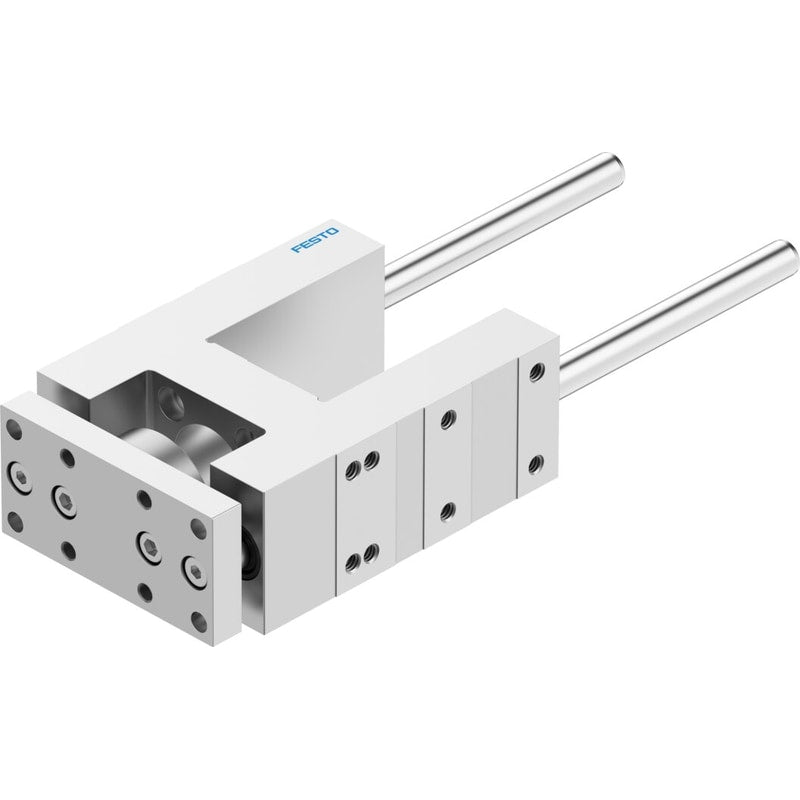

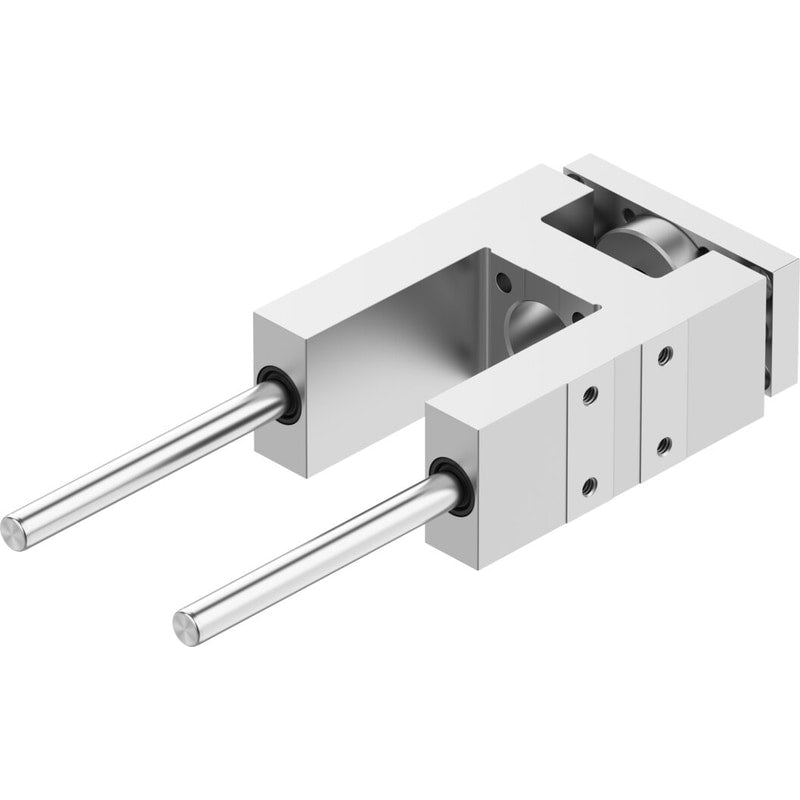

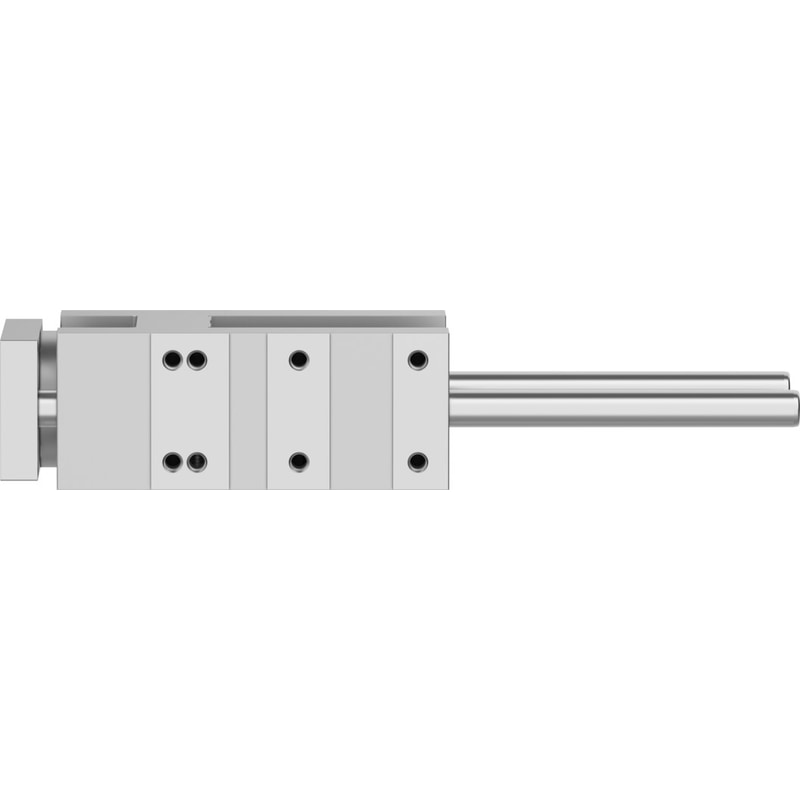

guide unit FENG-32-100-KF with recirculating ball bearing guide, serves for protection against rotation, provides a high accuracy of guidance. Size=32, Stroke=100 mm, Assembly position=Any, Guide=Recirculating ball bearing guide, Design structure=Guide
| Size | 32 |
|---|---|
| Stroke | 100 mm |
| Assembly position | Any |
| Guide | Recirculating ball bearing guide |
| Design structure | Guide |
| Ambient temperature | '-20 ... 80 °C |
| Max. force Fy | 750 N |
| Max. force Fy static | 1,020 N |
| Max. force Fz | 750 N |
| Max. force Fz static | 1,020 N |
| Max. torque Mx | 28 Nm |
| Max. torque Mx static | 38 Nm |
| Max. torque My | 34 Nm |
