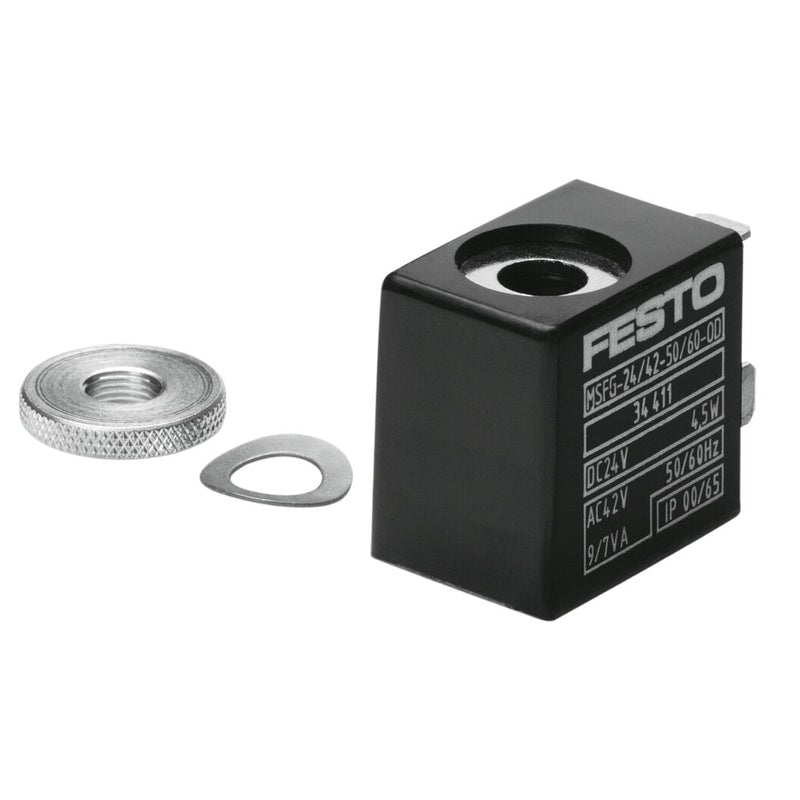

Solenoid coil
MSFG-24/42-50/60-OD
34411
GTIN 4052568007911
Vendor Festo
- Electrical connection
- 3-pin - Plug flags with connection diagram as per Festo standard for MSSD-F
- Type of mounting
- With knurled nut
- Coil characteristics
- 24 V DC: 4.5 W - 42 V AC: 50/60 Hz, initial power 9.0 VA, holding power 7.0 VA
- Degree of protection
- IP65
Regular price
$25.00
Unit price
MSFG-24/42-50/60-OD is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSFG-24/42-50/60-OD
Regular price
$25.00
Unit price
MSFG-24/42-50/60-OD is backordered and will ship as soon as it is back in stock.
solenoid coil MSFG-24/42-50/60-OD For DC voltage, without plug socket. Assembly position=Any, Switching position indicator=No, Min. pickup time=10 ms, Duty cycle=100%, Power factor cos {phi}=0,7
| Assembly position | Any |
|---|---|
| Switching position indicator | No |
| Min. pickup time | 10 ms |
| Duty cycle | 1 |
| Power factor cos {phi} | 0.7 |
| Characteristic coil data | 24 V DC: 4.5 W42 V AC: 50/60 Hz, pick-up power 9 VA, holding power 7 VA |
| Permissible frequency fluctuation | '+/- 5 % |
| Permissible voltage fluctuation | '+/- 10 % |
| Protection class | IP65 |
| Ambient temperature | '-5 ... 40 °C |
| Max. tightening torque, plug socket | 0.4 Nm |
| Product weight | 55 g |
| Electrical connection | Plug vanes for MSSD-F3-pin |
