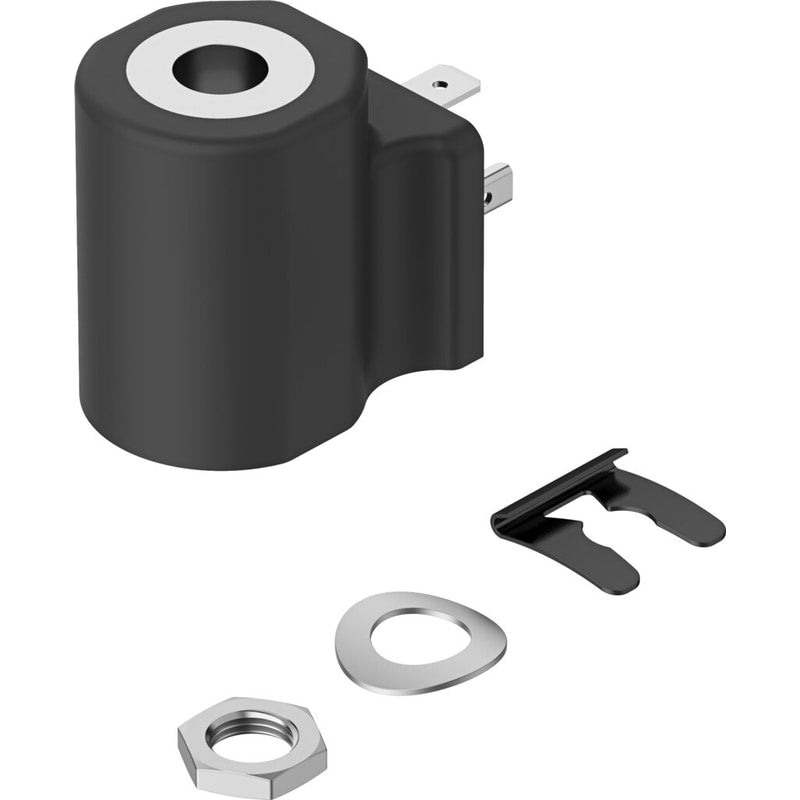

Solenoid coil
MSW-230AC-OD
34407
GTIN 4052568067885
Vendor Festo
- Electrical connection
- Form A - Plug - as per EN 175301-803
- Type of mounting
- External hexagon 1/8 - Retaining clip
- Coil characteristics
- 230 V AC: 50 Hz, pick-up power 30 VA, holding power 22 VA
- Degree of protection
- IP65
Regular price
$72.65
Unit price
MSW-230AC-OD is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSW-230AC-OD
Regular price
$72.65
Unit price
MSW-230AC-OD is backordered and will ship as soon as it is back in stock.
solenoid coil MSW-230AC-OD With pin connections for plug sockets per DIN EN 175301 Assembly position=Any, Min. pickup time=10 ms, Duty cycle=100%, Protection class=IP65, Materials note=Conforms to RoHS
| Assembly position | Any |
|---|---|
| Min. pickup time | 10 ms |
| Duty cycle | 1 |
| Protection class | IP65 |
| Materials note | Conforms to RoHS |
| Material housing | PA |
| Material electrical contact | Steel |
| Material winding | Copper |
