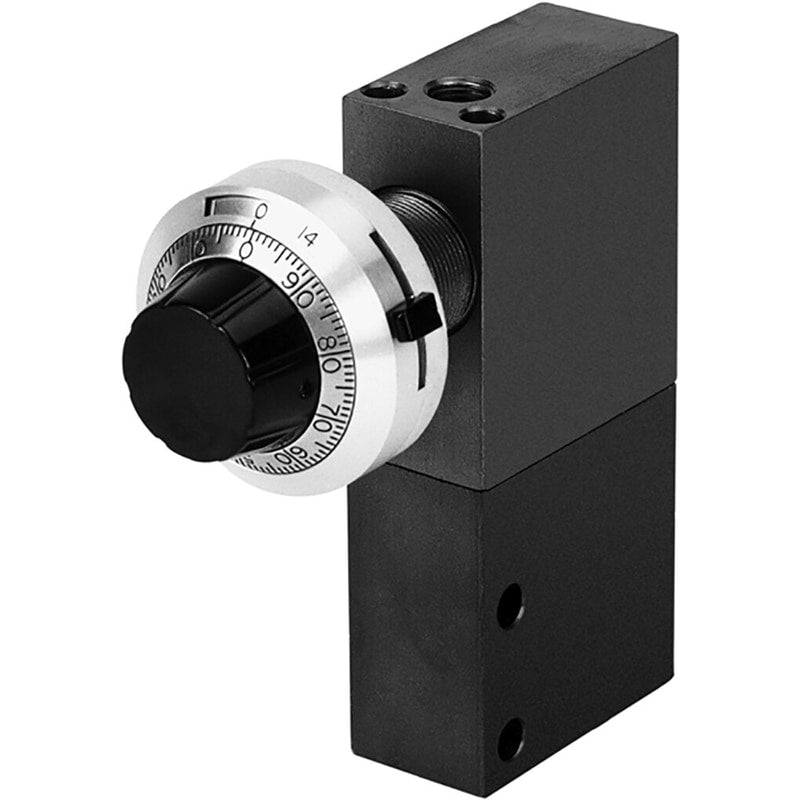

Pneumatic timer
VZA-3-1/4
3434
GTIN 4052568110307
Vendor Festo
Regular price
$1,709.38
Unit price
VZA-3-1/4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZA-3-1/4
Regular price
$1,709.38
Unit price
VZA-3-1/4 is backordered and will ship as soon as it is back in stock.

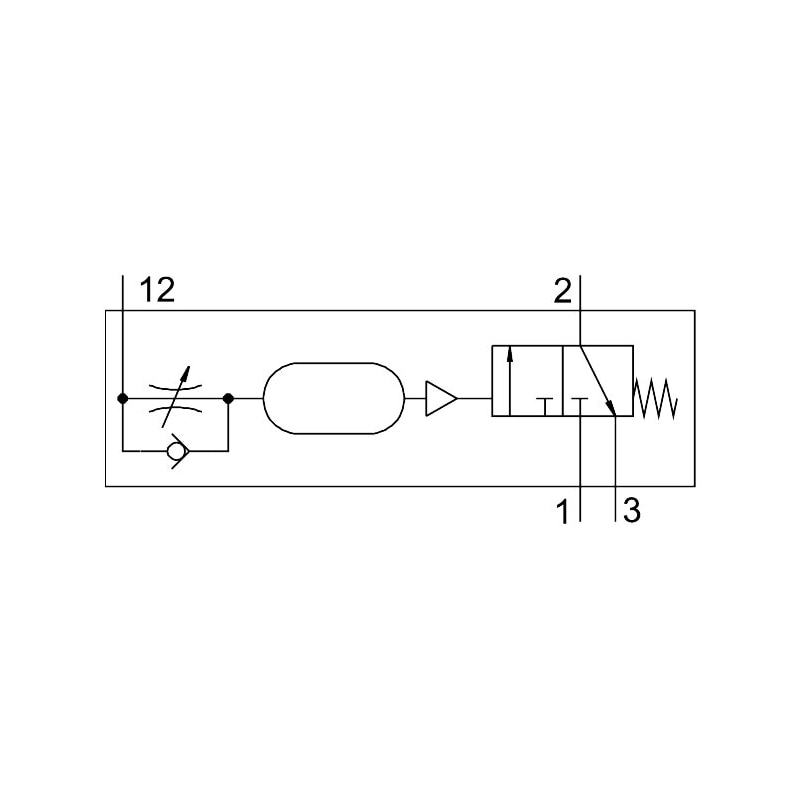

time delay valve VZA-3-1/4 Operating pressure=0 - 10 bar, Standard nominal flow rate=600 l/min, Adjustable delay times=0 - 30 s, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation)
| Operating pressure | 0 ... 10 bar |
|---|---|
| Standard nominal flow rate | 600 l/min |
| Adjustable delay times | 0 ... 30 s |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Mounting type | with through hole |
| Pneumatic connection | G1/8G1/4 |
| Materials note | Conforms to RoHS |
