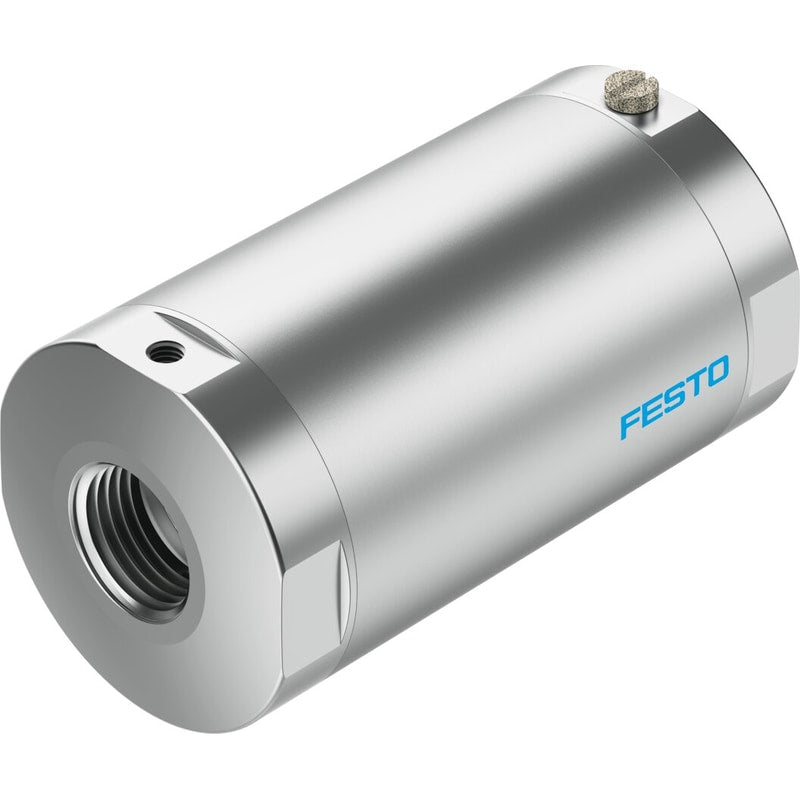

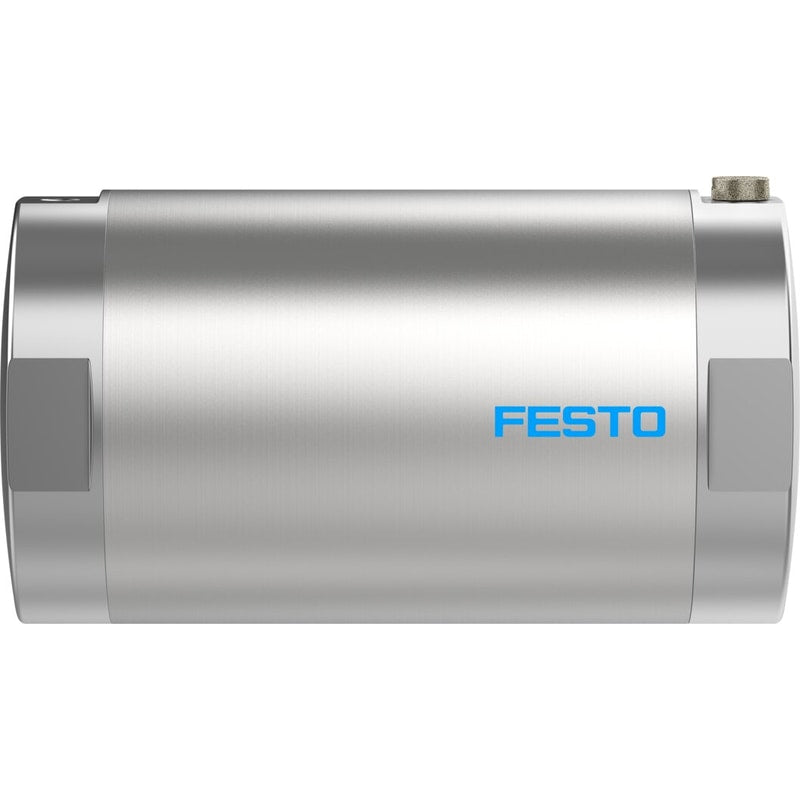

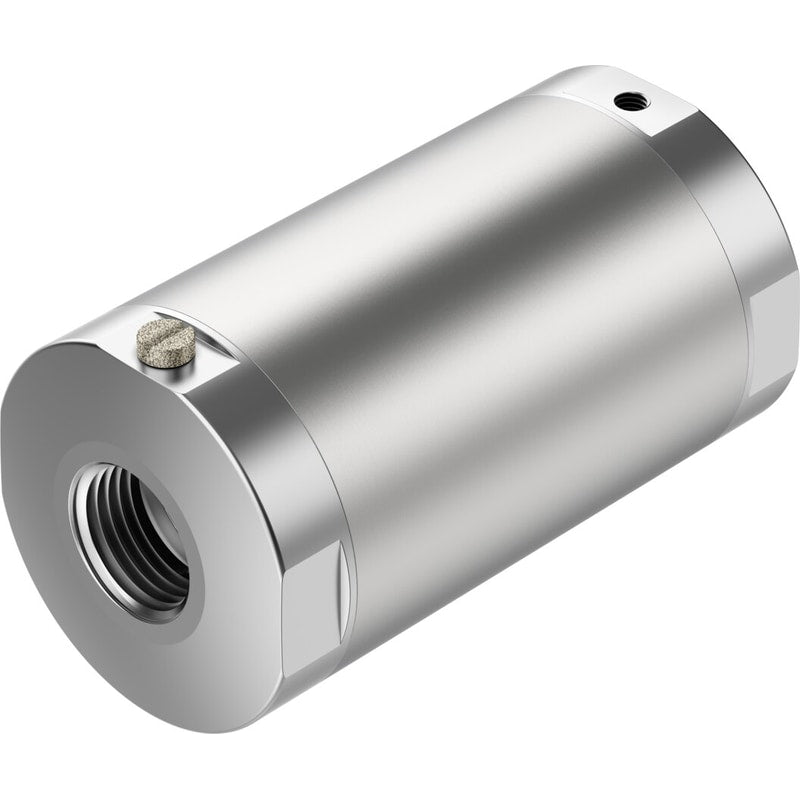

Pinch valve
VZQA-C-M22C-15-GG-V2V4E-6
3412426
GTIN 4052568269562
Vendor Festo
- Structural design
- Pinch valve, pneumatically operated
- Valve function
- 2/2, closed, monostable
- Fitting connection
- G1/2
- Flow rate Kv
- 5 m³/h
- Medium pressure
- 0 bar - 6 bar
Regular price
$709.10
Unit price
VZQA-C-M22C-15-GG-V2V4E-6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZQA-C-M22C-15-GG-V2V4E-6
Regular price
$709.10
Unit price
VZQA-C-M22C-15-GG-V2V4E-6 is backordered and will ship as soon as it is back in stock.
Extremely high flow rates, an easy to clean design and a modular structure. Combine pneumatic valve bodies and actuators however suits you best to make your applications more flexible.
| Type code | VZXA |
|---|---|
| Certificate issuing authority | German Technical Control Board (TÃœV) 968/V 1039.00/18 |
| Safety integrity level (SIL) | SIL 2 |
| PFH | 1.36E-7 |
| PFD | 5.95E-4 |
| Design | Poppet valve with piston actuator |
| Actuation type | Pneumatic |
| Mounting position | Any |
| Type of mounting | Line installation |
| Cable connection | Threaded sleeve NPT3/4 as per ANSI/ASME B 1.20.1 |
| Valve function | 2/2 |
| Flow direction | Non-reversible |
| Medium pressure | 0 bar ... 30 bar |
| Reset method | Mechanical spring |
| Type of control | Externally controlled |
| Pneumatic connection | Internal thread G1/8 |
| Operating pressure | 5 bar ... 10 bar |

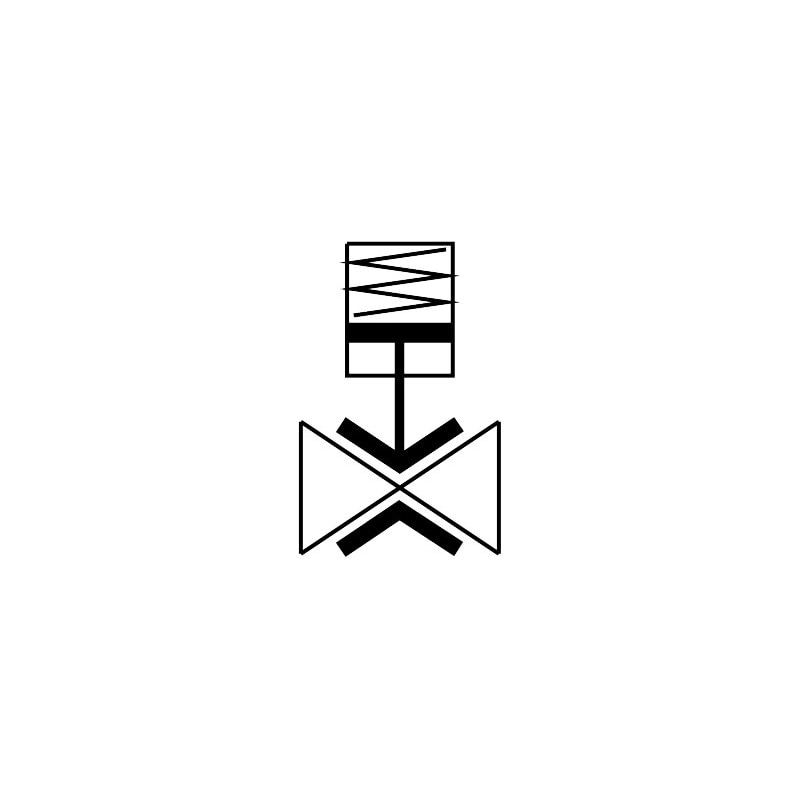

| Symbol | 00995586 |
| Medium | VaporFiltered compressed air, 200 µm filter meshWaterInert gasHydraulic fluid based on mineral oilNeutral liquidsMineral oil |
| Flow direction | Under valve seat, for gaseous and liquid media |
| Control of the medium | On/off mode |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Max. viscosity | 600 mm²/s |
| Temperature of medium | -10 °C ... 180 °C |
| Ambient temperature | 0 °C ... 60 °C |
| Flow rate Kv | 13.5 m³/h |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Valve housing material | Cast stainless steel |
| Material number, fitting housing | ASTM A351-CF3M |
| Seals material | FPM |
| Spindle seal material | PTFE |
| Seat seal material | PTFE |
| Product weight | 3360 g |
