Coupling
EAMD-67-51-19-32X32-U
3398671
GTIN 4052568269470
Vendor Festo
Regular price
$376.17
Unit price
EAMD-67-51-19-32X32-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EAMD-67-51-19-32X32-U
Regular price
$376.17
Unit price
EAMD-67-51-19-32X32-U is backordered and will ship as soon as it is back in stock.

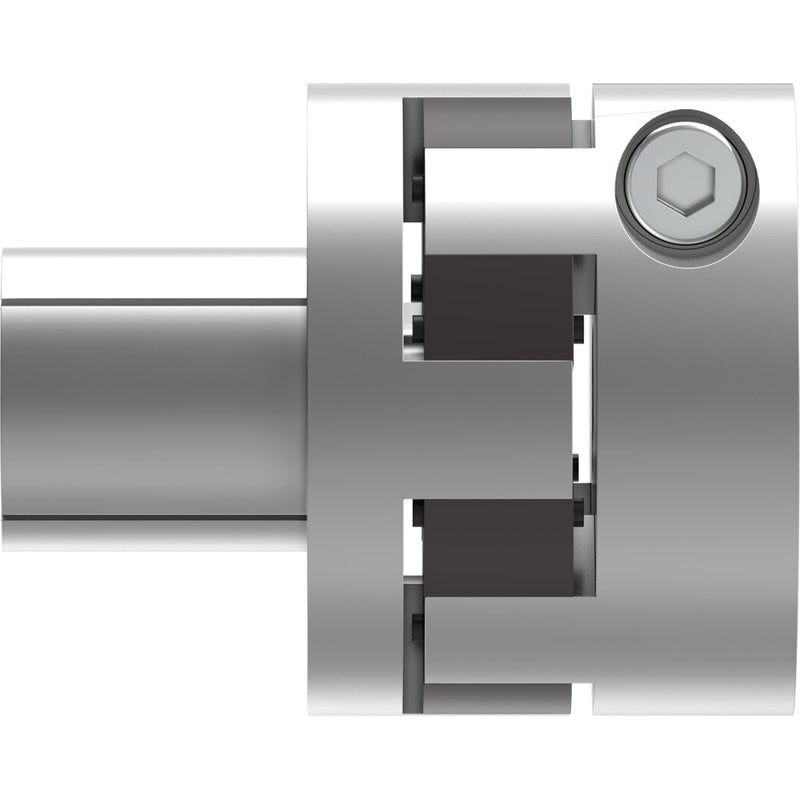

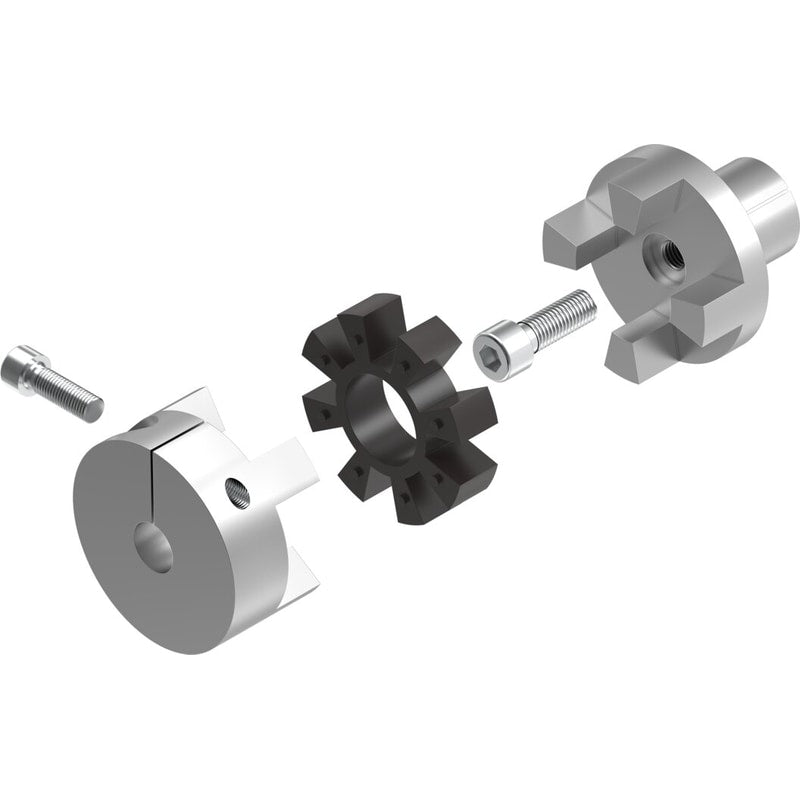

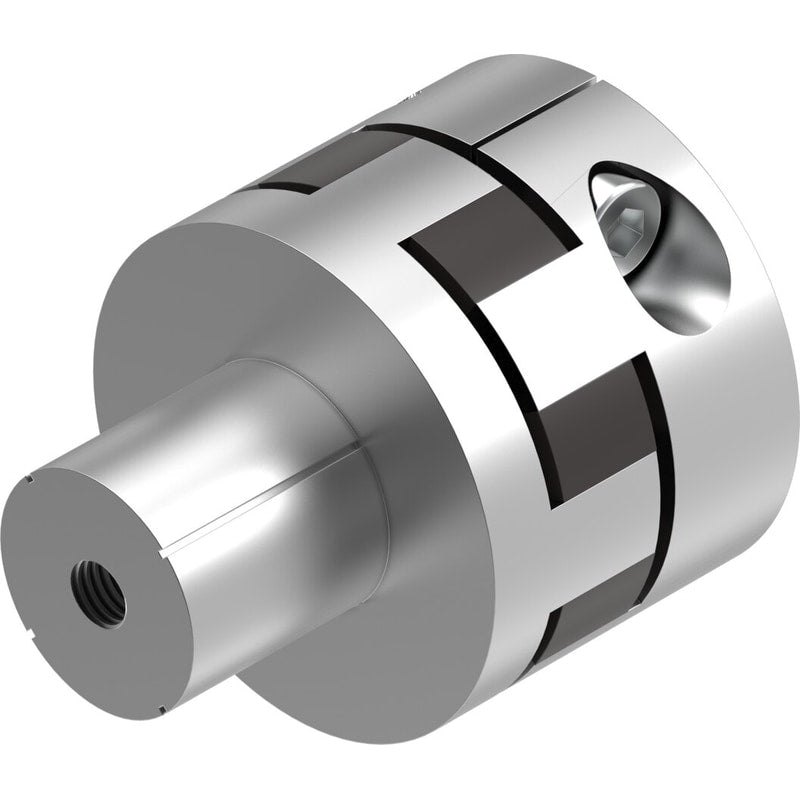

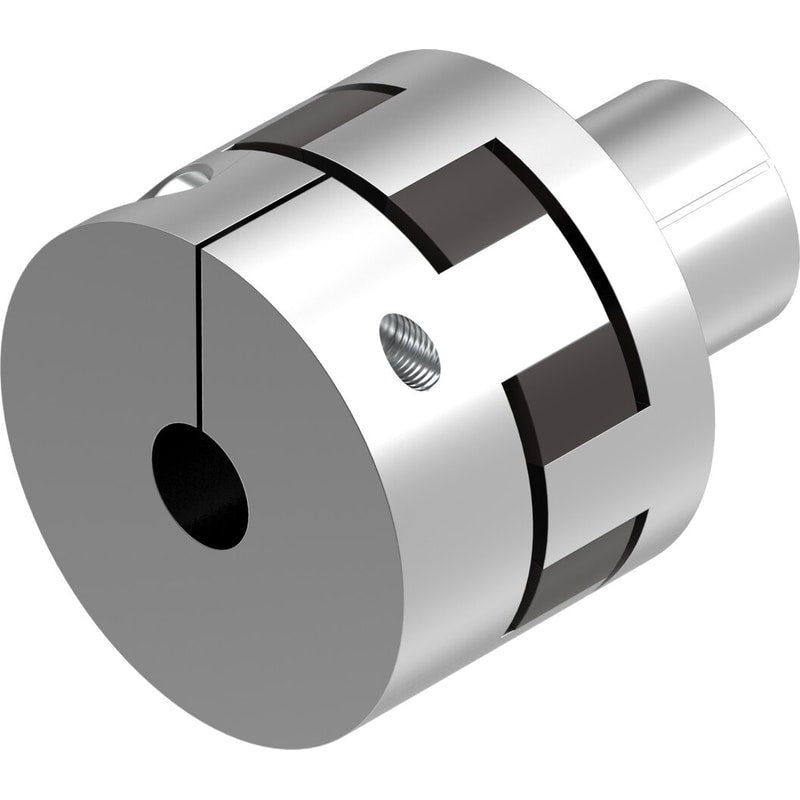

coupling EAMD-67-51-19-32X32-U drive component, which transmits the rotary motion of a stepper or servo motor Holder diameter 1=19 mm, Holder diameter 2=32 mm, Size=67, Assembly position=Any, Max. speed=4500 1/min
| Holder diameter 1 | 19 mm |
|---|---|
| Holder diameter 2 | 32 mm |
| Size | 67 |
| Nominal length | 51 mm |
| Assembly position | Any |
| Max. speed | 4,500 1/min |
| Storage temperature | '-25 ... 60 °C |
| Relative air humidity | 0 - 95 % |
| Ambient temperature | '-25 ... 60 °C |
| Mass moment of inertia | 374 kgmm2 |
| Transferable torque | 113 Nm |
| Product weight | 745 g |
| Materials note | Conforms to RoHS |
