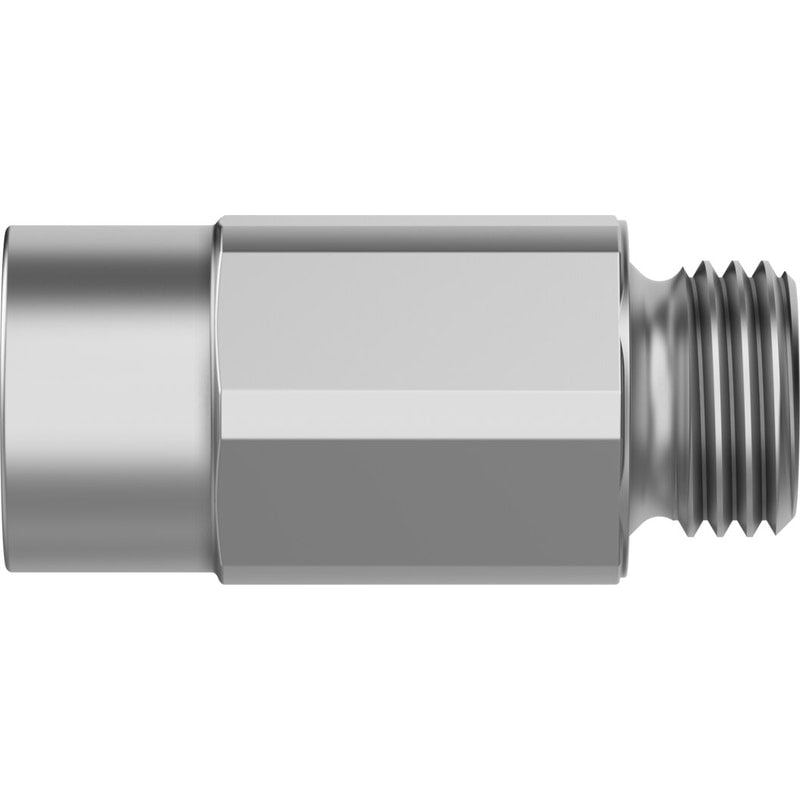

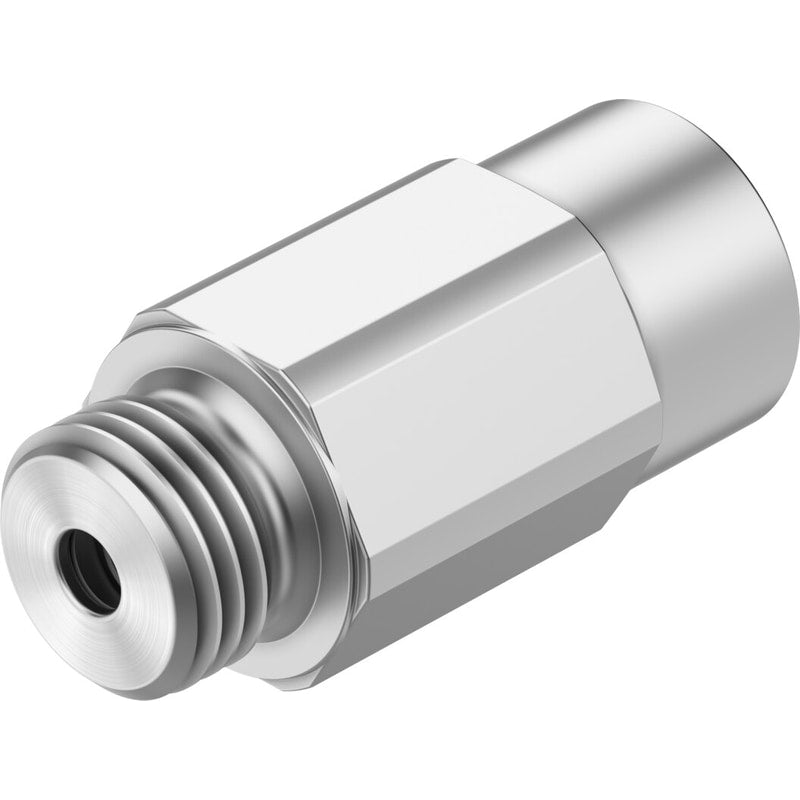

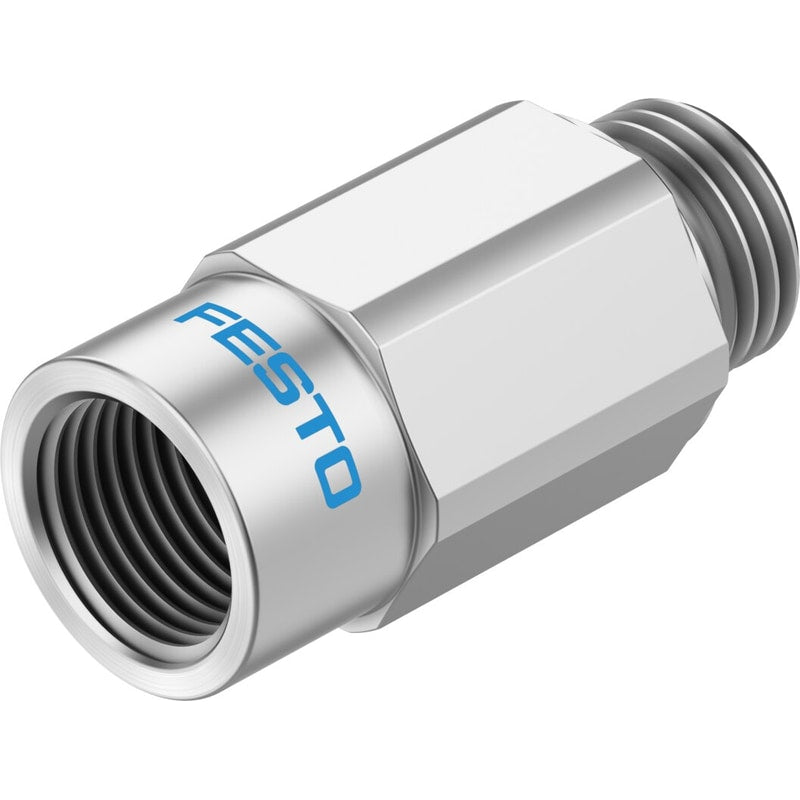

Vacuum security valve
ISV-3/8
33971
GTIN 4052568067793
Vendor Festo
Regular price
$74.18
Unit price
ISV-3/8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ISV-3/8
Regular price
$74.18
Unit price
ISV-3/8 is backordered and will ship as soon as it is back in stock.
vacuum security valve ISV-3/8 For maintenance of vacuum if one or more suction cups within a group fail to make contact with the workpiece. Size=G3/8, Ejector pulse suitability=8 bar, Assembly position=Any, Operating pressure=0 - 0,95 bar, Required suction rate at -0.5 bar=1,5 l/min
| Size | G3/8 |
|---|---|
| Ejector pulse suitability | 8 bar |
| Assembly position | Any |
| Operating pressure | 0 ... 0.95 bar |
| Required suction rate at -0.5 bar | 1.5 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Product weight | 33 g |
| Mounting type | Threaded |
| Pneumatic connection, port 1 | G3/8 |
| Pneumatic connection, port 2 | G3/8 |
| Material spring | High alloy steel |
