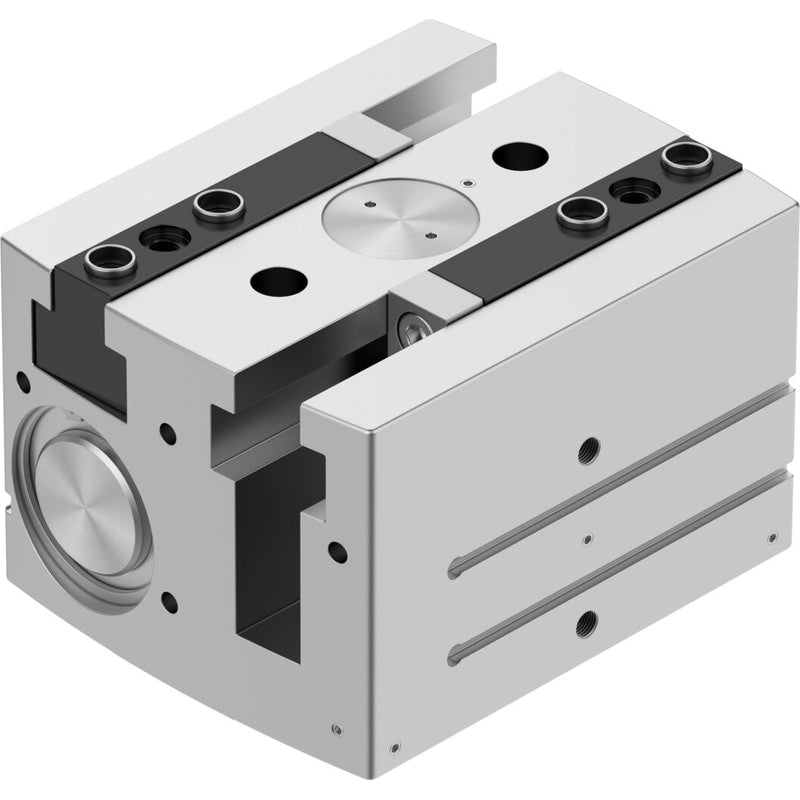

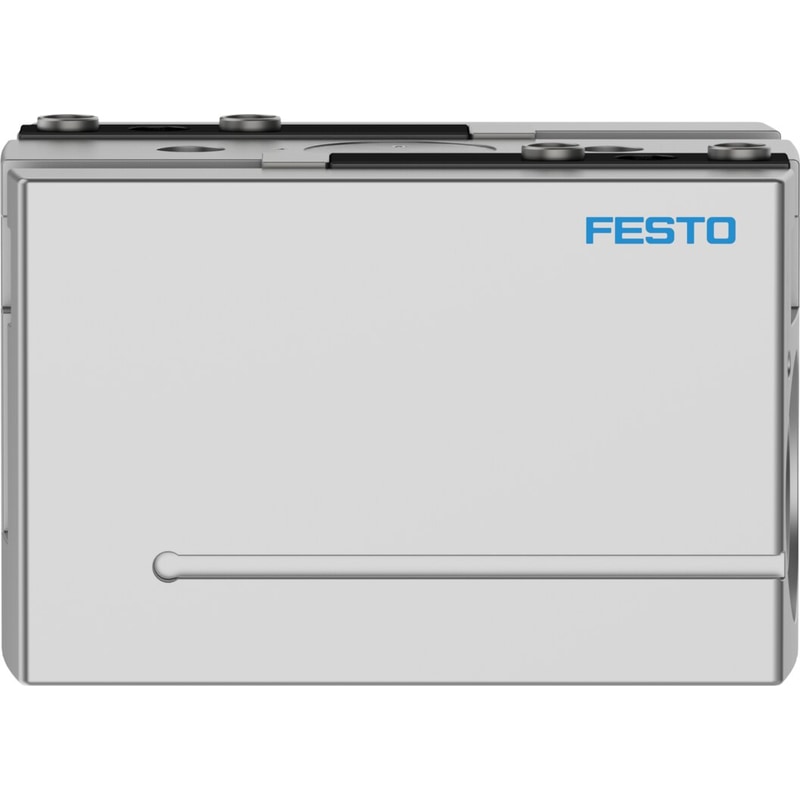

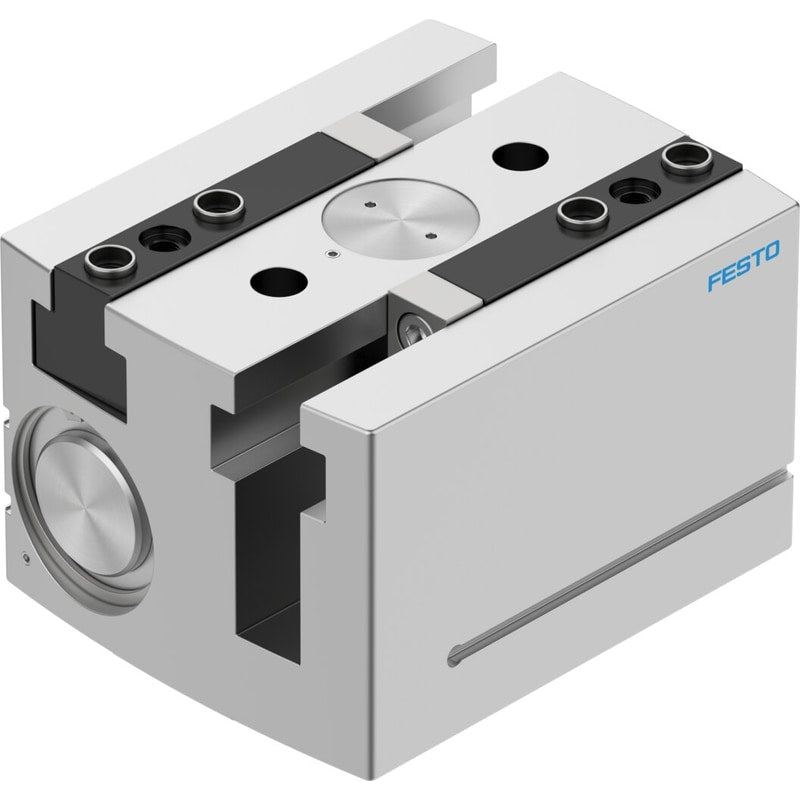

Parallel gripper
HGPL-63-60-A-B
3361492
GTIN 4052568269296
Vendor Festo
- Gripping force per gripper jaw at 6 bar, closing
- 1371 N
- Stroke per gripper jaw
- 60 mm
- Position sensing
- For proximity sensor
Regular price
$6,575.22
Unit price
HGPL-63-60-A-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HGPL-63-60-A-B
Regular price
$6,575.22
Unit price
HGPL-63-60-A-B is backordered and will ship as soon as it is back in stock.
| Size | 63 |
|---|---|
| Stroke per gripper jaw | 60 mm |
| Max. interchangeability | <0.2 mm |
| Max. gripper jaw angular play ax, ay | <0.2 deg |
| Max. gripper jaw backlash Sz | <0.05 mm |
| Rotational symmetry | ≤0.2 mm |
| Pneumatic gripper repetition accuracy | <0.03 mm |
| Number of gripper jaws | 2 |
| Actuator system | Pneumatic |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Gripper function | Parallel |
| Gripping force backup | Without |
| Structural design | Twin piston | Guide | Piston gate valve | T-shape | Gear rack/pinion |
| Position sensing | For proximity sensor |
| Symbol | 00991894 |
| Operating pressure | 3 bar ... 8 bar |
| Max. operating frequency of pneumatic gripper | <1 Hz |
| Min. opening time at 6 bar | 410 ms |
| Min. closing time at 6 bar | 330 ms |
| Max. mass per external gripper finger | 940 g |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | 5 °C ... 60 °C |
| Gripping force per gripper jaw at 6 bar, opening | 2466 N |
| Gripping force per gripper jaw at 6 bar, closing | 2742 N |
| Gripping force per gripper jaw at 6 bar, opening | 1233 N |
| Gripping force per gripper jaw at 6 bar, closing | 1371 N |
| Mass moment of inertia | 470.07 kgcm² |
| Maximum force on gripper jaw Fz, static | 9000 N |
| Maximum torque on gripper jaw, Mx static | 300 Nm |
| Maximum torque on gripper jaw, My static | 200 Nm |
| Maximum torque on gripper jaw, Mz static | 250 Nm |
| Relubrication interval for guidance elements | 5 MioCyc |
| Product weight | 10460 g |
| Type of mounting | Via through-hole and centering sleeve |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Housing material | Wrought aluminum alloy, smooth-anodized |
| Gripper jaw material | Hardened steel |
