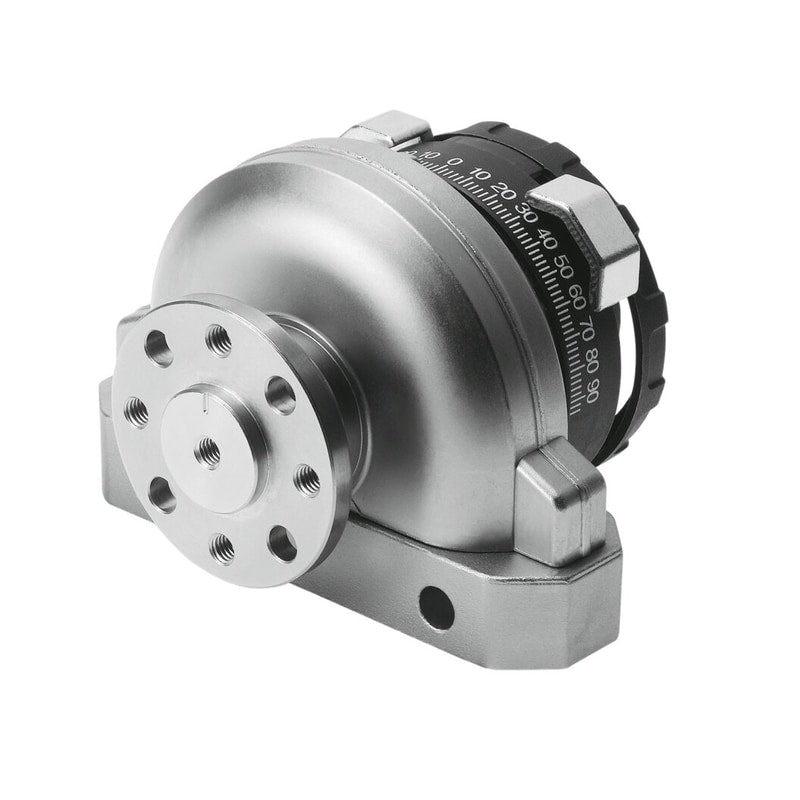

Quarter turn actuator
DSRL-10-180-P-FW
33296
GTIN 4052568115036
Vendor Festo
- Size
- 10
- Theoretical torque at 6 bar
- 0.5 Nm
- Swivel angle
- 0 deg - 180 deg
- Position sensing
- None
Regular price
$578.13
Unit price
DSRL-10-180-P-FW is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSRL-10-180-P-FW
Regular price
$578.13
Unit price
DSRL-10-180-P-FW is backordered and will ship as soon as it is back in stock.
semi-rotary drive DSRL-10-180-P-FW Rotary vane principle, infinitely adjustable swivel angle. The stop system is separate from the rotary vane so that any forces which occur are absorbed by the stop cams and cushioned via flexible plastic pads. Size=10, Cushioning angle=2,4 deg, Rotation angle adjustment range=0 - 180 deg, Swivel angle=0 - 180 deg, Cushioning=P: Flexible cushioning rings/plates at both ends
| Size | 10 |
|---|---|
| Cushioning angle | 2.4 deg |
| Rotation angle adjustment range | 0 ... 180 deg |
| Swivel angle | 0 ... 180 deg |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | Rotary vane |
| Position detection | No |
| Operating pressure | 2.5 ... 8 bar |
| Max. swivel frequency at 6 bar | 3 Hz |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Ambient temperature | '-10 ... 60 °C |
