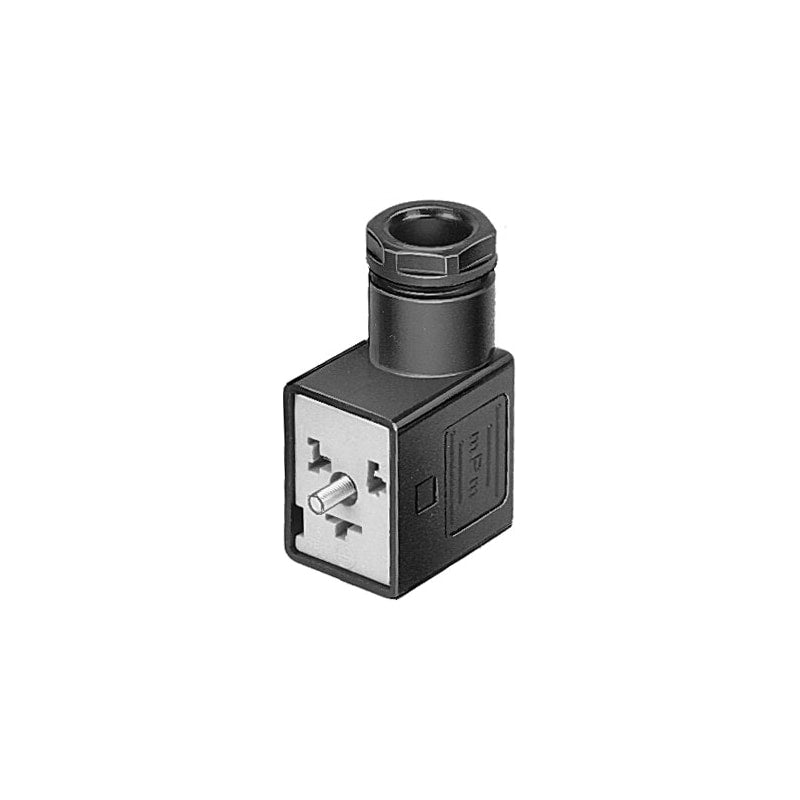

Plug socket
MSSD-V
33295
GTIN 4052568022983
Vendor Festo
- Electrical connection
- Form B - as per DIN EN 175301-803 - Rectangular design MSV
- Degree of protection
- IP65
Regular price
$4.70
Unit price
MSSD-V is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSSD-V
Regular price
$4.70
Unit price
MSSD-V is backordered and will ship as soon as it is back in stock.
| Type code | MSSD |
|---|---|
| Type of mounting | On air solenoid valve with M3 central screw |
| Product weight | 18 g |
| Electrical connection | 3-pinSocketForm BSocket, angledas per DIN EN 175301-803Rectangular design MSV |
| Cable diameter | 6 mm ... 8 mm |
| Nominal conductor cross section | ≤ 1.5 mm² |
| Degree of protection | IP65 |
| Ambient temperature | -25 °C ... 90 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Housing material | Polymer |
| Housing colour | Black |
| Mounting position | Any |
| Cable fitting | Pg9 |
