Coupling
EAMC-56-58-19-20
3181801
GTIN 4052568268770
Vendor Festo
Regular price
$219.39
Unit price
EAMC-56-58-19-20 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EAMC-56-58-19-20
Regular price
$219.39
Unit price
EAMC-56-58-19-20 is backordered and will ship as soon as it is back in stock.

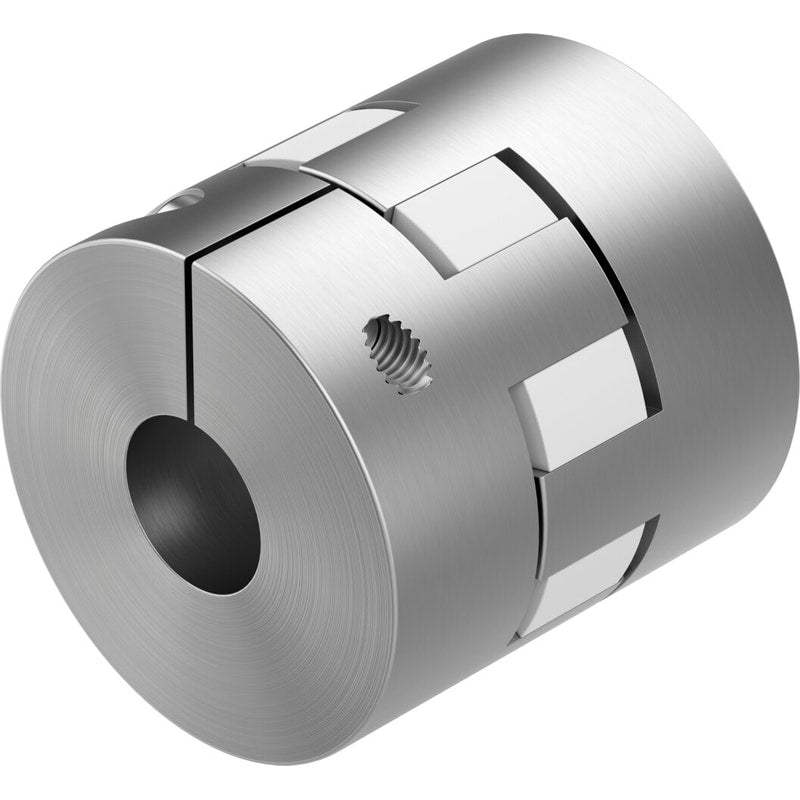

coupling EAMC-56-58-19-20 Holder diameter 1=19 mm, Holder diameter 2=20 mm, Size=56, Assembly position=Any, Max. speed=5500 1/min
| Holder diameter 1 | 19 mm |
|---|---|
| Holder diameter 2 | 20 mm |
| Size | 56 |
| Nominal length | 58 mm |
| Assembly position | Any |
| Max. speed | 5,500 1/min |
| Storage temperature | '-25 ... 60 °C |
| Relative air humidity | 0 - 95 % |
| Ambient temperature | '-25 ... 60 °C |
| Mass moment of inertia | 128 kgmm2 |
| Transferable torque | 60 Nm |
| Product weight | 284 g |
| Materials note | Conforms to RoHS |
