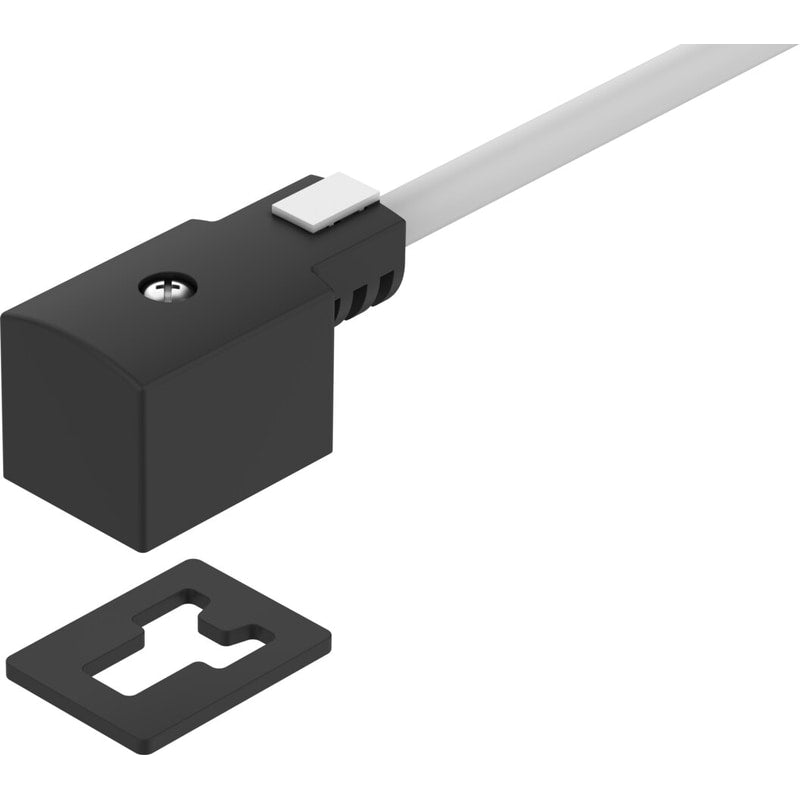

Plug socket with cable
KMV-1-230AC-5
30942
GTIN 4052568022877
Vendor Festo
- Electrical connection
- Form B
- Cable length
- 5 m
Regular price
$26.79
Unit price
KMV-1-230AC-5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KMV-1-230AC-5
Regular price
$26.79
Unit price
KMV-1-230AC-5 is backordered and will ship as soon as it is back in stock.
| Type code | KMV |
|---|---|
| Type of mounting | On air solenoid valve with M3 central screw |
| Product weight | 320 g |
| Electrical connection | SocketForm B |
| Nominal operating voltage AC | 230 V |
| Reverse polarity protection | for all electrical connections |
| Protective earth connection | Available |
| Cable length | 5 m |
| Cable diameter | 6 mm |
| Cable design | 3 x 0.75 mm² |
| Degree of protection | IP67as per IEC 60529 |
| Ambient temperature | -20 °C ... 80 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Material of cable sheath | PVC |
| Housing material | PC |
| Material of pin contacts | Bronze |
| Mounting position | Any |
