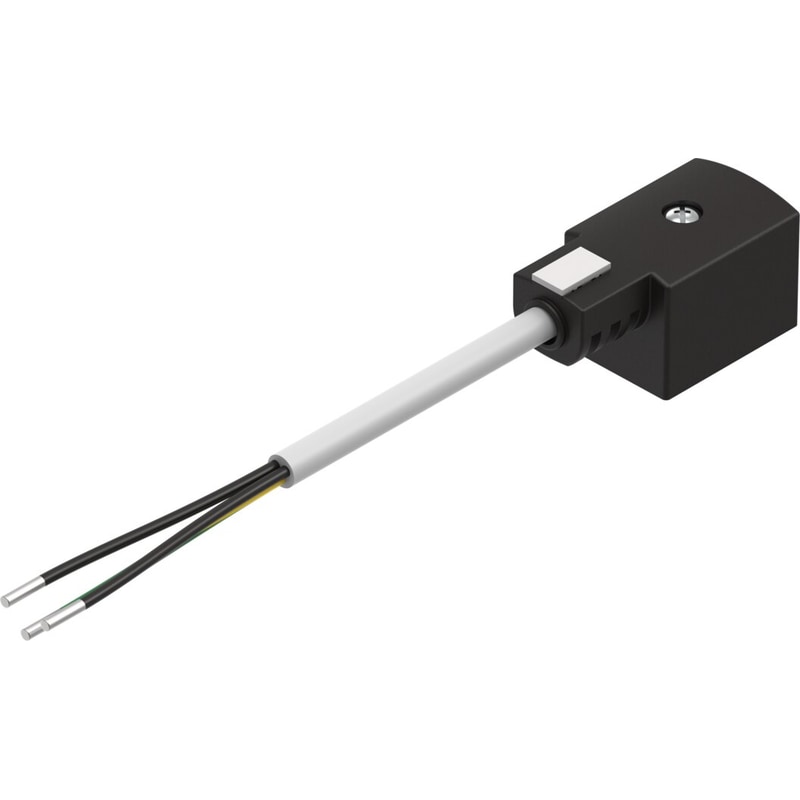

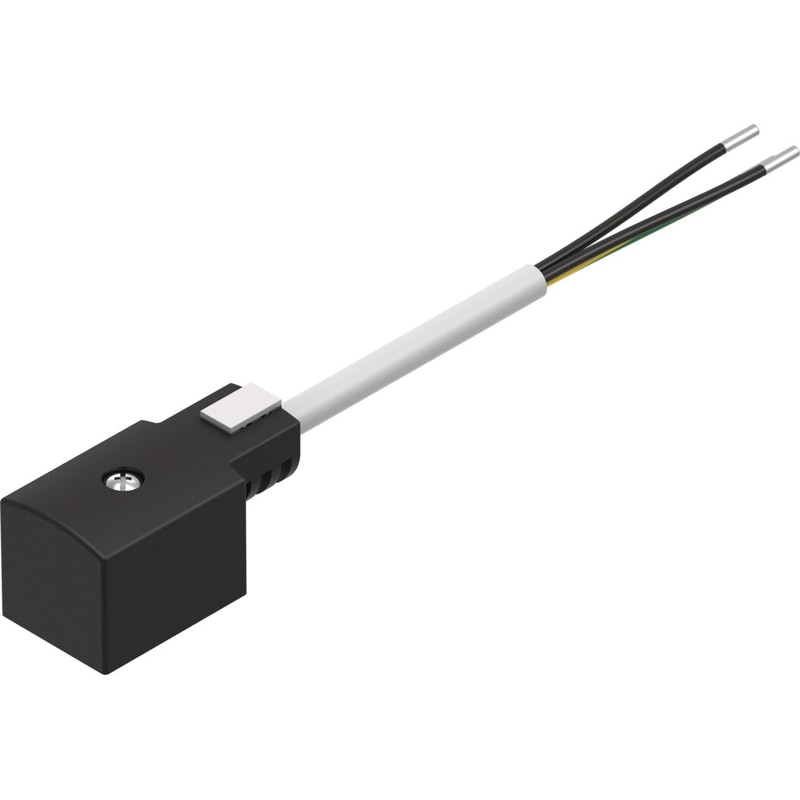

Plug socket with cable
KMF-1-230AC-5
30938
GTIN 4052568003784
Vendor Festo
- Electrical connection
- Socket
- Cable length
- 5 m
Regular price
$26.79
Unit price
KMF-1-230AC-5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KMF-1-230AC-5
Regular price
$26.79
Unit price
KMF-1-230AC-5 is backordered and will ship as soon as it is back in stock.
| Type code | KMF |
|---|---|
| Type of mounting | On air solenoid valve with M3 central screw |
| Product weight | 320 g |
| Electrical connection | Socket |
| Nominal operating voltage AC | 230 V |
| Protective earth connection | Available |
| Cable length | 5 m |
| Cable diameter | 6 mm |
| Cable design | 3 x 0.75 mm² |
| Degree of protection | IP67as per IEC 60529 |
| Ambient temperature | -20 °C ... 80 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Material of cable sheath | PVC |
| Housing material | PCPOM |
| Material of pin contacts | Bronze |
| Mounting position | Any |
