KMC-1-24DC-2,5-LED
30931
Vendor Festo
Regular price
$28.47
Unit price
KMC-1-24DC-2,5-LED is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KMC-1-24DC-2,5-LED
Regular price
$28.47
Unit price
KMC-1-24DC-2,5-LED is backordered and will ship as soon as it is back in stock.

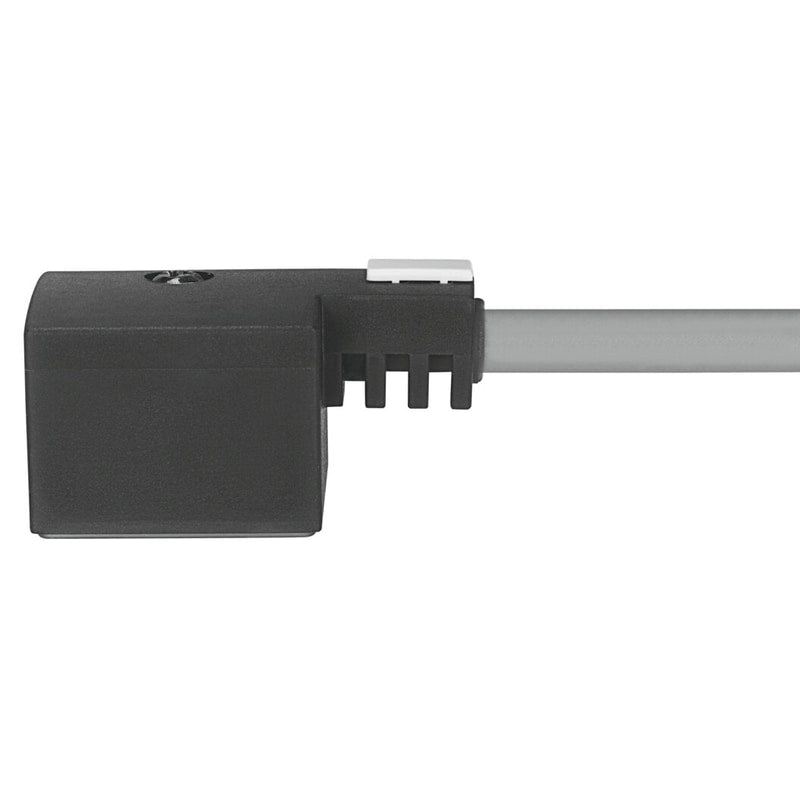

connecting cable KMC-1-24DC-2,5-LED Pre-assembled, for C and N1 solenoids. Operating status display=LED, Mounting type=On solenoid valve with M3 central screw, Assembly position=Any, Product weight=170 g, Electrical connection=(* Plug socket, * Design A)
| Operating status display | LED |
|---|---|
| Mounting type | On solenoid valve with M3 central screw |
| Assembly position | Any |
| Product weight | 170 g |
| Electrical connection | Plug socketPlug pattern type A to EN 175301-803 |
| Nominal operating voltage DC | 24 V |
| Polarity protected | for all electrical connections |
| Protective earth connection | Available |
| Cable length | 2.5 m |
| Cable diameter | 6 mm |
| Cable structure | 3x0,75 |
| Protection class | IP67to IEC 60529 |
| Ambient temperature | '-20 ... 80 °C |
