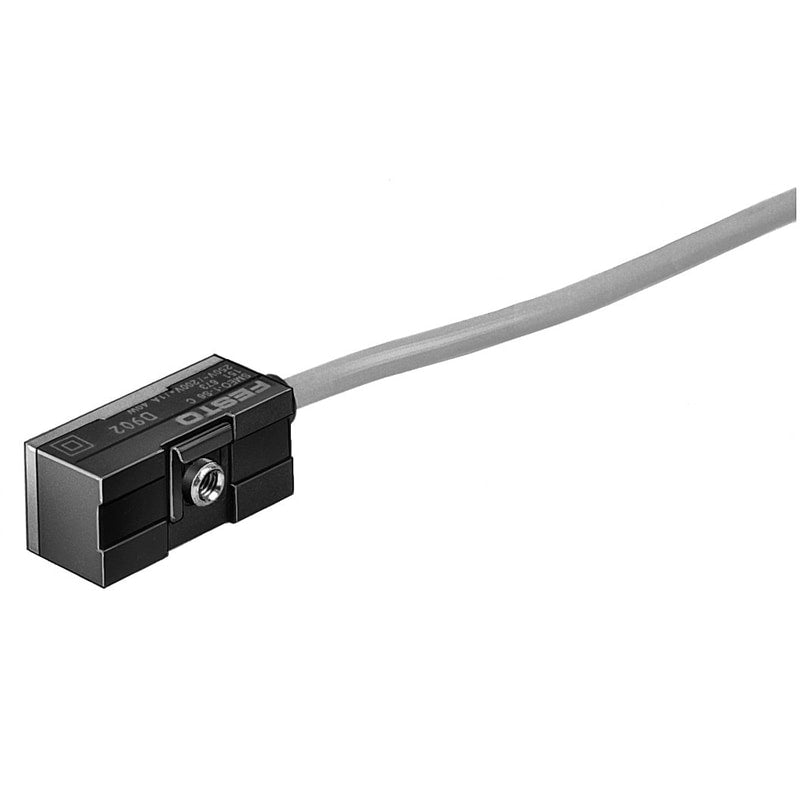

Proximity sensor
SMEO-1-B
30457
GTIN 4052568003685
Vendor Festo
- DC operating voltage range
- 0 V - 200 V
- Switching element function
- N/O contact
- Switching output
- Contact-based, bipolar
Regular price
$153.97
Unit price
SMEO-1-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SMEO-1-B
Regular price
$153.97
Unit price
SMEO-1-B is backordered and will ship as soon as it is back in stock.
proximity sensor SMEO-1-B Without mounting kit Design=Block design, Conforms to standard=DIN EN 60947-5-2, CE mark (see declaration of conformity)=to EU directive low-voltage devices, Materials note=Free of copper and PTFE, Measuring principle=Reed magnetic
| Design | Block design |
|---|---|
| Conforms to standard | DIN EN 60947-5-2 |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Materials note | Free of copper and PTFE |
| Measuring principle | Reed magnetic |
| Ambient temperature | '-20 ... 70 °C |
| Switch output | with contact, bipolar |
| Switching element function | Normally open contact |
| Reproducibility of switching value | '+/- 0,1 mm |
| Switch-on time | 0.5 ms |
| Switch-off time | 0.03 ms |
| Max. switching frequency | 500 Hz |
| Max. output current | 0.0416666666666667 |
