Sub-base
NAUE-1/4-NPT-1-ISO
30427
GTIN 4052568305215
Vendor Festo
Regular price
$110.70
Unit price
NAUE-1/4-NPT-1-ISO is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NAUE-1/4-NPT-1-ISO
Regular price
$110.70
Unit price
NAUE-1/4-NPT-1-ISO is backordered and will ship as soon as it is back in stock.

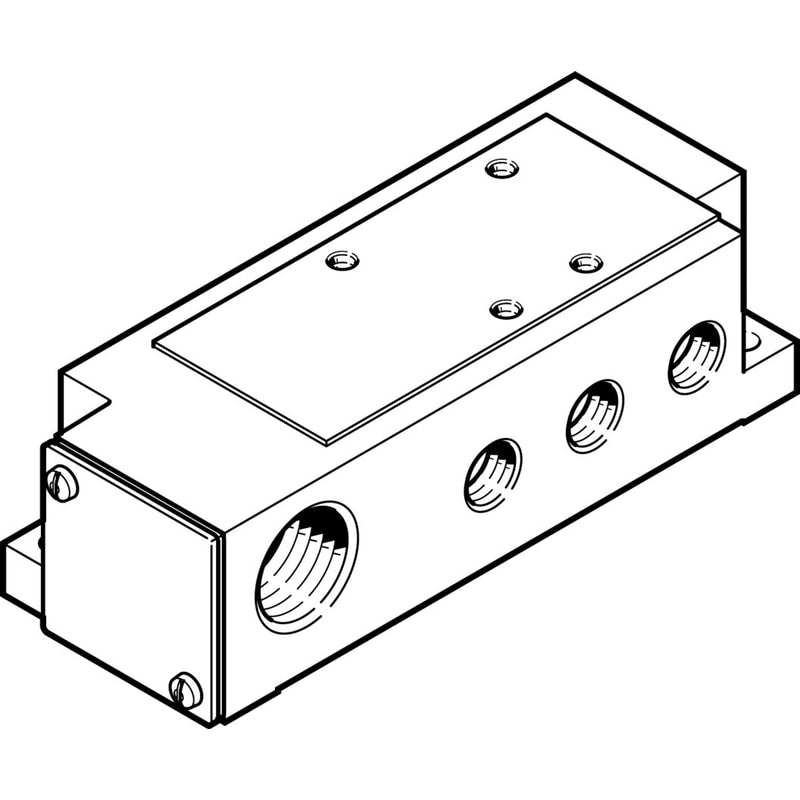

sub-base NAUE-1/4-NPT-1-ISO With port pattern in accordance with ISO 5599/I and pre-assembled integrated electrical connection in accordance with ISO 5599/II. Connections underneath. Operating pressure=0 - 16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Corrosion resistance classification CRC=2 - Moderate corrosion stress, Medium temperature=-10 - 60 °C, Protection class=IP65
| Operating pressure | 0 ... 16 bar |
|---|---|
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Medium temperature | '-10 ... 60 °C |
| Protection class | IP65 |
| Ambient temperature | '-10 ... 60 °C |
| Authorisation | UL - Recognized (OL) |
| Mounting type | with through hole |
| Pilot air port 12 | NPTF1/8-27 |
| Pilot air port 14 | NPTF1/8-27 |
| Pneumatic ports 3/5 combined | NPT1/4-18 |
| Pneumatic connection, port 1 | NPT1/4-18 |
| Pneumatic connection, port 2 | NPT1/4-18 |
