Sub-base
NASE-1/4-NPT-1-ISO
30426
GTIN 4052568305208
Vendor Festo
Regular price
$87.94
Unit price
NASE-1/4-NPT-1-ISO is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NASE-1/4-NPT-1-ISO
Regular price
$87.94
Unit price
NASE-1/4-NPT-1-ISO is backordered and will ship as soon as it is back in stock.

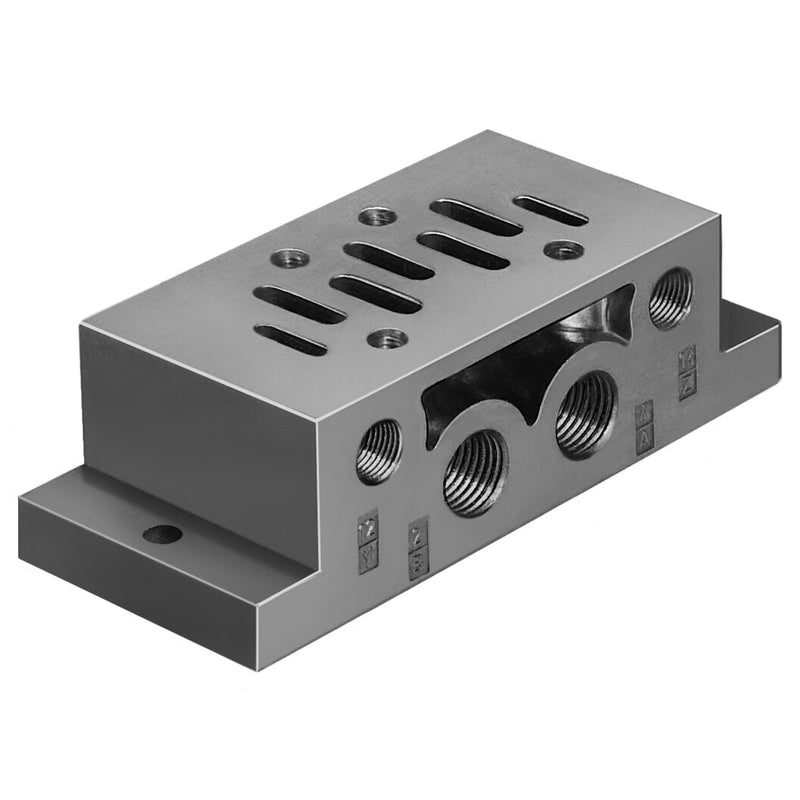

sub-base NASE-1/4-NPT-1-ISO With port pattern in accordance with ISO 5599/I and pre-assembled integrated electrical connection in accordance with ISO 5599/II Connections at side. Length=6 mm, Operating pressure=0 - 16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Corrosion resistance classification CRC=2 - Moderate corrosion stress, Medium temperature=-10 - 60 °C
| Length | 6 mm |
|---|---|
| Operating pressure | 0 ... 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Medium temperature | '-10 ... 60 °C |
| Protection class | IP65 |
| Ambient temperature | '-10 ... 60 °C |
| Authorisation | UL - Recognized (OL) |
| Mounting method for sub-base | with through hole |
| Mounting method for valve | Threaded |
| Pneumatic connection, port 1 | NPT1/4-18 |
| Pneumatic connection, port 2 | NPT1/4-18 |
| Pneumatic connection, port 4 | NPT1/4-18 |
