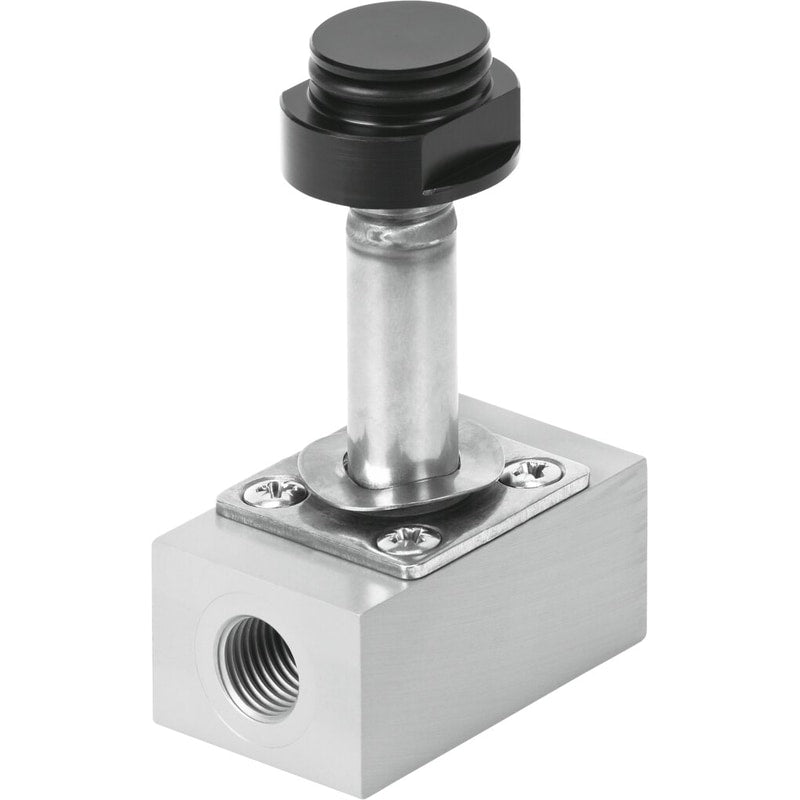

Pneumatic valve
VOFD-L12T-M32-MN-G14-8-F19A
3014556
GTIN 4052568268633
Vendor Festo
- Valve function
- 3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 52 l/min
- Pneumatic connection 1
- G1/4
- Operating pressure
- 0 bar - 8 bar
Regular price
$227.38
Unit price
VOFD-L12T-M32-MN-G14-8-F19A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VOFD-L12T-M32-MN-G14-8-F19A
Regular price
$227.38
Unit price
VOFD-L12T-M32-MN-G14-8-F19A is backordered and will ship as soon as it is back in stock.
valve VOFD-L12T-M32-MN-G14-8-F19A Valve function=3/2 closed, monostable, Type of actuation=electrical, Width=50 mm, Standard nominal flow rate=52 l/min, Operating pressure=0 - 8 bar
| Valve function | 3/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 50 mm |
| Standard nominal flow rate | 52 l/min |
| Operating pressure | 0 ... 8 bar |
| Design structure | Directly actuated poppet valve |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Nominal size | 1.2 mm |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | None |
| Type of piloting | direct |
