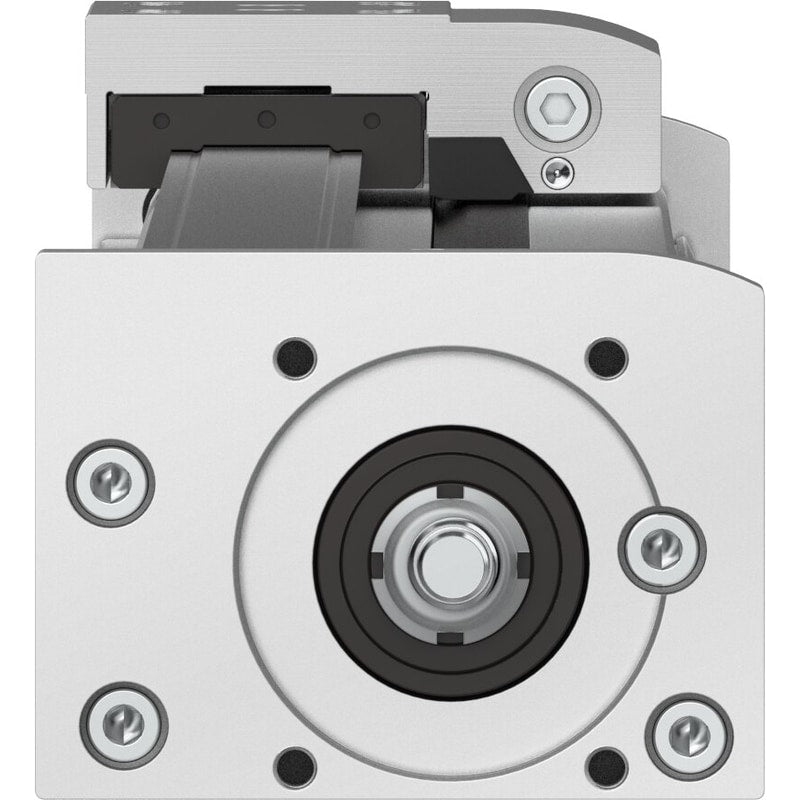

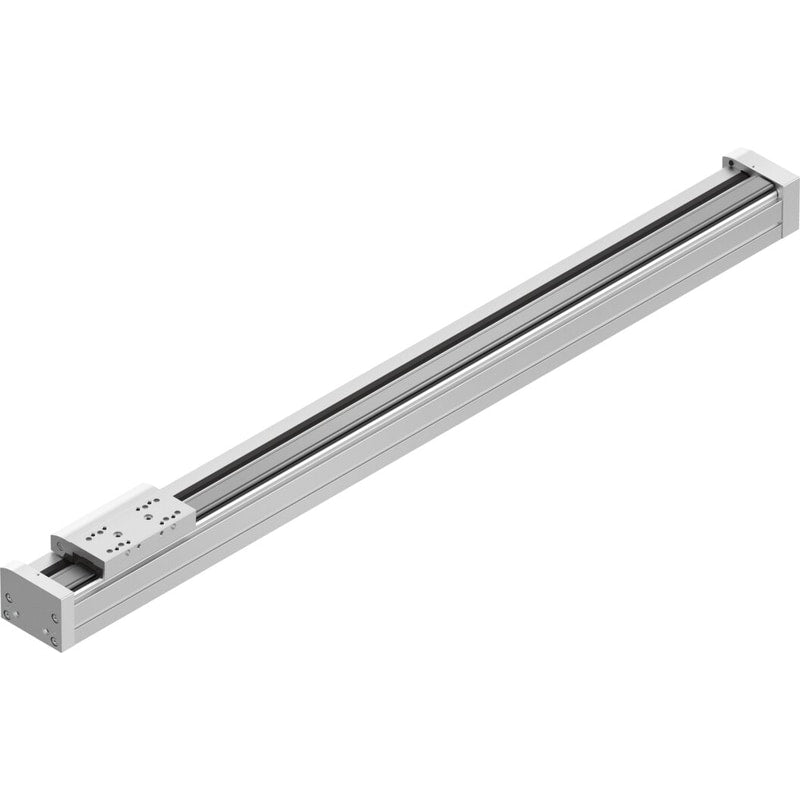

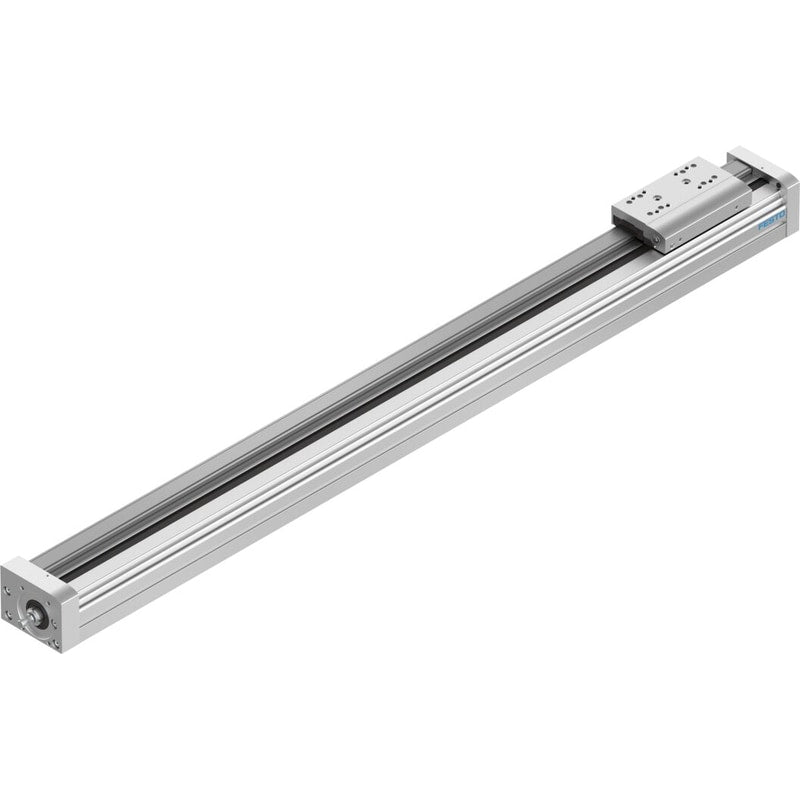

Ball screw axis
EGC-80-800-BS-10P-KF-0H-ML-GK
3013538
GTIN 4052568268404
Vendor Festo
- Size
- 80
- Max. feed force Fx
- 650 N
- Repetition accuracy
- ±0.02 mm
- Working stroke
- 800 mm
Regular price
$3,009.23
Unit price
EGC-80-800-BS-10P-KF-0H-ML-GK is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EGC-80-800-BS-10P-KF-0H-ML-GK
Regular price
$3,009.23
Unit price
EGC-80-800-BS-10P-KF-0H-ML-GK is backordered and will ship as soon as it is back in stock.
spindle axis EGC-80-800-BS-10P-KF-0H-ML-GK With recirculating ball bearing guide Working stroke=800 mm, Size=80, Stroke reserve=0 mm, Spindle diameter=15 mm, Spindle pitch=10 mm/U
| Working stroke | 800 mm |
|---|---|
| Size | 80 |
| Stroke reserve | 0 mm |
| Spindle diameter | 15 mm |
| Spindle pitch | 10 mm/U |
| Assembly position | Any |
| Guide | Recirculating ball bearing guide |
| Design structure | Electromechanical linear axiswith recirculating ball bearing spindle |
| Motor type | Stepper motorServomotor |
| Spindle type | Ball screw spindle |
| Max. acceleration | 15 m/s2 |
| Max. speed | 0.5 ... 0.75 m/s |
| Repetition accuracy | ±0,02 mm |
