EGC-80-1000-TB-KF-0H-GK
3013357
Vendor Festo
Regular price
$2,580.64
Unit price
EGC-80-1000-TB-KF-0H-GK is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EGC-80-1000-TB-KF-0H-GK
Regular price
$2,580.64
Unit price
EGC-80-1000-TB-KF-0H-GK is backordered and will ship as soon as it is back in stock.

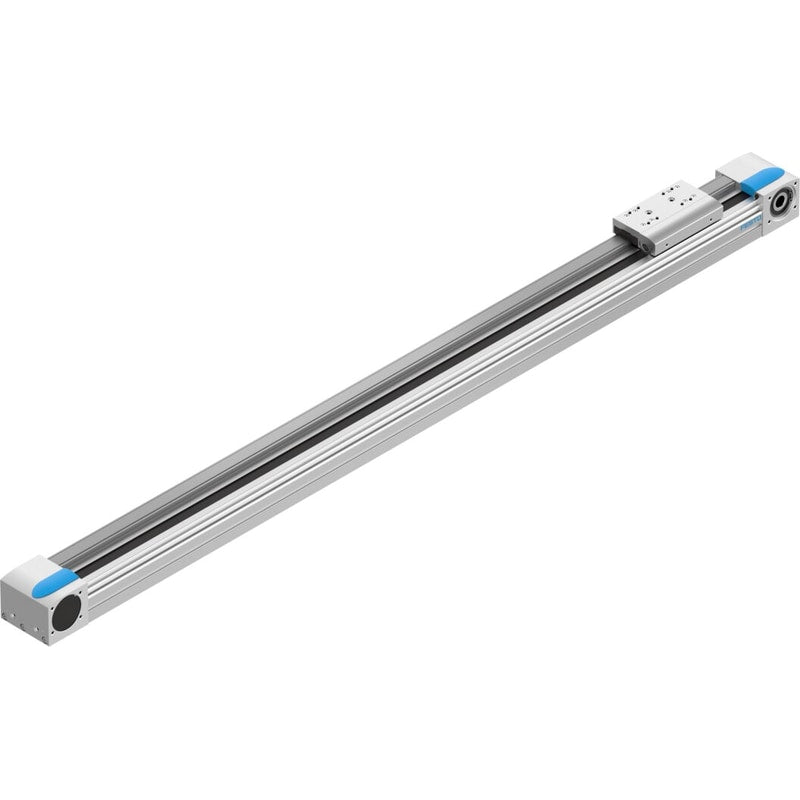

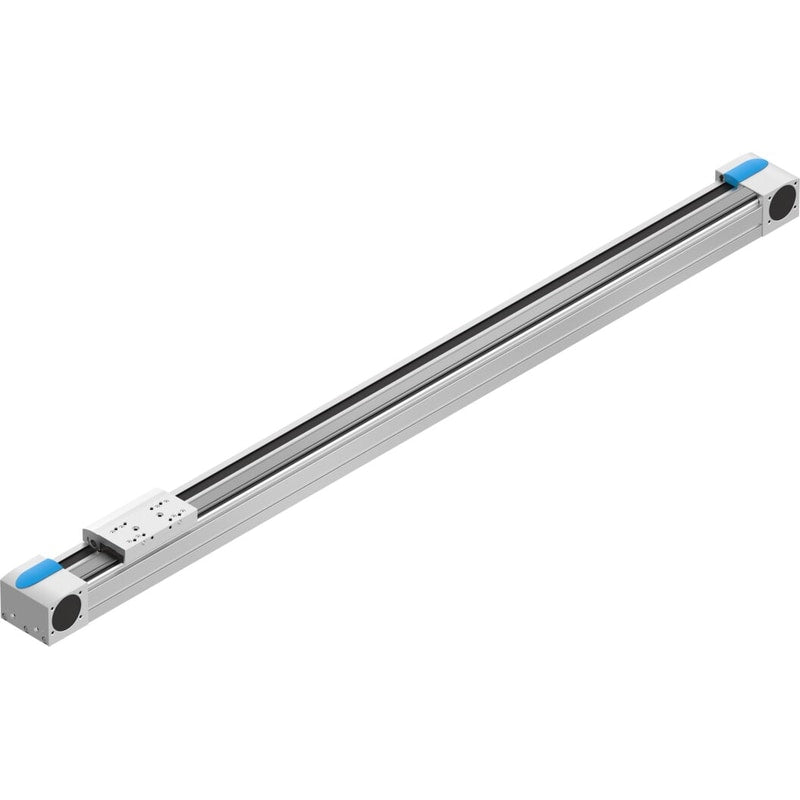

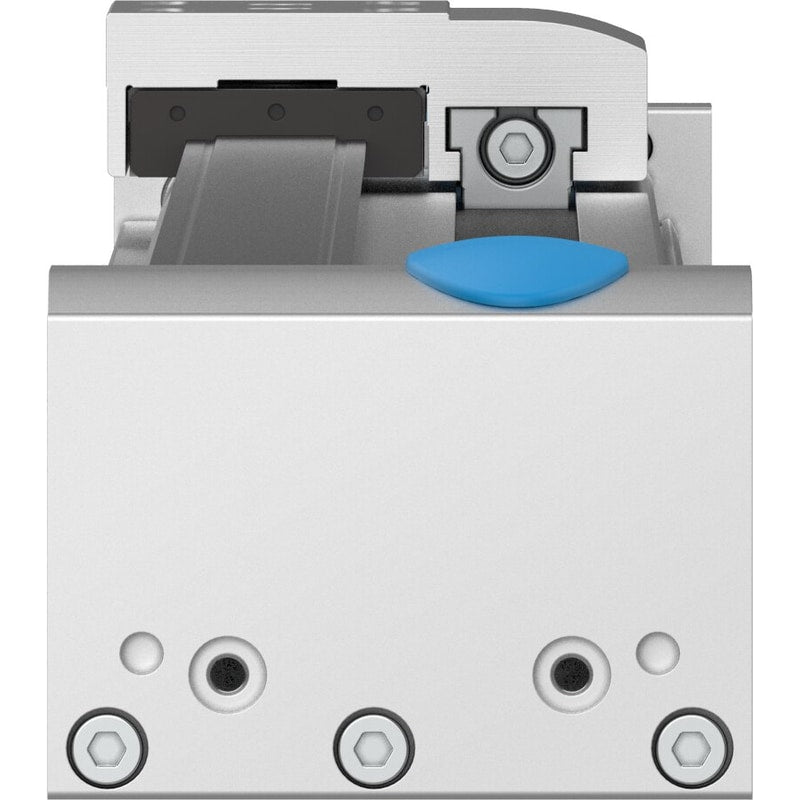

toothed belt axis EGC-80-1000-TB-KF-0H-GK With recirculating ball bearing guide Effective diameter of drive pinion=28,65 mm, Working stroke=1000 mm, Size=80, Stroke reserve=0 mm, Toothed-belt stretch=0,24 %
| Effective diameter of drive pinion | 28.65 mm |
|---|---|
| Working stroke | 1,000 mm |
| Size | 80 |
| Stroke reserve | 0 mm |
| Toothed-belt stretch | 0.0024 |
| Toothed-belt pitch | 3 mm |
| Assembly position | Any |
| Guide | Recirculating ball bearing guide |
| Design structure | Electromechanical linear axisWith toothed belt |
| Motor type | Stepper motorServomotor |
| Max. acceleration | 50 m/s2 |
| Max. speed | 5 m/s |
| Repetition accuracy | ±0,08 mm |
